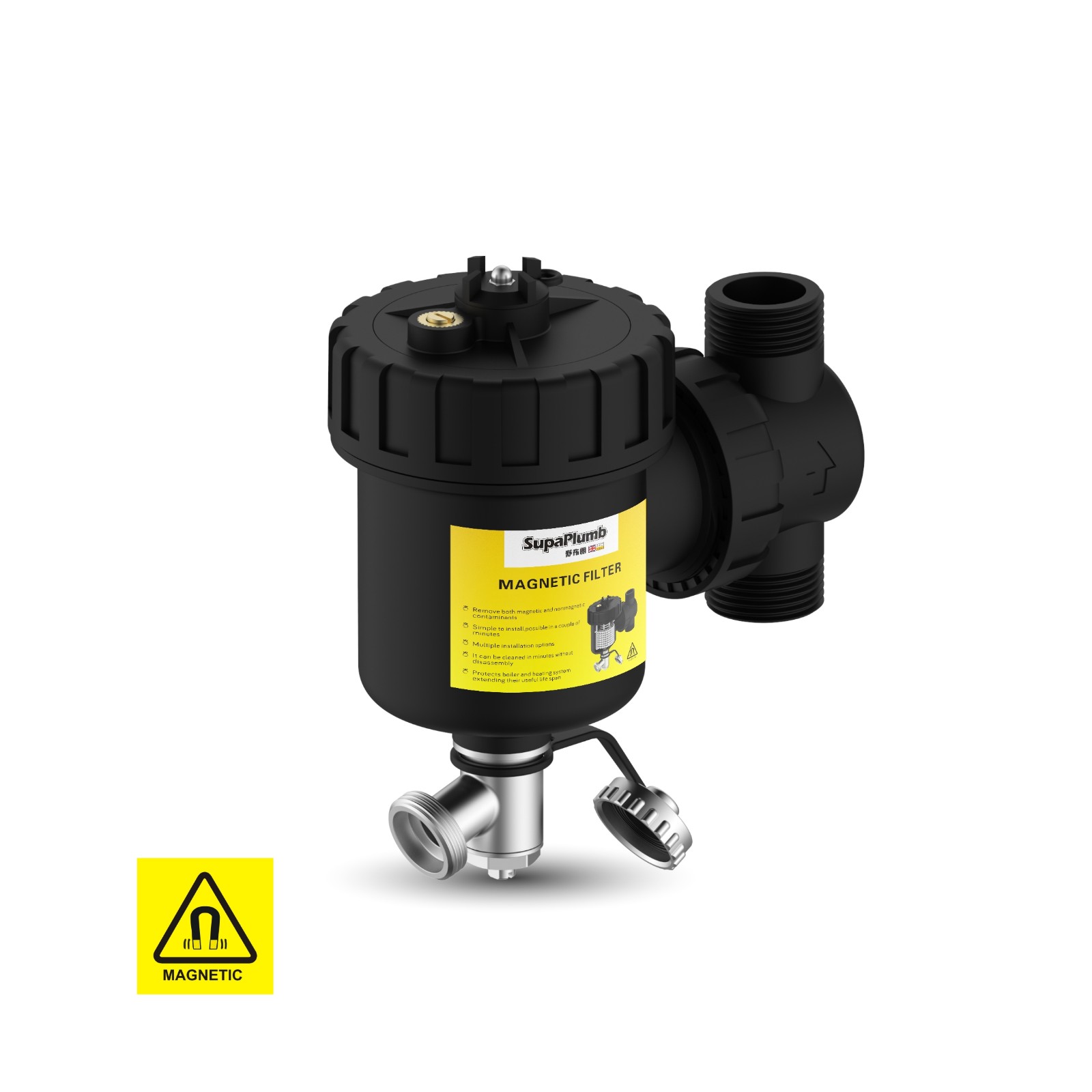

Hydronic Magnetic Dirt Separator
This device employs hydrocyclonic action to efficiently eliminate and hold both magnetic and non-magnetic pollutants from heating systems. It safeguards boilers and heating systems by prolonging their operational life.
Technical Specifications
Overview
High-Efficiency Hydronic Protection

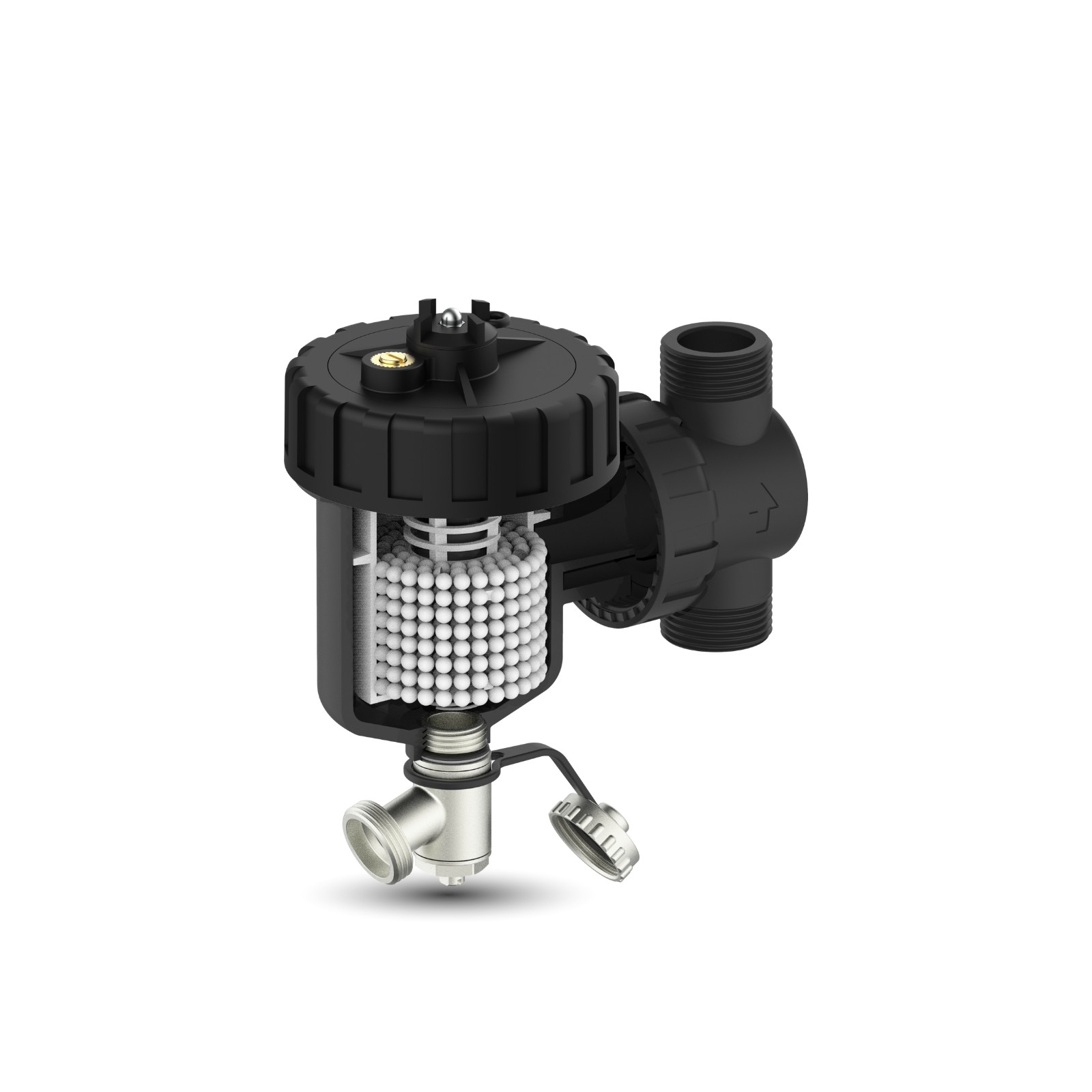

This hydronic magnetic dirt separator is engineered to protect heating and cooling systems by capturing both magnetic and non-magnetic contaminants. By utilizing a powerful internal magnet and a specialized separation chamber, it effectively removes iron oxide sludge, sand, and scale from the system flow. This process prevents damage to sensitive components like pumps and valves, ultimately improving system efficiency and extending the operational lifespan of your boiler or heat exchanger.
Technical Specifications
- Connection Size
- G1"
- Drain Valve Size
- G3/4"
Dimensions
Physical Dimensions
| Measurement | Value (mm) |
|---|---|
| Overall Height | 180 |
| Body Height | 139 |
| Width | 161 |
| Connection Height | 96 |
Features & Benefits
Maintenance Features
- Removable magnetic rod for easy cleaning
- Quick-clean design without full disassembly
- Drain valve for debris removal
System Compatibility
Hydronic HeatingCooling SystemsBoiler Protection
- Installation Options
- Horizontal pipesVertical pipesInline installation
