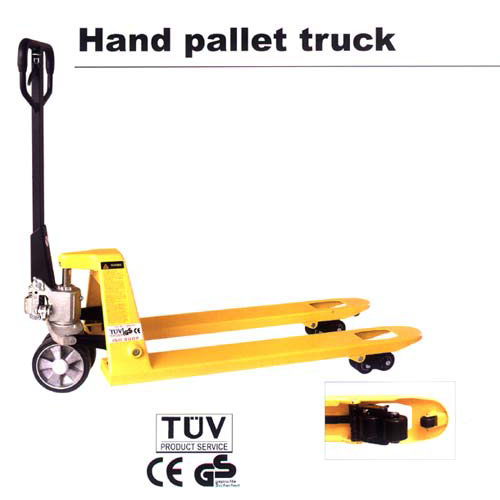

Hydraulic Pallet Truck
This pallet truck features a full hydraulic system and a bullet connection between the steering shaft and pump piston. It has a special lowering valve to control the rate of descent and an overload bypass valve.
Technical Specifications
Overview
Reliable Hydraulic Material Handling
This heavy-duty hydraulic pallet truck is designed for efficient, long-term use in demanding warehouse and industrial environments. Featuring a robust full hydraulic system, it offers a 210-degree turning radius for superior maneuverability in tight spaces. The unit is engineered for durability with grease fittings at all pivotal points and an overload by-pass valve to ensure safe and reliable operation.
Performance Metrics
Load Capacity
2,500 kg
Max Capacity
Lift Performance
- Number of pump strokes: 10
- Lift height per stroke: 12mm
Technical Dimensions
Standard Specifications
| Specification | Available Options |
|---|---|
| Total lift height (mm) | 200 / 190 / 150 / 142 |
| Lowered fork height (mm) | 85 / 75 / 60 / 52 |
| Fork length (mm) | 900 / 980 / 1000 / 1100 / 1150 / 1220 |
| Width over forks (mm) | 520 / 550 / 650 / 680 / 685 |
Construction & Features
Certifications
CETÜV
Key Features
- Full hydraulic system
- Leak-proof hydraulic design
- Overload by-pass valve
- Grease fittings at pivotal points
- 210-degree turning radius
- Wheel Options
- NylonPolyurethaneRubber
