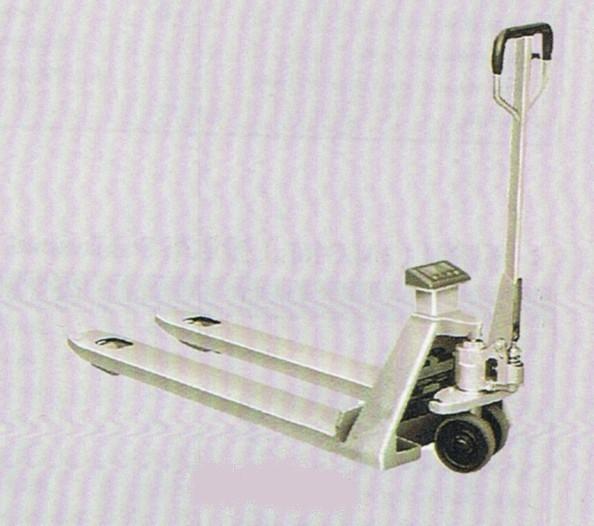

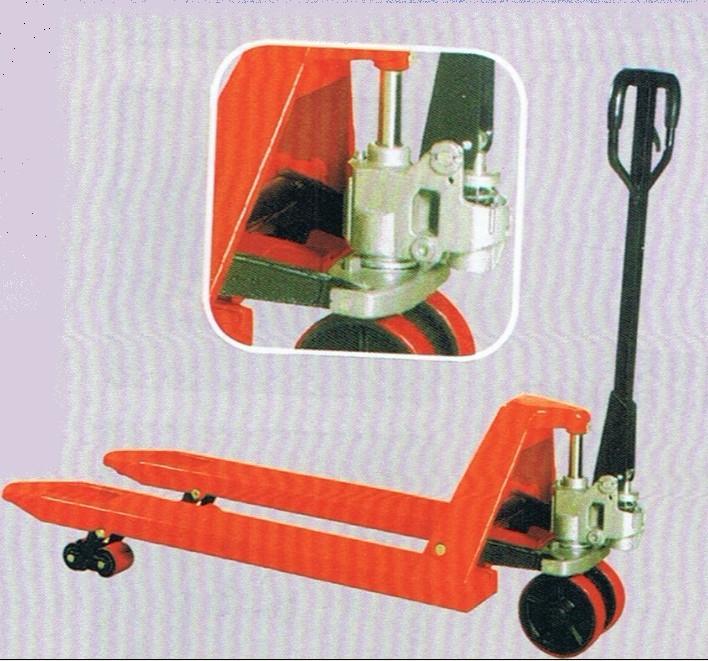

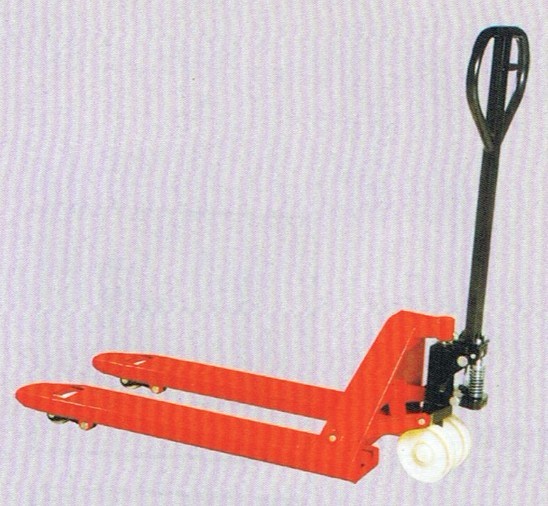

Hydraulic Pallet Truck
This hydraulic pallet truck is designed for efficient and reliable material handling. It features a robust hydraulic system for smooth lifting of heavy pallets and a user-friendly handle for effortless maneuverability.
Technical Specifications
Overview
Professional Material Handling Solution
This heavy-duty hand-hydraulic pallet truck is engineered for efficient material handling in warehouses, factories, and distribution centers. Featuring a robust steel frame and a high-quality hydraulic pump, it ensures smooth lifting and reliable performance for daily operations. The unit offers versatile configurations to accommodate various pallet sizes and load requirements, making it an essential tool for loading, unloading, and transporting palletized goods.
Performance
Lifting Height Range
95 mm
Min Max Height
110 mm
Max Max Height
- Available Load Capacities
- 1000kg2000kg2500kg3000kg
Design & Dimensions
Fork Specifications
| Dimension Type | Available Options |
|---|---|
| Outside Distance | 510, 450, 550/685 mm |
| Fork Length | 910, 900, 1150, 1220 mm |
| Max Fork Height | 180/170, 205/195, 195/185 mm |
| Lowest Fork Height | 85/75 mm |
Wheel Material Options
- Nylon
- Rubber
- PolyUrethane
Logistics
Available Truck Weights
- 60kg
- 75kg
- 80kg
- 85kg
- Packing QTY (20' FCL)
- 144 sets180 sets
Features
- Customization Options
- Yes
