Hydraulic Hose Crimping Machine

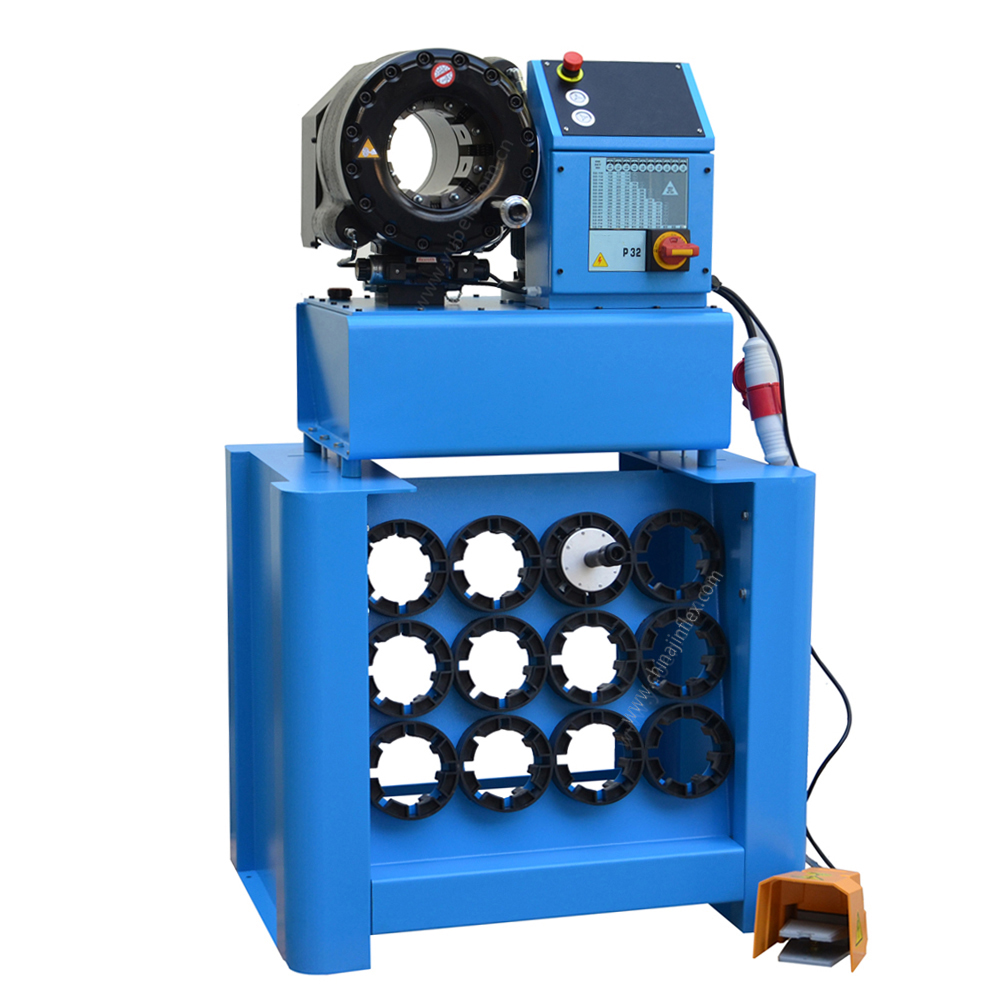

This hydraulic hose crimping machine is designed for various industrial applications, ensuring consistent and reliable connections. It features a control panel for precise adjustment of crimping parameters and a foot pedal for hands-free operation.
Technical Specifications
Overview
Industrial Hydraulic Hose Crimping Solution
This high-performance hydraulic hose crimping machine is engineered for precision and efficiency in industrial hose assembly. With a robust 2000KN crimping force and the capability to process between 700 and 850 pieces per hour, it is designed to meet demanding production schedules. The system supports a wide range of hose sizes from 1/4" to 2", making it a versatile tool for various hydraulic applications.
Performance Metrics
Crimping Force
2,000 KN
Crimping Force
- Production Capability
- 850 pcs/hour
Technical Specifications
- Crimping Range
- 10-87mm
- Supported Hose Sizes
- 1/4" - 2"
- Maximum Opening
- 33 mm
- Dies Included
- 9 sets
- Control System
- MS/UC
Power and Dimensions
Motor Power Options
- 4KW
- 5KW
- Machine Dimensions
- 760 x 560 x 800 mm
- Machine Weight
- 265 kg
