Technical Specifications
Product Overview
Professional HVAC Disconnect Solution

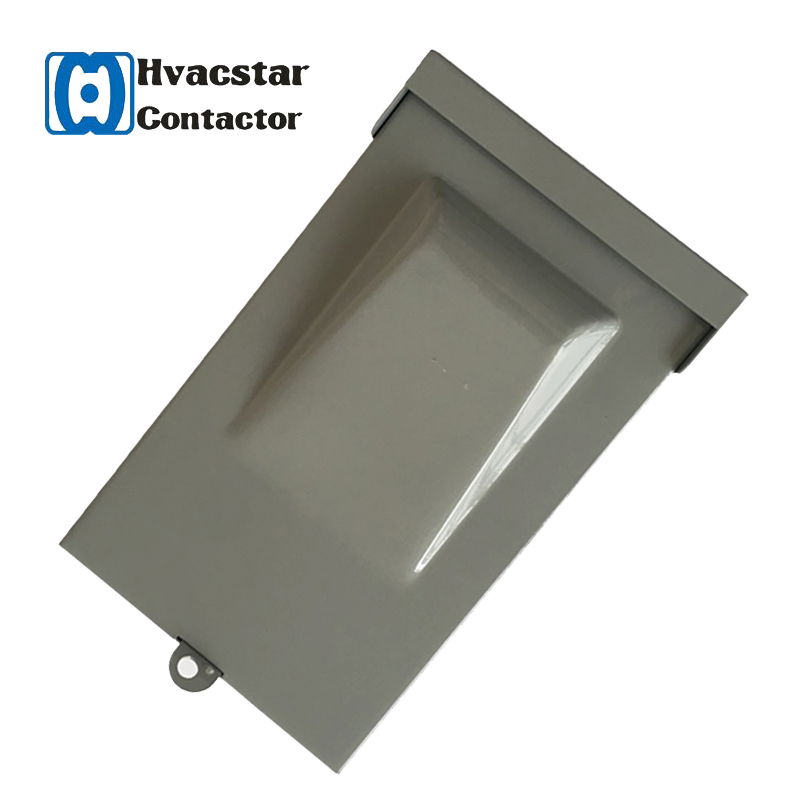

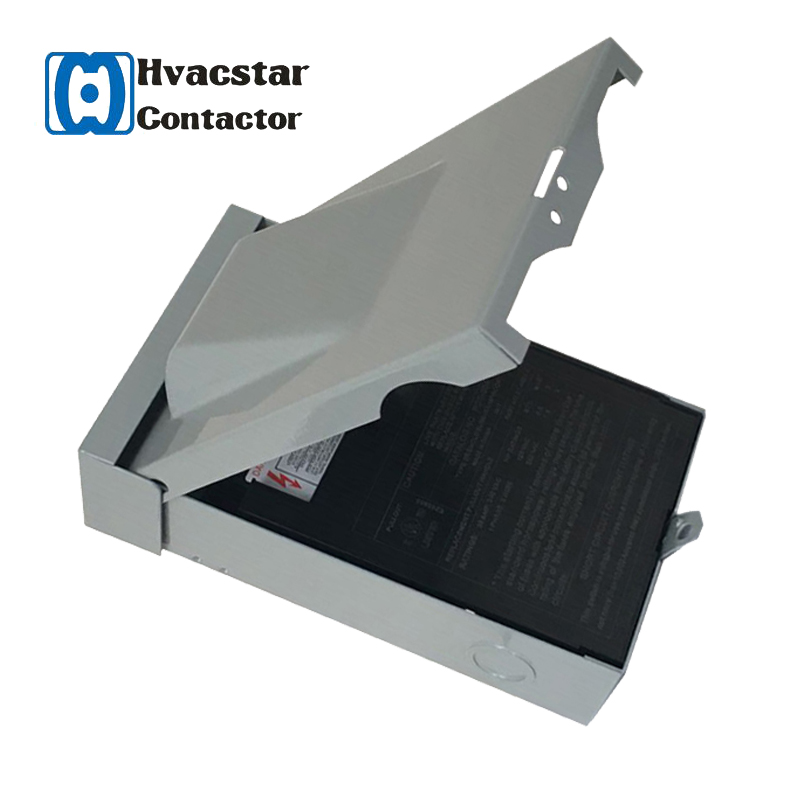

This heavy-duty, non-fused disconnect box is designed for reliable power control in HVAC systems and air conditioning units. Featuring a durable metal enclosure with NEMA 3R rain-proof protection, it is built to withstand outdoor environmental conditions. The integrated pullout handle ensures safe maintenance procedures, preventing unauthorized operation while providing a clear visual indicator of power status.
Technical Specifications
Electrical Ratings
80 A
Amperage
240 VAC
Voltage
Performance Details
| Feature | Specification |
|---|---|
| Phase | 1 Phase |
| Configuration | 3 Wire |
| Enclosure Type | NEMA 3R (Rain-proof) |
| Short Circuit Rating | 10,000 RMS Amperes |
Safety & Features
Key Safety Features
- Pullout handle storage in OFF position prevents loss
- Protective shield interlock prevents removal while powered
- Non-fused design for direct circuit control
- Outdoor-rated metal construction
Ordering & Logistics
Service & Terms
| Category | Details |
|---|---|
| Customization | OEM/ODM Available |
| Lead Time | 15-20 Days |
| Quality Assurance | 100% self-inspection and testing |
| Payment Terms | 30% deposit, balance against B/L |
