Technical Specifications
Product Overview

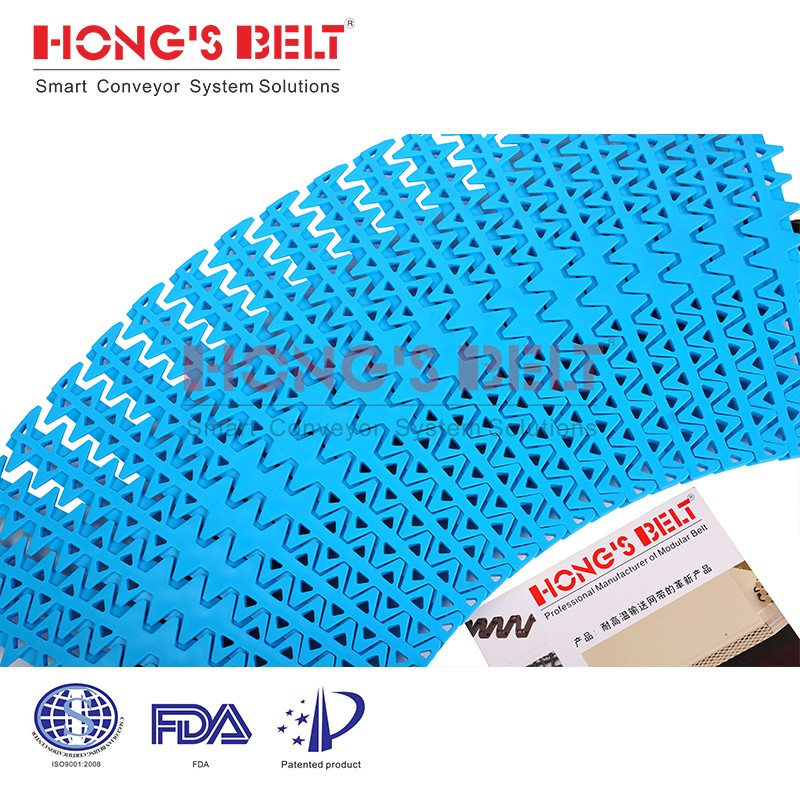

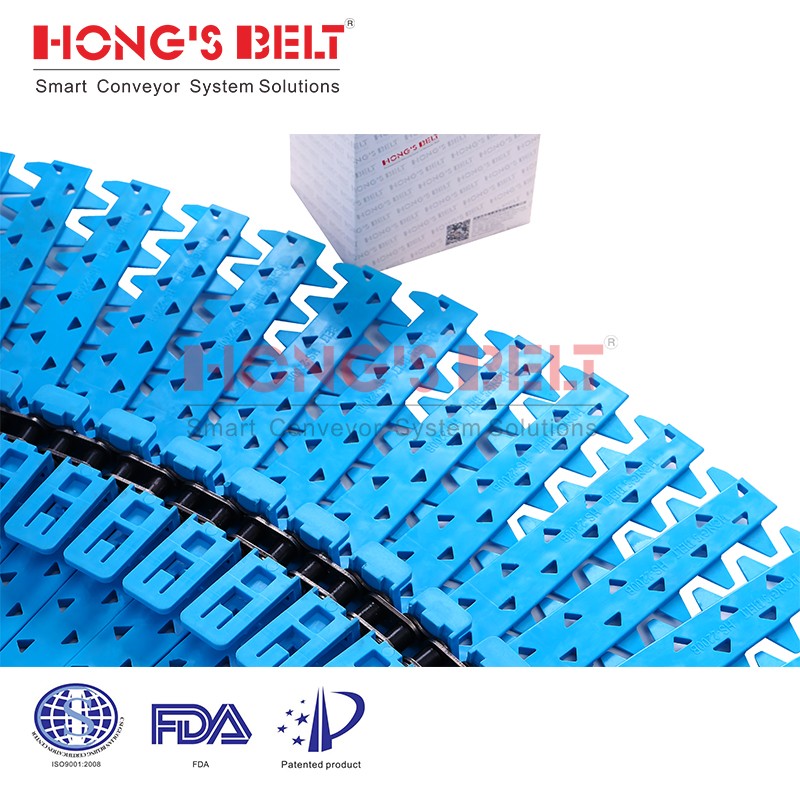

Modular Spiral Conveyor Belt
The HS-2200-B2 is a high-performance modular plastic conveyor belt specifically engineered for spiral conveyor systems. Designed for durability and efficiency, this belt features a robust, maintenance-free construction that is easy to clean and sanitize. With a versatile design capable of handling significant loads, it is an ideal solution for demanding industrial environments requiring reliable, long-term performance.
Technical Specifications
Technical Specifications
| Feature | Value |
|---|---|
| Belt Type | HS-2200-B2 |
| Pitch | 19.05 mm |
| Minimum Width | 400 mm |
| Curve Capability | Yes |
| Flight | No |
| Side Guard | No |
Materials & Colors
- Materials: PP, POM, PE, PA
- Colors: White, Blue, Gray, Nature, Dark-brown
Performance & Compliance
Performance Metrics
1.2 tons/sqm
Max Load Capacity
-40 °C
Min Operating Temp
260 °C
Max Operating Temp
Regulatory Compliance
FDA ApprovedEU Compliant
Applications
- Food Industry Applications
- Meat (Beef & Pork)PoultrySea FoodBakerySnack FoodFruit & Vegetables
- Industrial Applications
- AutomotiveTire ManufacturingPackagingPrinting/PaperPostalCorrugated CardboardCan ManufacturingPET ManufacturingTextile
