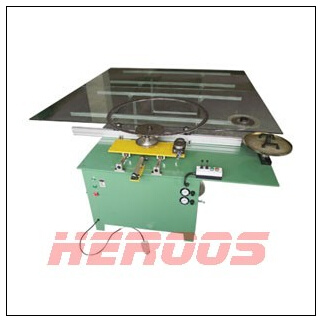

Horizontal Spiral Wound Gasket Winding Machine
This horizontal semi-automatic winding machine is designed for producing spiral wound gaskets with or without an inner ring. It can handle sizes from 300mm to 2500mm/3200mm and features precise welding point control.
Technical Specifications
Overview
Precision Winding Solution
This horizontal winding machine is engineered for the precise and efficient production of spiral wound gaskets, seals, and similar industrial components. Featuring a robust construction and a large, flat work surface, it accommodates a wide range of project sizes and winding requirements. The system integrates advanced tension control, a rotating mandrel, and a traversing mechanism to ensure uniform, high-quality results for every unit produced.
Technical Specifications
Key Features
- Rotating mandrel system
- Precision tension control
- Traversing mechanism for uniform winding
- Large flat work surface
- Adjustable tooling
Control System
Digital Control PanelProgrammableAdjustable Speed
- Machine Type
- Horizontal Spiral Wound Gasket Winding Machine
Performance Metrics
Performance Highlights
1 High
Winding Consistency
1 Integrated
Operational Safety
Applications
- Suitable Applications
- Gasket ManufacturingSeal ProductionCoil WindingPrototyping
