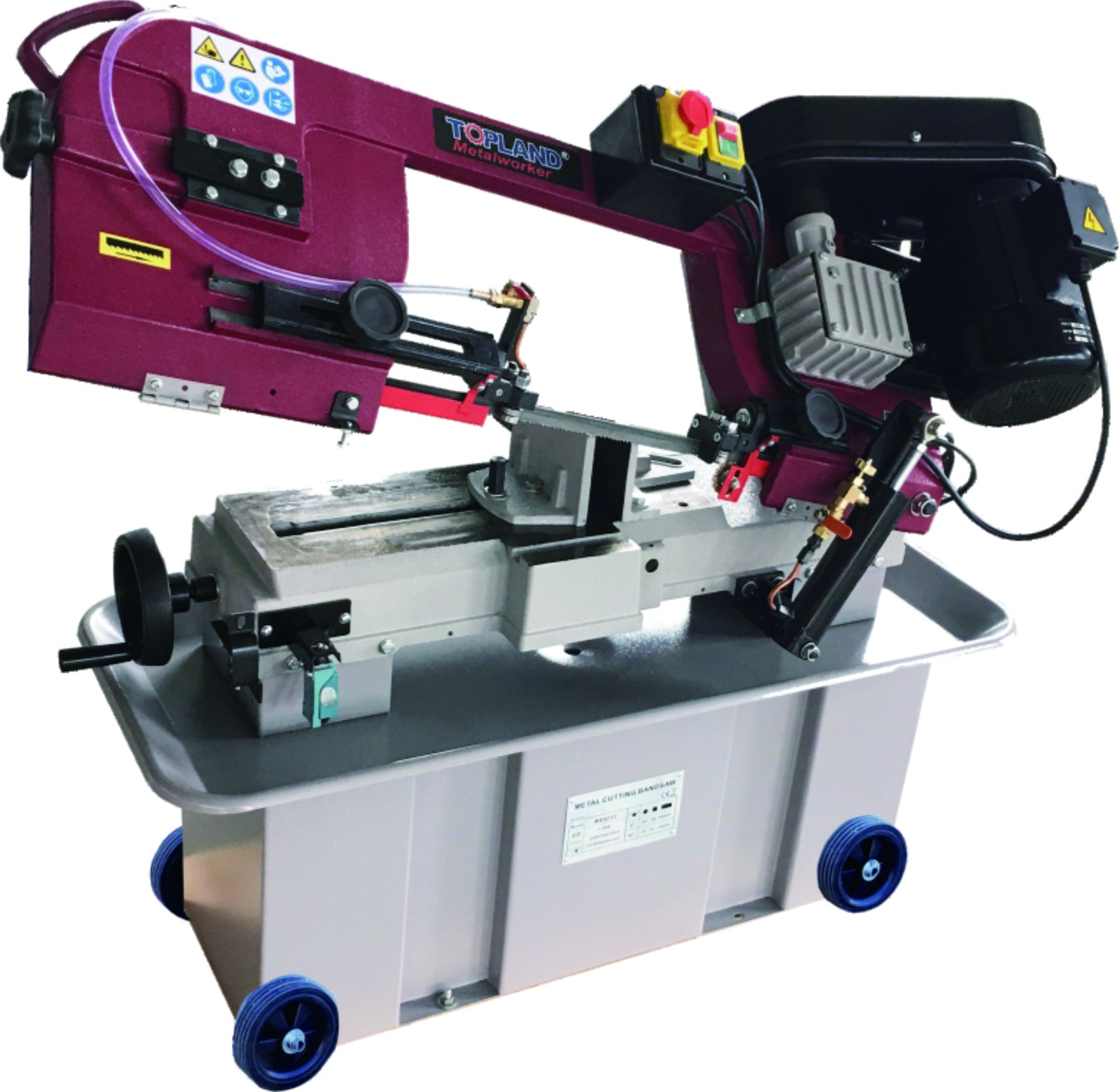

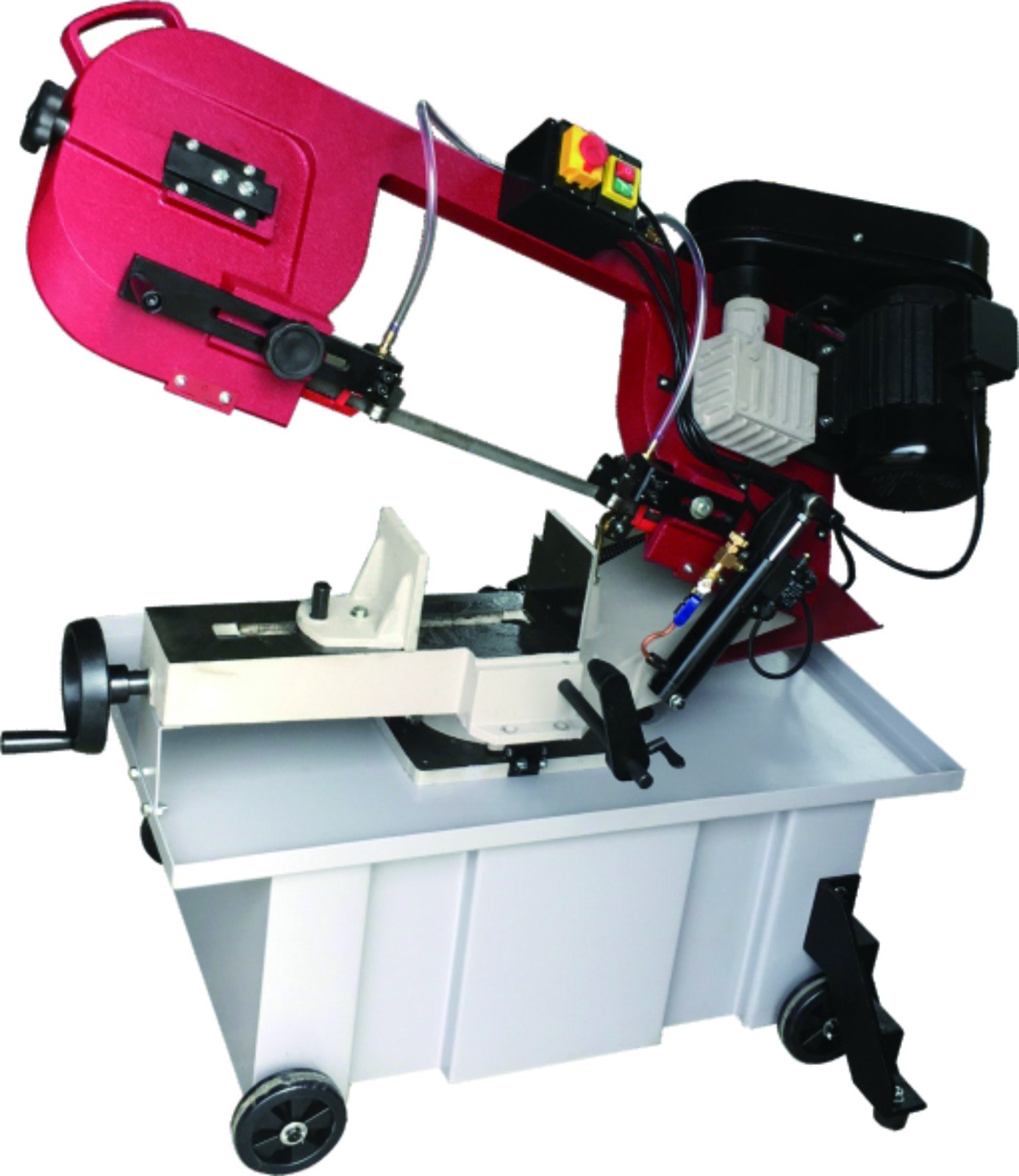

Horizontal Metal Cutting Bandsaw
This horizontal metal cutting bandsaw is designed for precise cutting of metal materials. It features adjustable cutting angles, hydraulic downfeed control, and an integrated coolant system.
Technical Specifications
Overview
Professional Metal Cutting Solutions
This horizontal metal cutting bandsaw is engineered for high-precision industrial applications, offering robust construction and versatile cutting capabilities. Featuring a professional cooling system and adjustable blade tensioning, it ensures consistent cut quality and extended blade life across various metal materials. With multiple drive configurations and adjustable cutting angles, this machine provides the flexibility required for fabrication shops, maintenance departments, and machine shops.
Technical Specifications
Voltage Options
230V 50Hz400V 3~ 50Hz110V 60Hz220V 3~ 60Hz
- Blade Dimensions
- 2360 x 20 x 0.9 mm
- Motor Power
- 1100 W
- Cutting Speeds
- 22 m/min33 m/min39 m/min45 m/min55 m/min65 m/min67 m/min
Cutting Capacity
Cutting Capacity by Angle
| Angle | Round (mm) | Square (mm) | Rectangular (mm) |
|---|---|---|---|
| 0° | 205 | 205 | 215x205 |
| L45° | 150 | 130 | 100x200 |
| R45° | 140 | 90 | 140x90 |
Features
Key Features
- Professional cooling system
- Stepless hydraulic downfeed control
- Adjustable vise for angle cuts (0° to 45°)
- Gear or belt drive configurations
- Optional 24V low-voltage electric box
- Bi-metal saw blade
Logistics
Net Weight
180 kg

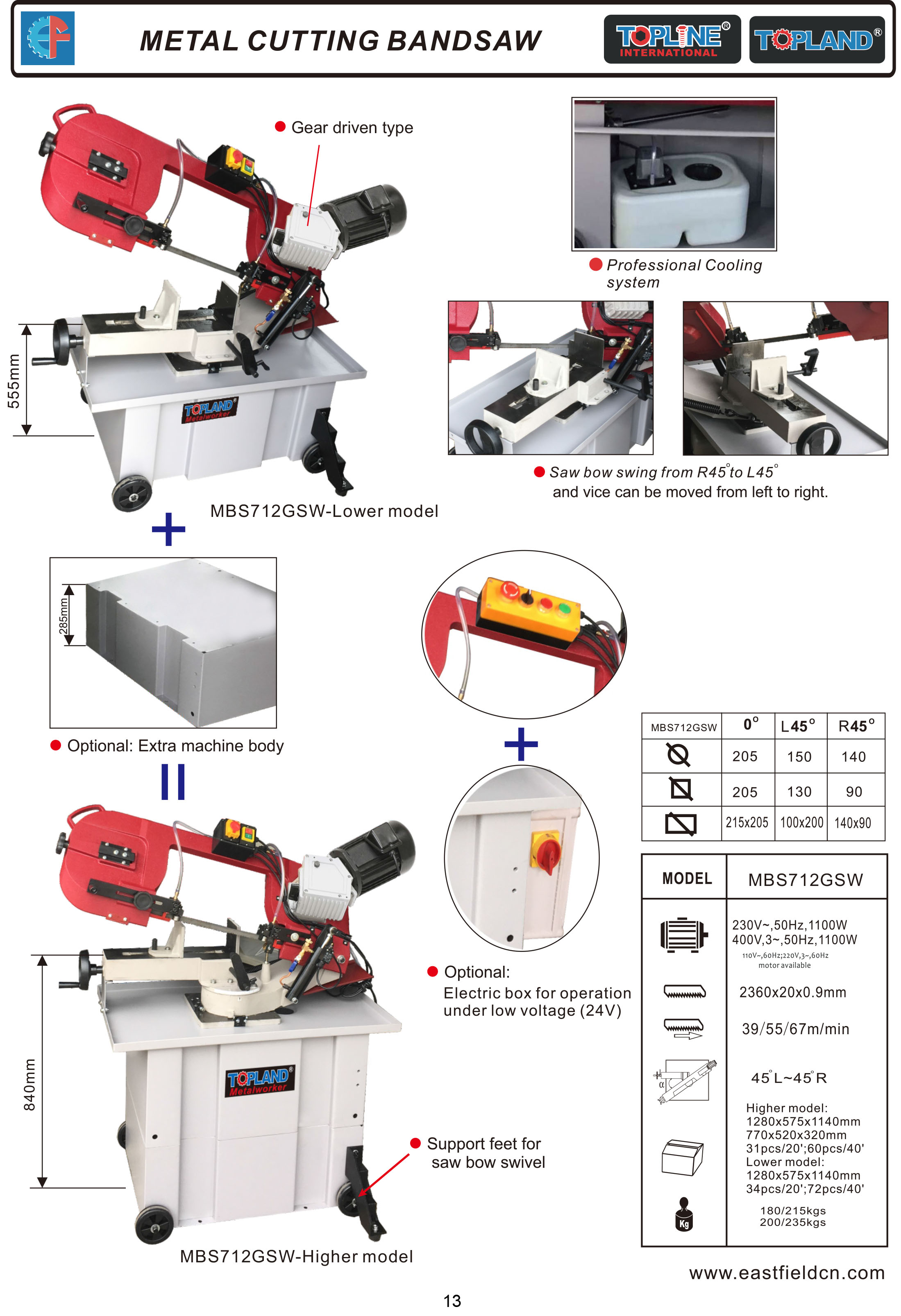

Lower Model Min
235 kg
Higher Model Max
