Horizontal Face Milling Machine

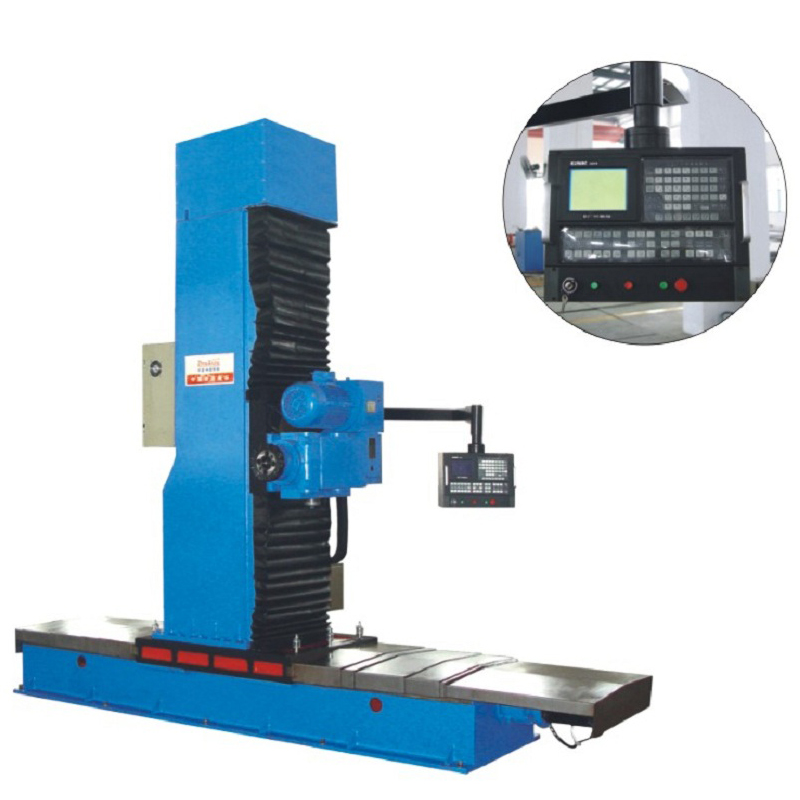

This face milling machine features horizontal driving, a horizontal sliding table, vertical driving, and a vertical rotating sliding table. It is equipped with an electrical control system.
Technical Specifications
Overview
Professional Horizontal Face Milling Machine
This CNC horizontal face milling machine is engineered for the precision processing of H-beam steel and box columns. It features a robust design comprising a milling head, elevation column, and a mechanical feeding system, making it an essential tool for profile steel manufacturers. The machine offers convenient operation, simple structural maintenance, and fast adjustment capabilities to ensure high efficiency in industrial welding and rolling face milling tasks.
Performance Metrics
Milling Motor Power
5.5 Kw
Power
1,440 rpm
Speed
Milling Head Specifications
| Parameter | Value |
|---|---|
| Main Shaft Speed | 125-630 rpm |
| Cutter Diameter | 200-320 mm |
| Main Shaft Extension | 63 mm |
| Quick Elevating Speed | 530 mm/min |
Technical Specifications
- Physical Dimensions
- 4200 x 1200 x 3040 mm
- Machine Weight
- 5.5 ton
Worktable Details
- Sliding Table Dimensions
- 1200 x 750 mm
- Max Stroke of Sliding Table
- 1500 mm
Drive Systems
Drive Motor Power
- Horizontal driving motor: 3KW/4KW (1500/960rpm)
- Vertical driving motor: 1.5KW (1400rpm)
Operating Speeds
- Workpiece forward speed: 54.8-548 mm/min
- Vertical forward speed: 53-530 mm/min
- Quick return speed (sliding table): 822 mm/min
Features
- Key Features
- CNC Control SystemH-beam ProcessingBox Column MillingMechanical FeedingGuideway Protective Device
