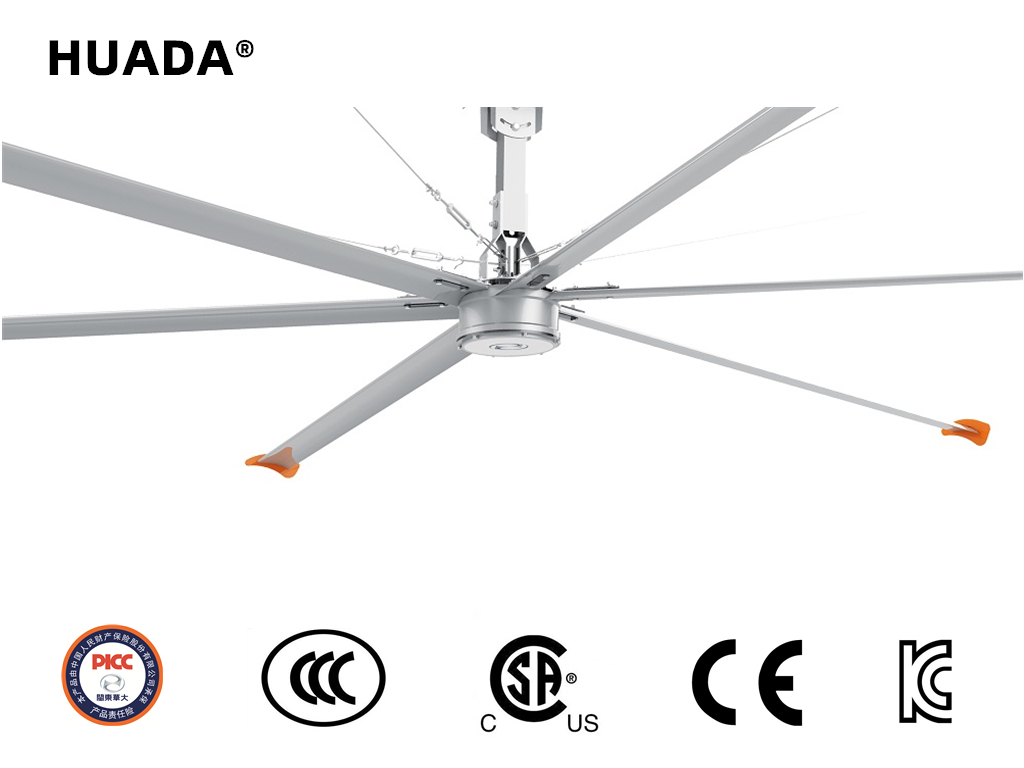

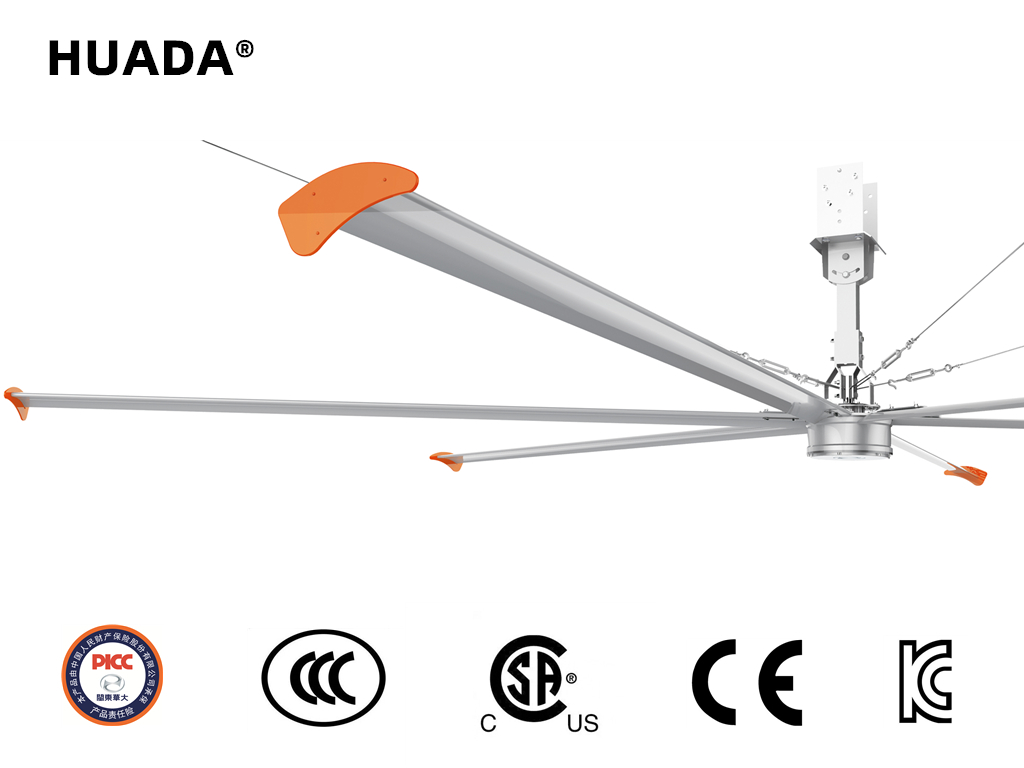

High Volume Low Speed Ceiling Fan for Large Spaces
This high-volume, low-speed ceiling fan is designed to improve air circulation in large spaces. It features a permanent magnet motor for energy efficiency and quiet operation.
Technical Specifications
Product Overview
High-Efficiency HVLS Ceiling Fan

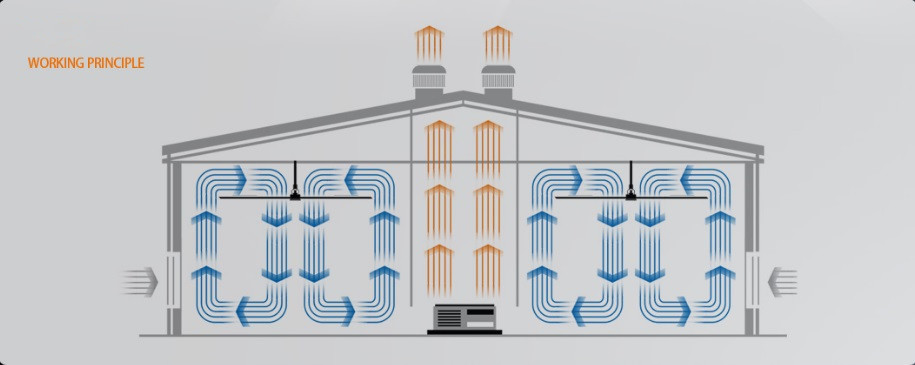

This High Volume Low Speed (HVLS) ceiling fan utilizes advanced permanent magnet external rotor motor technology to deliver superior air circulation in large-scale environments. Designed for energy efficiency and quiet operation, it creates a gentle, natural breeze effect that significantly improves comfort in industrial, commercial, and public spaces. The system features variable frequency speed control and robust construction, ensuring reliable performance, reduced HVAC costs, and effective destratification of air.
Performance Metrics
Key Performance Features
38 dB
Noise Level
15,000 m3/min
Max Air Volume
66 IP

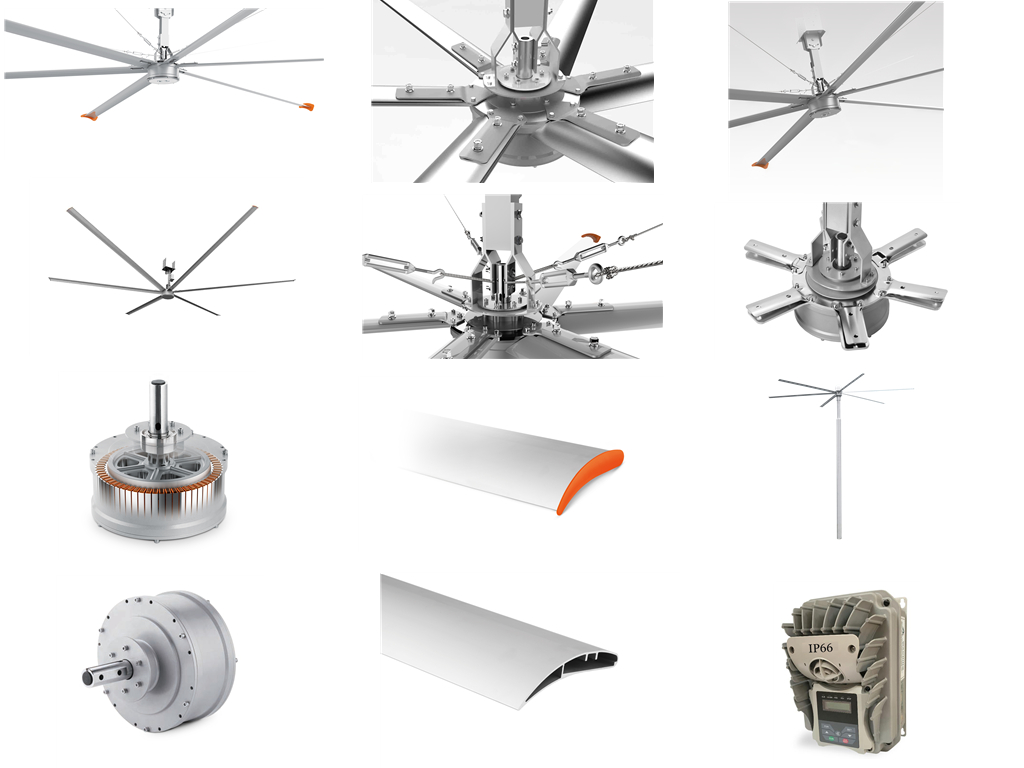

VFD Protection Rating
Technical Specifications
Model Specifications
| Model | Diameter (m) | Power (kW) | Speed (rpm) |
|---|---|---|---|
| HDS-3 | 3 | 0.37 | 120 |
| HDS-3.7 | 3.7 | 0.37 | 100 |
| HDS-4.3 | 4.3 | 0.75 | 90 |
| HDS-5 | 5 | 0.75 | 80 |
| HDS-5.5 | 5.5 | 1.1 | 70 |
| HDS-6.1 | 6.1 | 1.1 | 60 |
| HDS-6.7 | 6.7 | 1.1 | 55 |
| HDS-7.3 | 7.3 | 1.1 | 50 |
Electrical & Mechanical
Electrical Data
- Voltage: 220-240V / 380-460V
- Frequency: 50/60Hz
- Motor Type: Permanent Magnet External Rotor

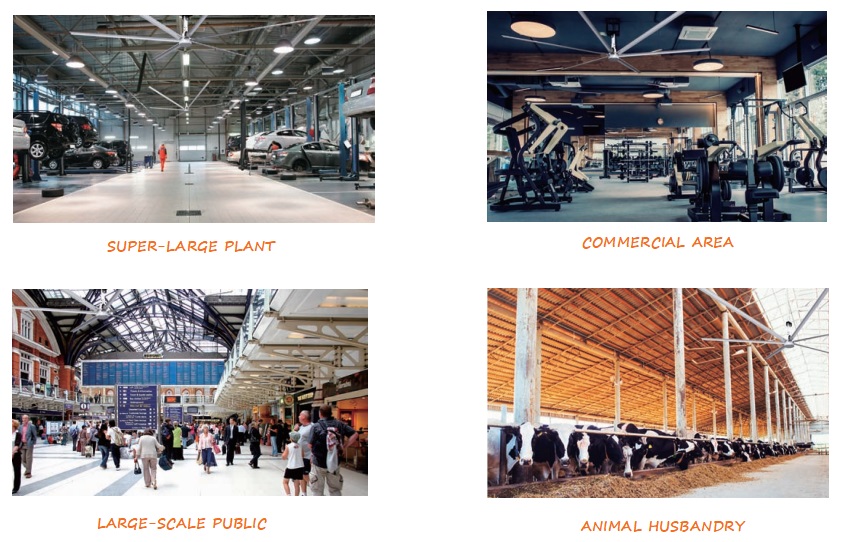

Applications
- Suitable Environments
- Industrial PlantsLogistics WarehousingCommercial AreasExhibition HallsPublic SpacesAnimal Husbandry
