High-Temperature Glass Fiber HEPA Filter
This HEPA filter is constructed with heat-resistant glass fiber media. It is designed for use in high-temperature environments, with stainless steel or galvanized steel frame options.
Technical Specifications
Product Overview
High-Temperature Glass Fiber HEPA Filter
Designed for demanding industrial environments, this high-efficiency particulate air filter combines advanced glass fiber media with a robust construction to withstand temperatures ranging from 250°C to 400°C. It features a durable metal frame and heat-resistant components, ensuring reliable performance in sterilization and high-heat ventilation systems. Its design ensures high airflow rates and low pressure drop while effectively capturing fine particulates in critical air ventilation systems.
Technical Specifications
- Efficiency Ratings
- F7F8H10H11H12H13H14
- Temperature Resistance
- 400 °C
- Humidity Tolerance
- 80 %
- Recommended Final Pressure Drop
- 400 Pa

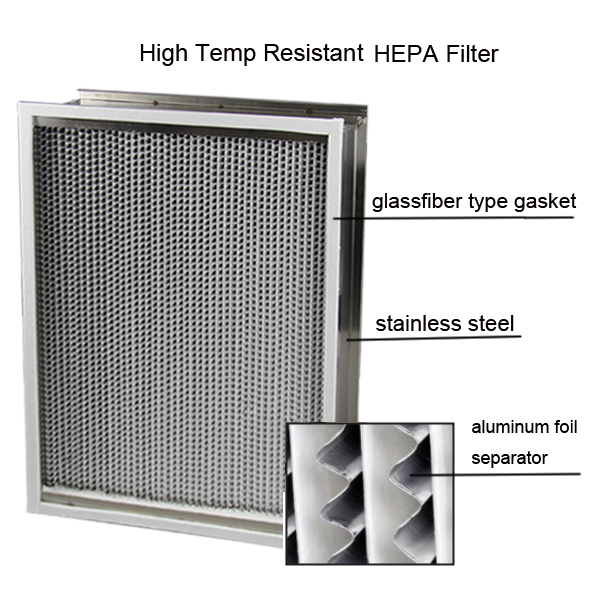

Construction Materials
Frame Material Options
304 Stainless Steel210 Stainless SteelGalvanized Steel
Sealing Components
- Heat resistant rubber gasket
- Heat resistant polyurethane sealant
- Media Composition
- Heat resistant glass fiber
- Separator Material
- Corrugated aluminum foil
- Face Guard Material
- Aluminum or stainless steel mesh
Applications
Recommended Applications
- Commercial & Industrial Final Filtration
- Clean room air ventilation systems
- High-temperature ventilation systems
- Ovens and sterilizers
