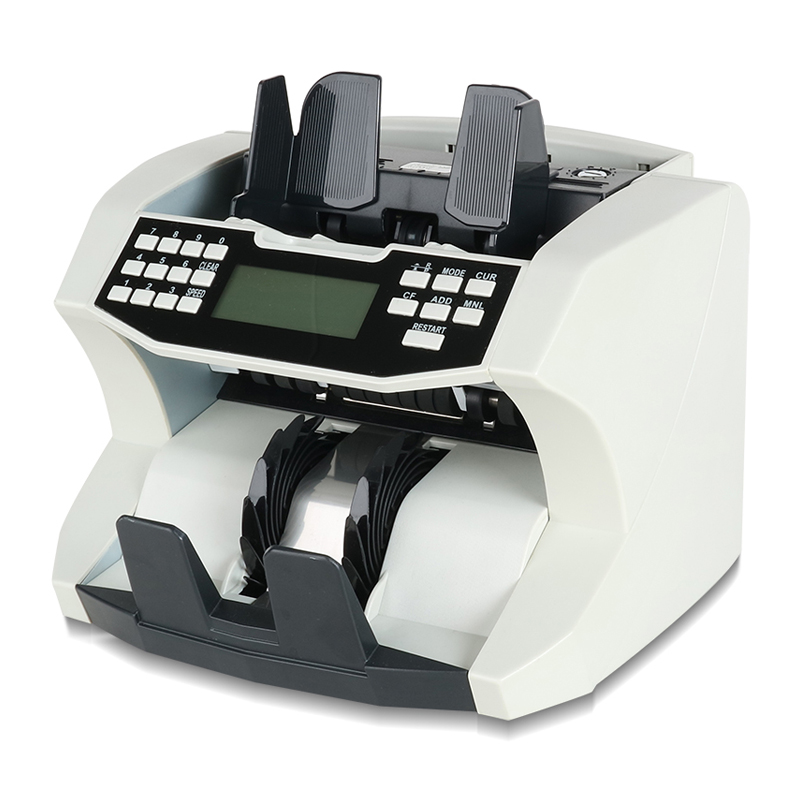

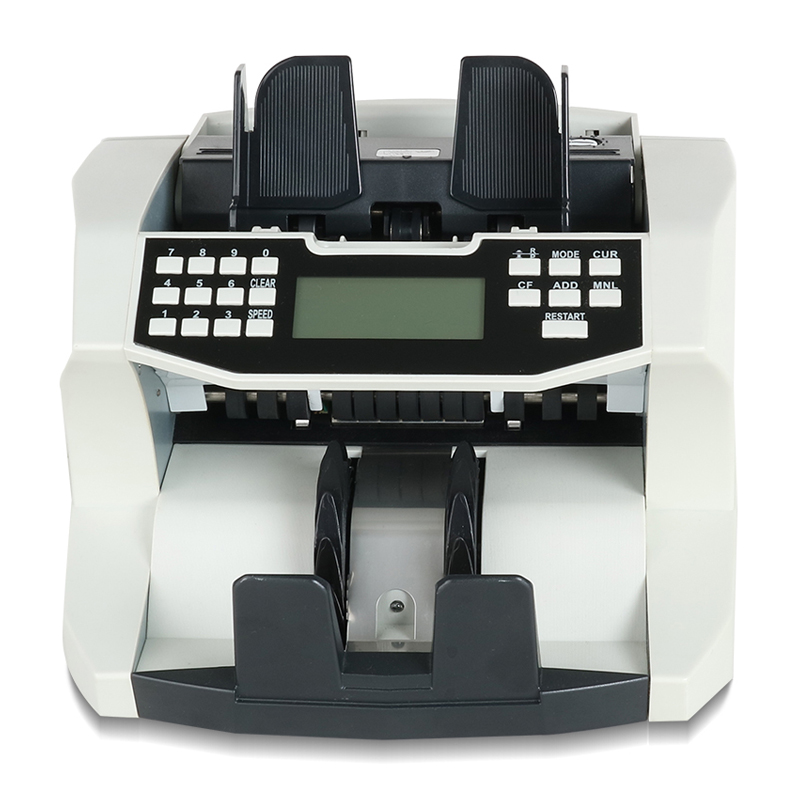

High-Speed Bill Counter with Counterfeit Detection
This high-speed bill counter is designed for accurate and efficient bill counting. It features counterfeit detection, add and batch modes, and a user-friendly interface with a digital display and numeric keypad.
Technical Specifications
Overview
Professional Cash Management Solution
This high-speed bill counter is engineered for efficiency and accuracy in high-volume business environments. It features advanced multi-sensor counterfeit detection, including UV, MG, MT, and IR-CIS technologies, ensuring secure cash handling. With flexible operating modes, including batching and adding, and support for various currencies, it provides a reliable solution for streamlined financial operations.
Performance & Capacity
Counting Speed
1,600 pcs/min
High Speed
1,200 pcs/min
Medium Speed
600 pcs/min
Low Speed
- Hopper Capacity
- 600 pcs
- Stacker Capacity
- 200 pcs
Banknote Compatibility
- Countable Size Range
- 115×50mm to 185×85mm
- Countable Thickness
- 0.06 - 0.12 mm
Detection Features
Error Detection
Half-noteChain-noteWidth-detectionDouble-note
- Detection Sensors
- UVMGMTIR-CIS
Connectivity & Interface
Connectivity
- RS 232 socket for PC connection
- Printer support
- SD card slot for upgrades
Technical Specifications
Weight
6.8 kg
Net Weight
8.1 kg
Gross Weight
- Power Requirements
- AC 110V/60Hz or AC 220V/50Hz
- Power Consumption
- 60 W
- Dimensions (L x W x H)
- 248 x 270 x 245 mm
Model Comparison
Series Comparison
| Model | UV/MG/MT/IR | Mix Value Sorting |
|---|---|---|
| BJ-2200 | Counting Only | No |
| BJ-2200UV | UV | No |
| BJ-2200UVMG | UV, MG, MT | No |
| BJ-2200Value | Full Suite | Yes |
