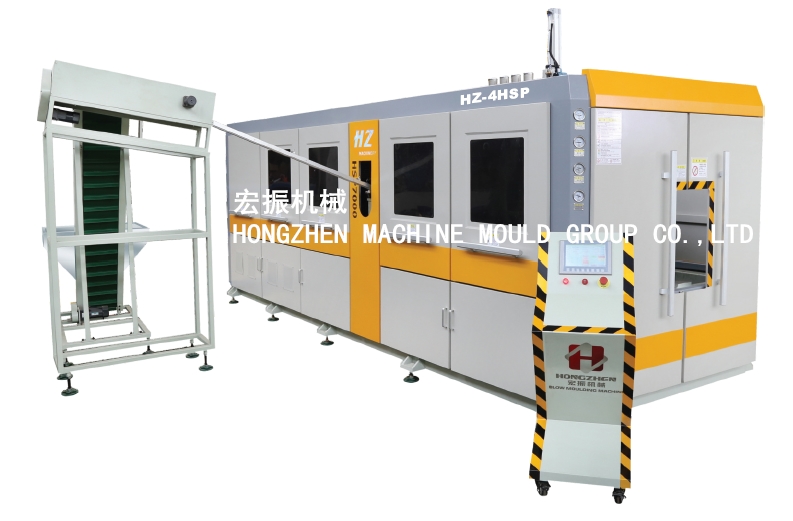

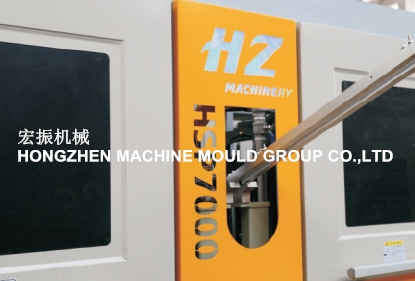

High Speed 4-Cavity Blow Molding Machine
This high-speed blow molding machine is designed for efficient production of plastic containers. It features a 4-cavity mold to maximize output.
Technical Specifications
Product Overview
High-Speed Blow Molding Efficiency
This high-speed, fully automatic blow molding machine is engineered for the efficient production of plastic containers. It features an advanced hanging-heated preform system that significantly reduces electricity consumption while maintaining high output rates. Designed for seamless integration, the machine can connect directly to existing filling lines, making it an ideal solution for high-volume packaging operations.
Performance Metrics
Key Performance Metrics
7,500 BPH
Max Output (4-Cavity)
2.25 L
Max Bottle Volume
32 mm
Max Neck Diameter
Technical Specifications

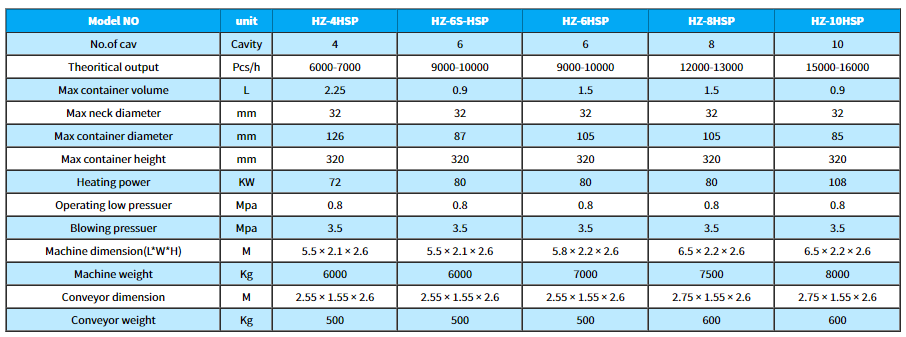

Model Specifications
| Model | Cavities | Output (Pcs/h) | Max Vol (L) |
|---|---|---|---|
| HZ-4HSP | 4 | 6000-7000 | 2.25 |
| HZ-6S-HSP | 6 | 9000-10000 | 0.9 |
| HZ-6HSP | 6 | 9000-10000 | 1.5 |
| HZ-8HSP | 8 | 12000-13000 | 1.5 |
| HZ-10HSP | 10 | 15000-16000 | 0.9 |
Operational Details
System Pressures
- Operating Low Pressure: 0.8 Mpa
- Blowing Pressure: 3.5 Mpa
- Heating Power Range
- 72 KW
Physical Dimensions
- Machine Dimensions (L x W x H)
- 5.5m x 2.1m x 2.6m (Base Model)
- Machine Weight
- 6000 Kg
Key Features
- Machine Highlights
- Fully AutomaticEnergy-EfficientHanging-Heated PreformsDirect Filling Line ConnectionHigh-Speed Operation
