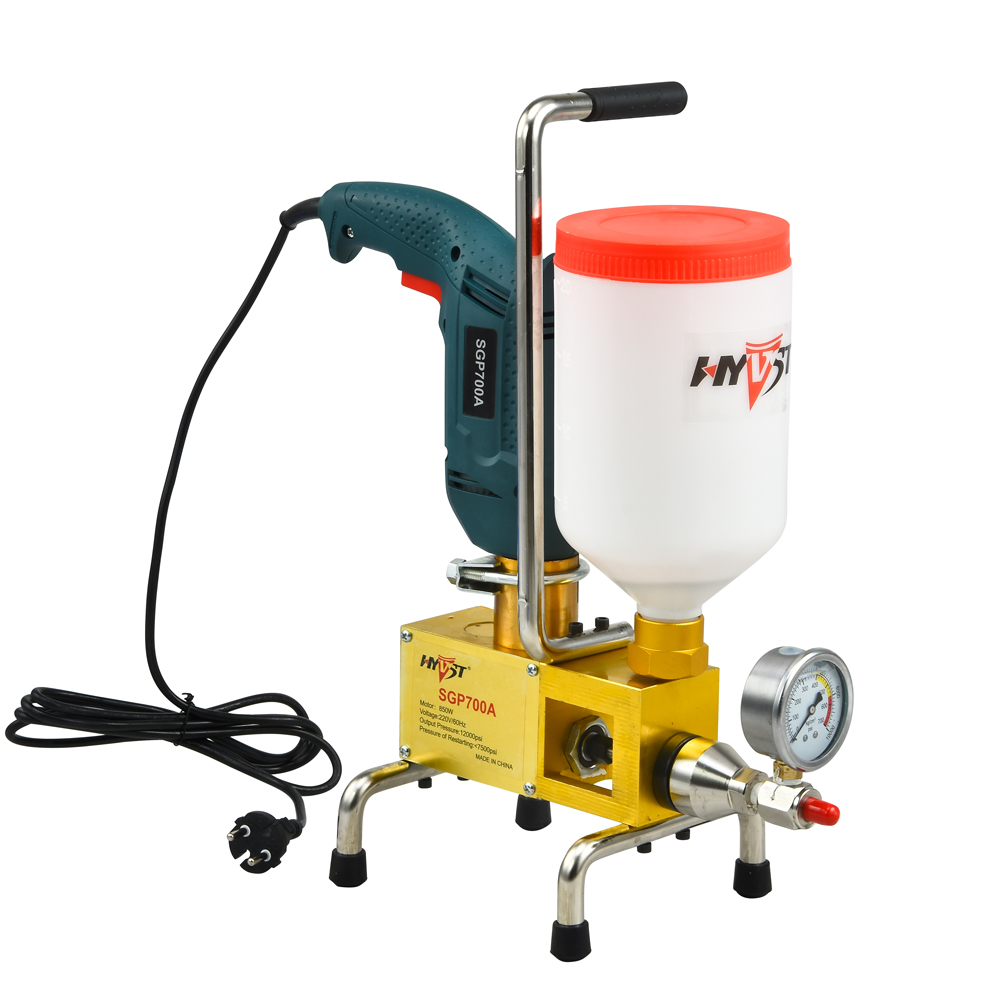

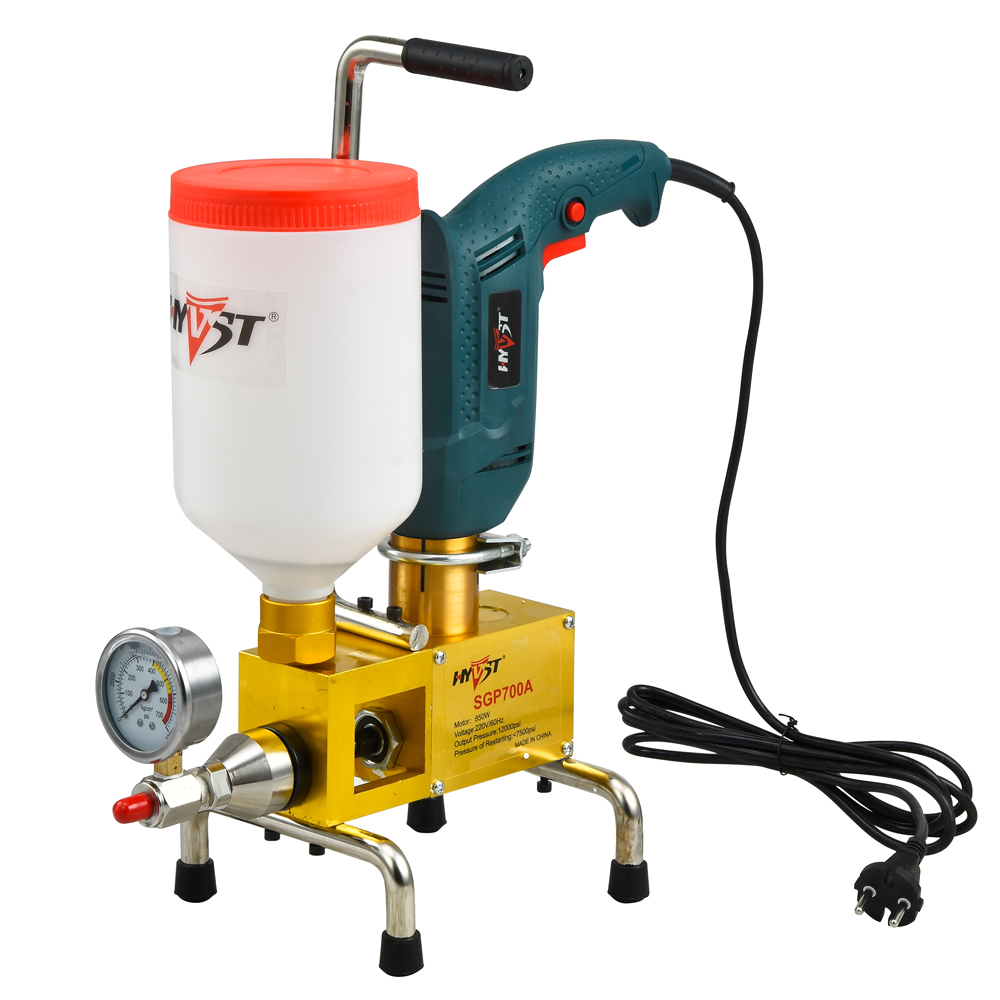

High-Pressure Injection Machine
This high-pressure injection machine is designed for injecting materials into structures. It features an 850W motor operating at 220V/60Hz, delivering an output pressure of 12000psi with a restarting pressure below 7500psi.
Technical Specifications
Product Overview
High-Pressure Injection System
This high-pressure injection machine is engineered for professional structural repair and sealing applications. It is compatible with a variety of materials, including water-soluble and oil-soluble PU foam plugging agents, epoxy resins, and acrylic resin infusion materials. Featuring a robust motor and adjustable pressure controls, it provides the reliability needed for demanding construction environments.
Technical Specifications
- Motor Power
- 800 W
- Voltage
- 220 V
- Frequency
- 50 Hz
- Output Pressure
- 12000 psi
- Restarting Pressure
- 8000 psi
- Max Particle Size
- 0-2mm
Physical Properties
- Net Weight
- 7 kg
- Key Features
- Adjustable Pressure GaugeRelief ValveLow Viscosity Compatible
Accessories
Included Accessories
- High-pressure hose
- Switch valve (with butter head)
- Filter
- Spare parts kit
- Hand tool kit
Logistics
Packaging Details
| Configuration | Dimensions | Weight |
|---|---|---|
| Single Unit | 43 x 15 x 39 cm | 7 kg |
| 3pcs/Carton | 48 x 45 x 40.5 cm | 27/24 kg |
