High-Pressure Injection Machine
This high-pressure injection machine is designed for injecting materials under pressure. It delivers an output pressure of 12000psi and a restarting pressure of less than 7500psi.
Technical Specifications
Overview
Professional High-Pressure Injection System

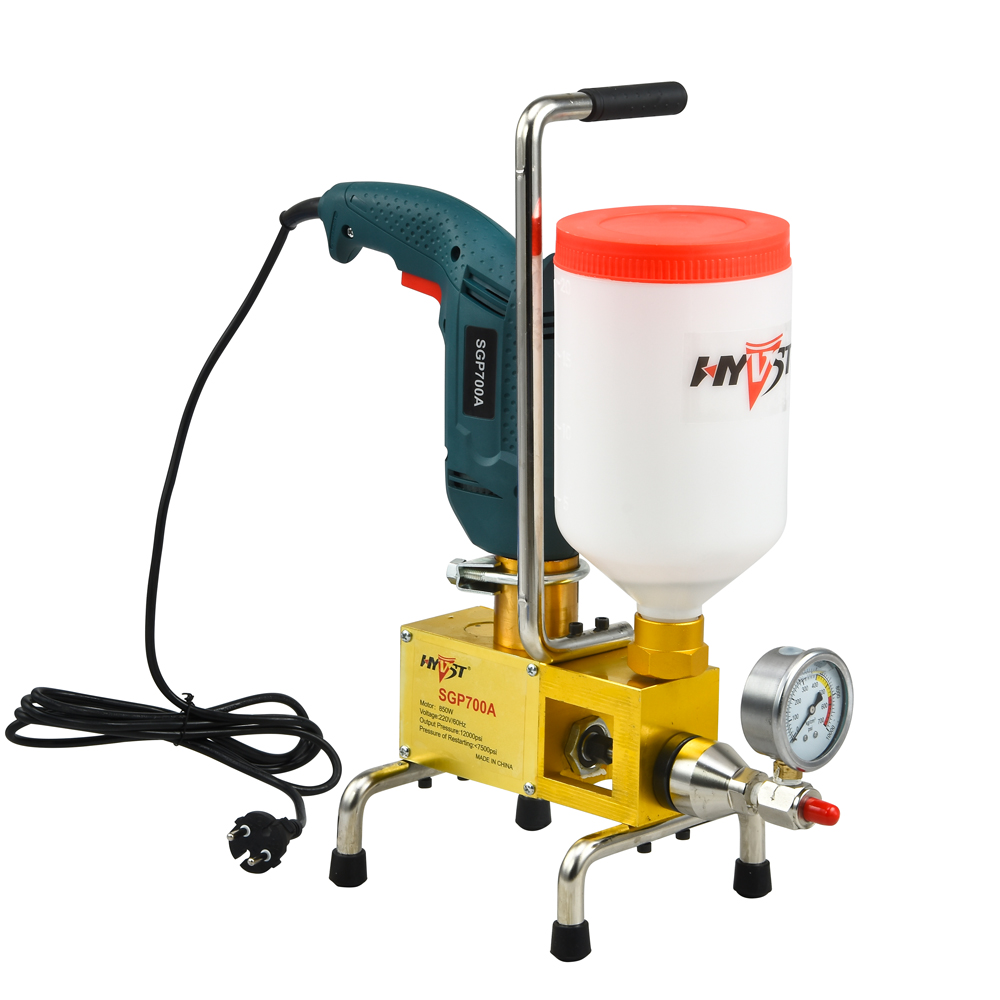

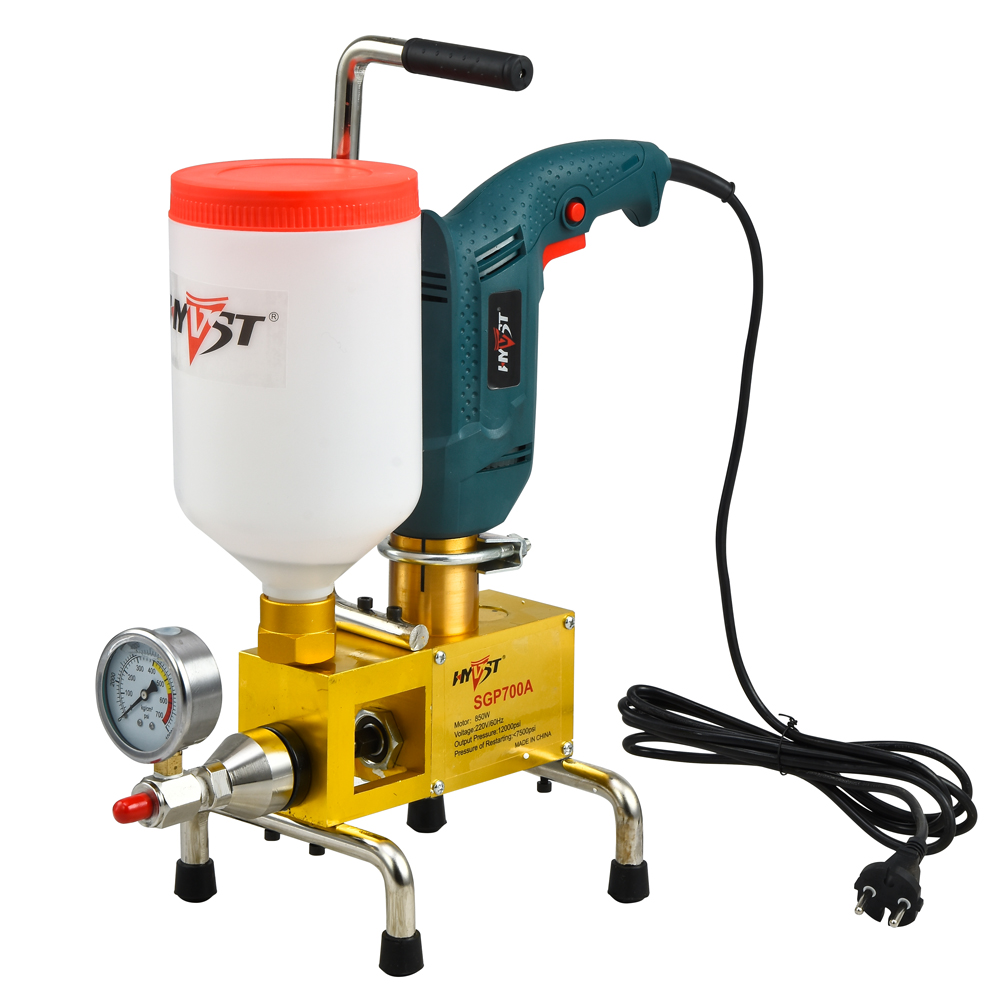

This high-pressure injection machine is engineered for precision perfusion tasks, including water-soluble and oil-soluble PU foam plugging, as well as epoxy and acrylic resin infusion. Equipped with a powerful 850W motor, it delivers consistent performance with an output pressure of 12,000 psi. Designed for reliability in demanding environments, it features an adjustable pressure gauge and a relief valve for safe, controlled operation.
Technical Specifications
- Motor Power
- 850 W
- Operating Voltage
- 220V/60Hz
Performance Metrics
Key Performance Metrics
12,000 psi
Output Pressure
7,500 psi
Restarting Pressure
Physical Characteristics
- Net Weight
- 7 kg
- Unit Dimensions
- 43 x 15 x 39 cm
Compatibility
- Compatible Materials
- PU FoamEpoxy ResinAcrylic ResinWater-soluble agentsOil-soluble agents
Included Accessories
Package Contents
- 1x High pressure hose
- 1x Switch valve (with butter head)
- 1x Filter
- 1x Spare parts kit
- 1x Hand tool kit
