High-Performance Engine for Industrial Applications
This high-performance engine is designed for various applications. It features a durable construction and efficient combustion system for reliable operation.
Technical Specifications
Overview

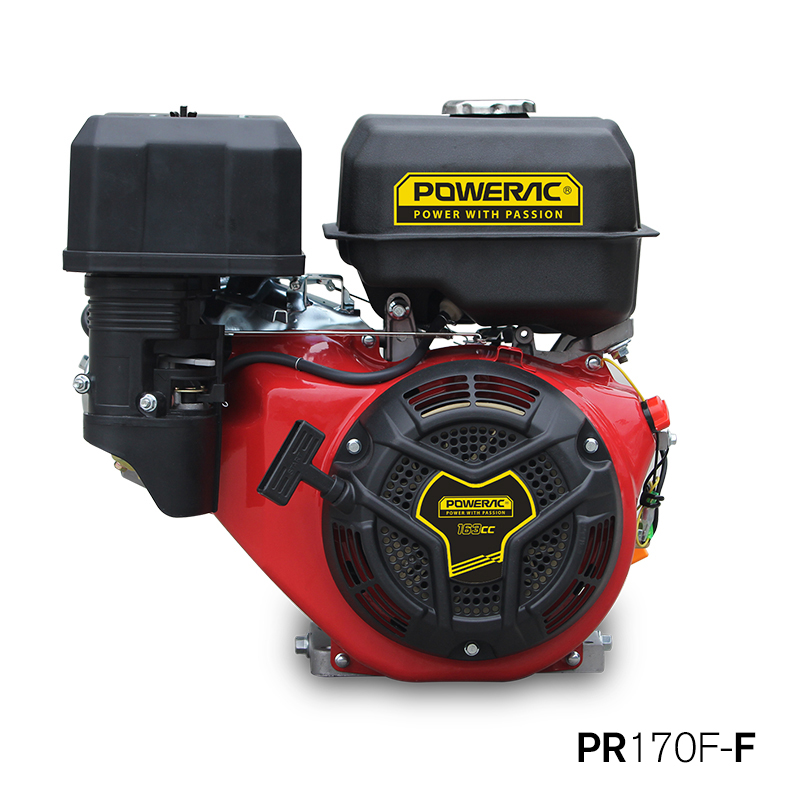

High-Performance Industrial Engine
This high-performance engine is engineered for reliable operation in demanding industrial applications. It features a robust construction with a newly designed fuel tank, air cleaner, muffler, and recoil starter for enhanced durability. Designed for optimal combustion efficiency, this unit provides consistent power output suitable for integration into various machinery and industrial equipment.
Technical Specifications
- Bore x Stroke
- 70 x 55 mm
- Compression Ratio
- 8.5:1
- Displacement
- 212 cc
Performance Metrics
Power Output
7 hp
Max Output
3,600 rpm
at Speed
Torque Output
13.5 N.m
Max Torque
2,500 rpm
at Speed
Capacities
Fluid Capacities
| Fluid Type | Capacity | Unit |
|---|---|---|
| Fuel Tank | 3.6 | L |
| Oil Capacity | 0.6 | L |
Logistics
Weight
- Gross Weight: 16 kg
- Net Weight: 15 kg
Container Loading Capacity
| Container Type | Units |
|---|---|
| 20GP | 576 |
| 40HQ | 1,358 |
- Dimensions
- 405 x 345 x 380 mm
Features
- Upgraded Components
- New Fuel TankNew Air CleanerNew MufflerNew Recoil Starter
