High-Frequency Switching Power Supply DC Screen for 10-500KV Electrical Systems
This high-frequency switching power supply DC screen is suitable for 10-500KV substations and power plants. It provides stable DC output for high-voltage switches and relay protection.
Technical Specifications
Product Overview

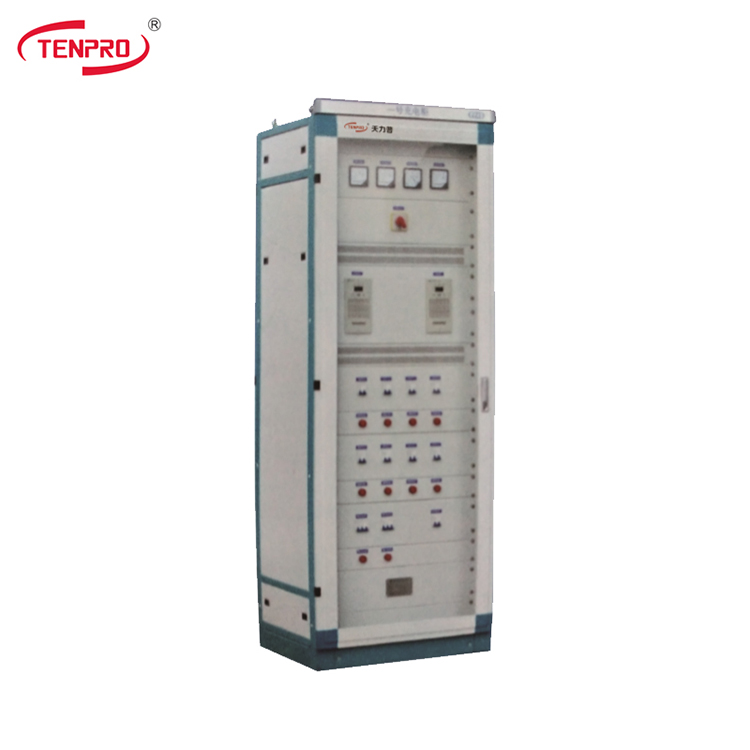

High-Frequency Switching Power Supply DC Screen
This high-frequency switching power supply DC screen is engineered for critical electrical infrastructure including 10-500KV substations, power plants, and high-rise commercial facilities. It provides a stable, reliable DC output essential for high-voltage switch operation, relay protection, automatic control, and accident lighting systems. The system features advanced switching technology for high efficiency and a modular design that facilitates easier maintenance and expansion.
Standards & Compliance
- Certifications and Standards
- ZBK45017-90DL/T459-200LS(W) 30-40JT
Technical Features
Performance Metrics
10 KV
Minimum Operating Voltage
500 KV
Maximum Operating Voltage
Core Functionalities
- High-frequency power conversion
- Voltage and current regulation
- Overload protection
- Short-circuit protection
- Intelligent monitoring and control
Application Areas
Suitable Environments
SubstationsPower PlantsHigh-rise BuildingsResidential Distribution RoomsIndustrial Power Plants
