High Capacity Microwave Capacitor
This high-capacity microwave capacitor is designed for demanding applications. It features a robust construction and is suitable for use in microwave circuits, power amplifiers, and other high-frequency applications.
Technical Specifications
Product Overview
High-Performance Power Factor Correction

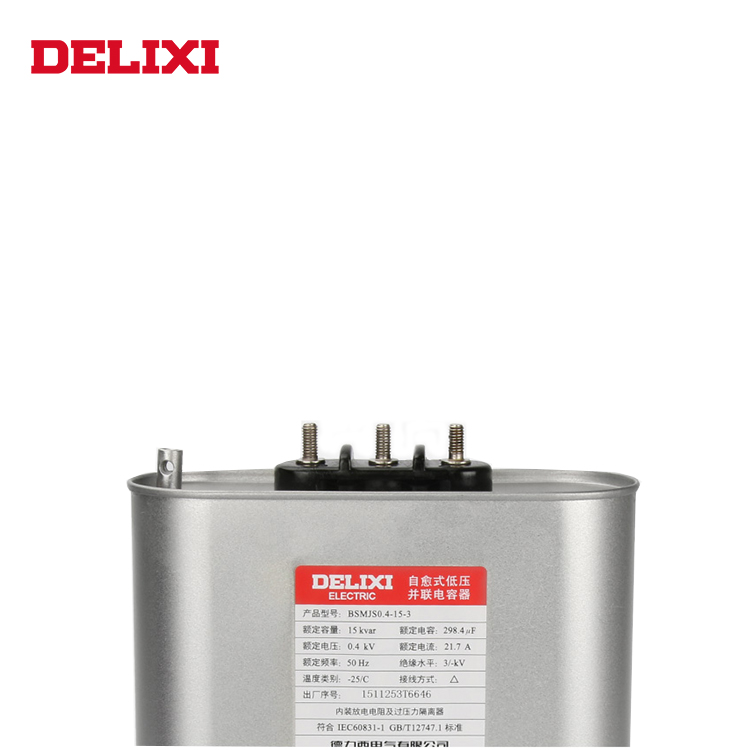

This self-healing low-voltage shunt capacitor is engineered for demanding industrial applications requiring stable power factor correction. Designed for reliability, the unit features robust construction with an integrated internal discharge resistor and overpressure isolator for enhanced safety. It is built to withstand varied operating environments, ensuring efficient energy management and long-term performance in microwave circuits and power systems.
Electrical Specifications
- Rated Capacity
- 15 kvar
- Rated Voltage
- 0.4 kV
- Rated Current
- 21.7 A
- Capacitance
- 298.4 µF
- Operating Frequency
- 50Hz/60Hz
- Insulation Level
- 3 kV
Performance & Safety
Compliance Standards
- IEC60831-1
- GB/T12747.1
- Safety Features
- Internal discharge resistorOverpressure isolatorSelf-healing
- Operating Temperature
- -25°C to +50°C
- Connection Method
- Delta (△)
Mechanical Specifications

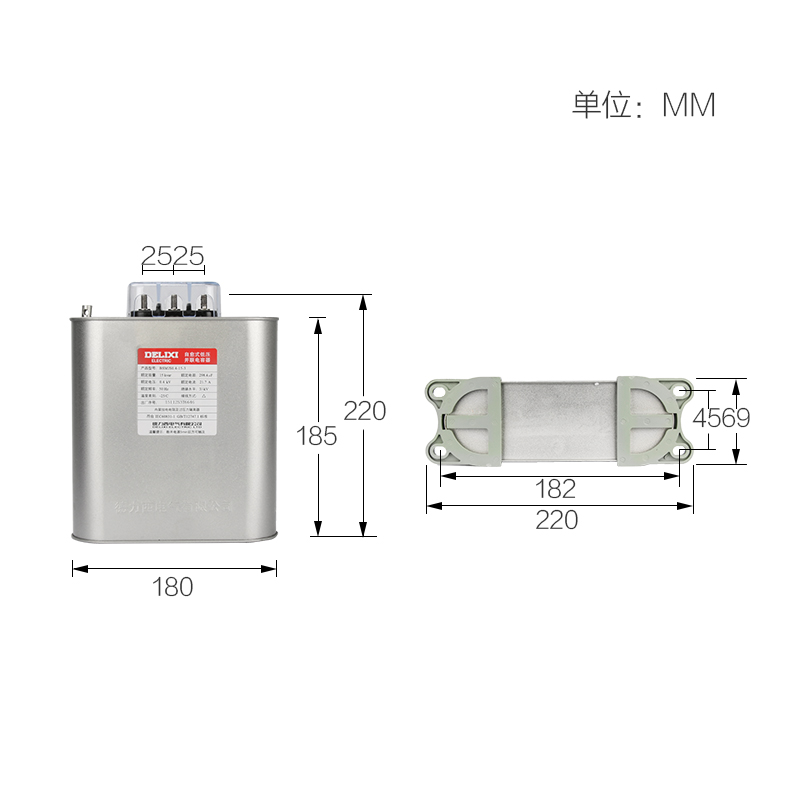

Physical Dimensions
| Component | Dimension |
|---|---|
| Body Diameter | 180 mm |
| Height | 185 - 220 mm |
| Mounting Hole Distance | 182 mm |
- Shell Material
- Tin matte metal or tinplate painting
