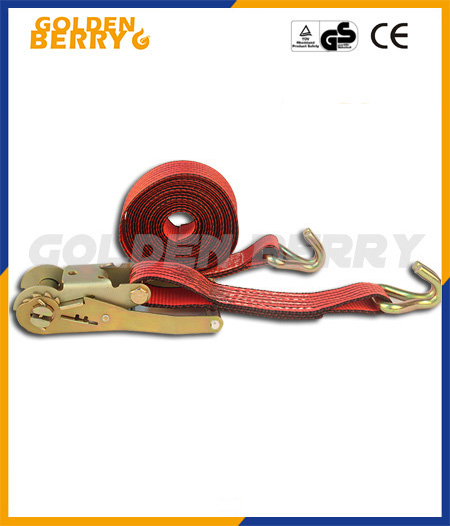

Heavy Duty Ratchet Cargo Straps
These heavy-duty ratchet straps are designed for securing cargo during transport. Featuring a polyester webbing strap and ratchet mechanism, they ensure tension and safe transport of goods.
Technical Specifications
Product Overview
Heavy Duty Ratchet Cargo Straps
These heavy-duty binding devices are essential manual tools designed for secure cargo transportation. Utilizing a durable polyester webbing strap paired with a robust ratchet and pawl mechanism, they ensure goods are bundled tightly and safely during transit. Engineered for industrial transport, these straps offer a flexible, time-saving, and labor-saving solution for securing heavy loads on large trucks.
Certifications & Standards
- Compliance & Quality
- CEISO 9001ISO 14001OHSAS 18001
Technical Specifications
Model Specifications
| Model | Rated Load (KG) | Breaking Strength (KG) | Length (M) | Width (MM) |
|---|---|---|---|---|
| TD50-J-17 | 2,250 | 4,500 | 5 | 50 |
| TD50-J-27 | 2,250 | 4,500 | 8 | 50 |
| TD50-J-33 | 2,250 | 4,500 | 10 | 50 |
| TD50-J-5M | 2,500 | 5,000 | 5 | 50 |
| TD50-J-8M | 2,500 | 5,000 | 8 | 50 |
| TD50-J-10M | 2,500 | 5,000 | 10 | 50 |
| TD50-J-12M | 2,500 | 5,000 | 12 | 50 |
| TD75-J-10M | 5,000 | 10,000 | 10 | 75 |
Key Performance Metrics
Performance Capacity
5,000 KG
Max Rated Load
10,000 KG
Max Breaking Strength
