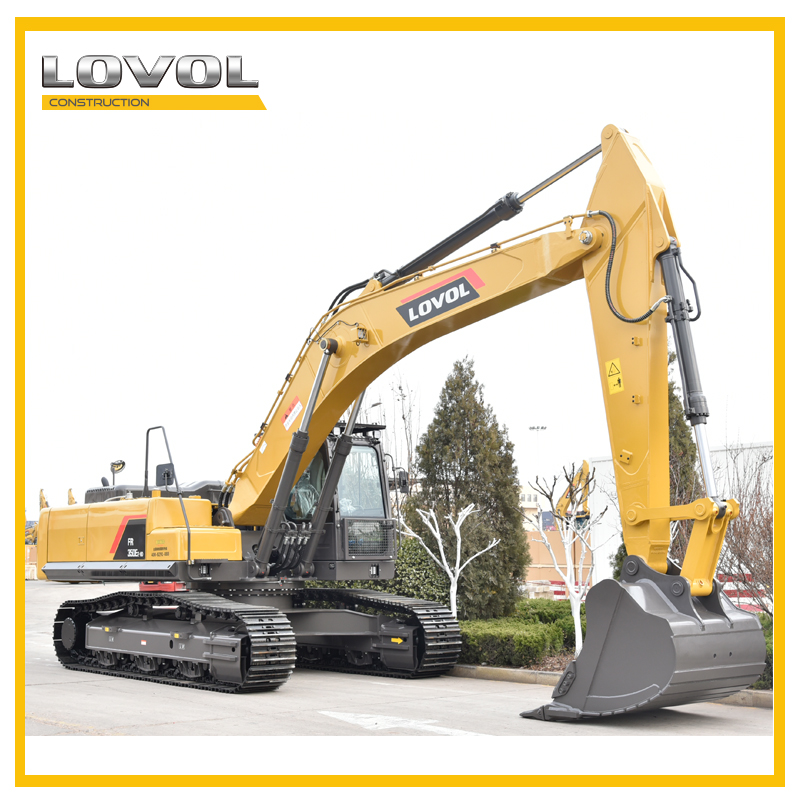

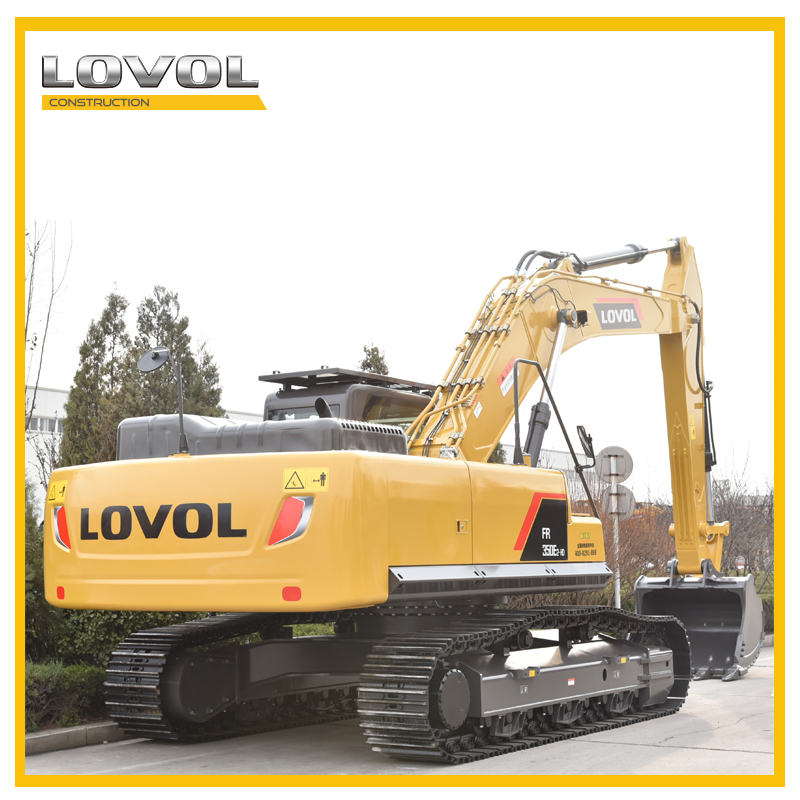

Heavy-Duty Hydraulic Excavator
This hydraulic excavator is designed for demanding construction and excavation tasks. It features a high-performance engine and durable construction for reliable and efficient operation.
Technical Specifications
Overview
Heavy-Duty Mining Excavator
Engineered for demanding mining and construction applications, this heavy-duty hydraulic excavator features a robust positive flow control system for superior efficiency and power. Designed to operate in extreme environments, it maintains performance across temperature ranges from -40°C to 50°C and altitudes up to 3000m. The machine prioritizes operator comfort with an ergonomic, TOPS/FOPS-certified cabin and simplifies maintenance through centralized lubrication points and extended service intervals.
Performance Metrics
Rated Power
212 kW
Rated Power
2,000 rpm
Rated Speed
Operating Specifications
| Metric | Value |
|---|---|
| Operating Weight | 35800 kg |
| Max Digging Depth | 7357 mm |
| Bucket Capacity | 1.65 m³ |
| Track Shoe Width | 600 mm |
- Climbing Capability
- 35 degrees
Compliance & Environment
Operating Conditions
- Temperature Range: -40°C to 50°C
- Altitude Tolerance: Up to 3000m
- High-dust environment compatible
- Emission Standards
- China Stage IIIUS Tier 3 FinalEU Stage IIIA
Safety & Cab
Safety Features
TOPS/FOPS CertifiedProtective NetAnti-collision BeamRearview Camera (Optional)
Maintenance
Maintenance Highlights
- 5000-hour hydraulic fluid life
- Centralized lubrication points
- Ground-level maintenance access
- Centrifugal air prefilter
