Technical Specifications
Product Overview

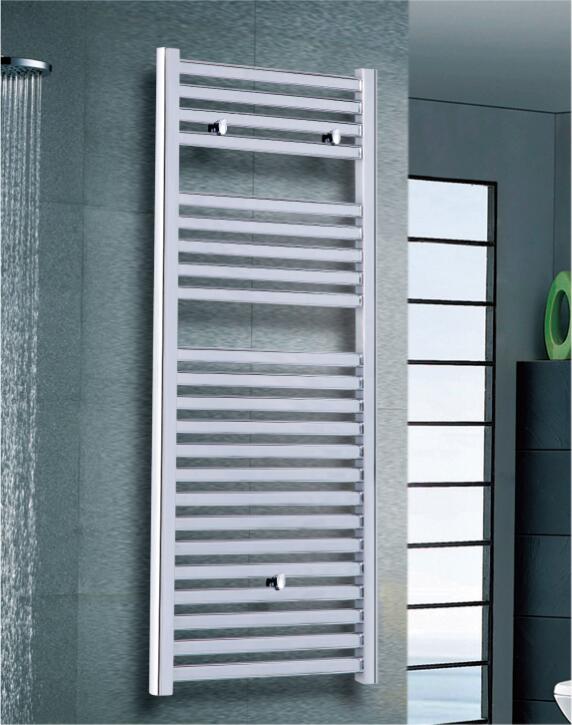

Professional Heated Towel Drying Solution
This high-performance towel drying rack is engineered for both central hydronic and electric heating systems, providing a versatile solution for modern bathroom climates. Constructed from durable mild steel (SPCC/Q195) with a patented welding process, it ensures superior structural integrity and optimal sealing. Available in customizable powder coatings or high-quality chrome plating, this unit combines functional drying efficiency with a sleek, professional aesthetic.
Technical Specifications
Finishing Options
Chrome Plating (Cr 3+/6+)Custom Powder Coating
- Certifications
- ISO 9000ISO 14001SA8000EN442
Performance Data

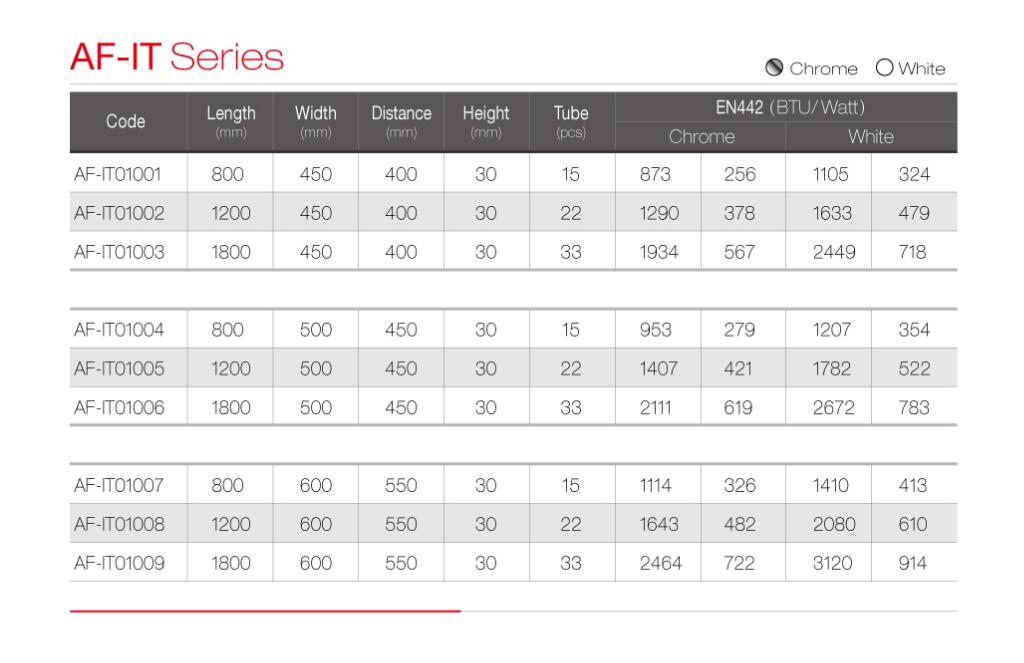

Model Dimension & Performance Table
| Model | Dimensions (LxW mm) | Tubes (pcs) | Chrome Output (W) | White Output (W) |
|---|---|---|---|---|
| AF-IT01001 | 800x450 | 15 | 256 | 324 |
| AF-IT01002 | 1200x450 | 22 | 378 | 479 |
| AF-IT01003 | 1800x450 | 33 | 567 | 718 |
| AF-IT01004 | 800x500 | 15 | 279 | 354 |
| AF-IT01005 | 1200x500 | 22 | 421 | 522 |
| AF-IT01006 | 1800x500 | 33 | 619 | 783 |
| AF-IT01007 | 800x600 | 15 | 326 | 413 |
| AF-IT01008 | 1200x600 | 22 | 482 | 610 |
| AF-IT01009 | 1800x600 | 33 | 722 | 914 |
