Technical Specifications
Product Overview
High-Performance Thermal Ventilation

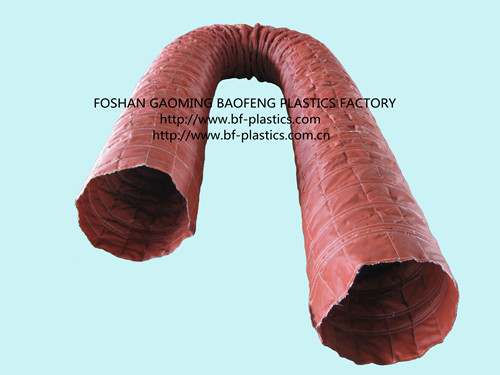

This heat-resistant insulated ventilation duct is engineered for demanding industrial environments requiring reliable hot and cold air supply and exhaust. Constructed with a robust three-layer design, it features fire-proof fiberglass fabric and specialized insulation to withstand temperatures up to 350°C. Its flexible, lightweight architecture allows for easy installation in confined spaces and convenient storage, making it an ideal solution for smelting, boiler operations, and high-temperature emission control.
Technical Specifications
Max Temperature
350 °C
Max Temperature
Material Layers
- Outer layer: Fire-proof fiberglass with silica gel coating
- Middle layer: Insulation layer
- Inner layer: Fire-proof fiberglass fabric
Construction Features
Helix steel wire supportWear-and-tear proofHeat resistant thread stitchingBlanket-style insulation
- Wall Thickness
- 1 mm
- Diameter Range
- 100mm - 1500mm
- Standard Lengths
- 5m10m
Applications
Industrial Applications
| Application Type |
|---|
| Hot air exhaust and supply for smelting |
| Boiler heat equipment ventilation |
| Motor vehicle exhaust emission |
| Factory solder smoke extraction |
