Technical Specifications
Product Overview
Secure Data Destruction Solution

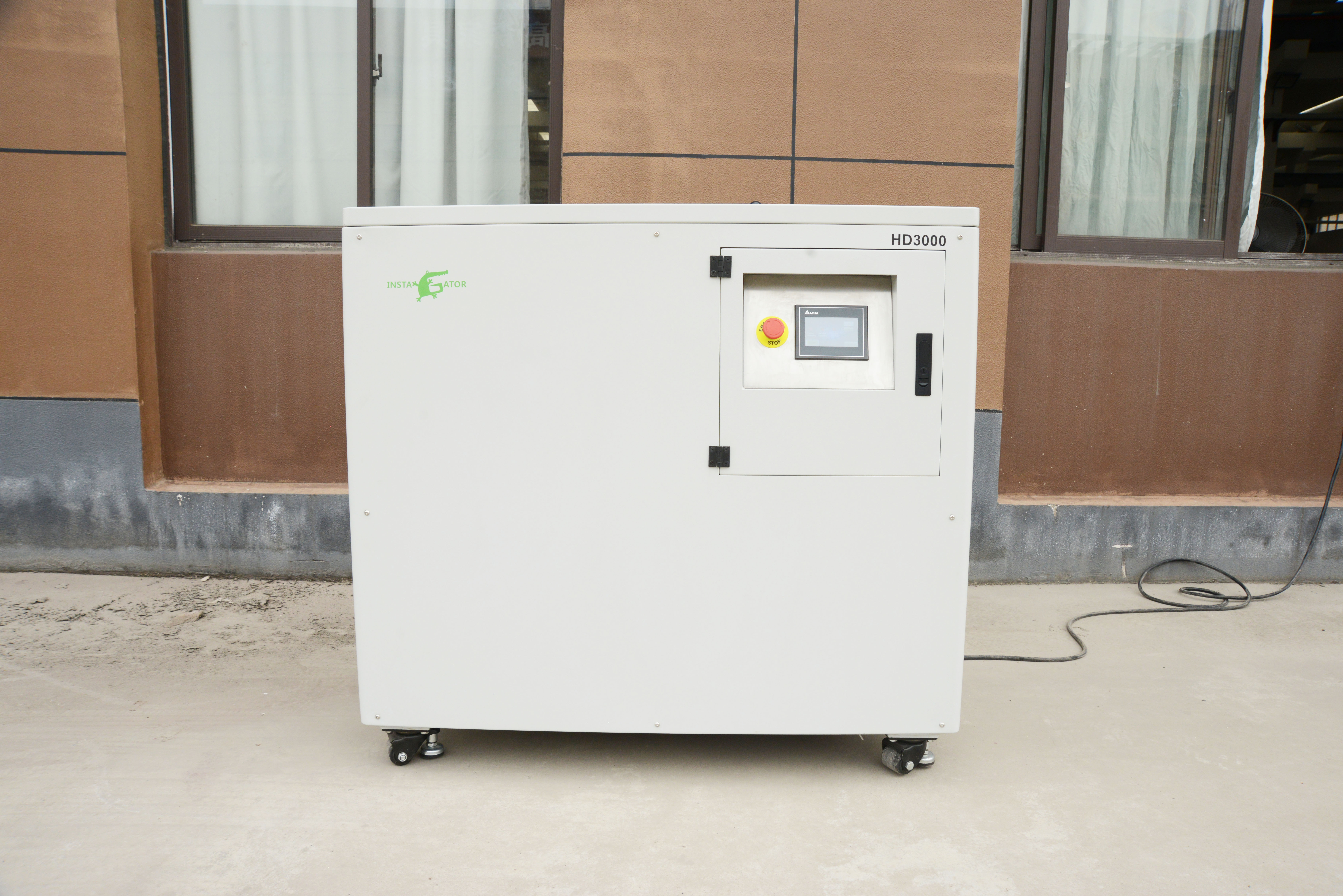

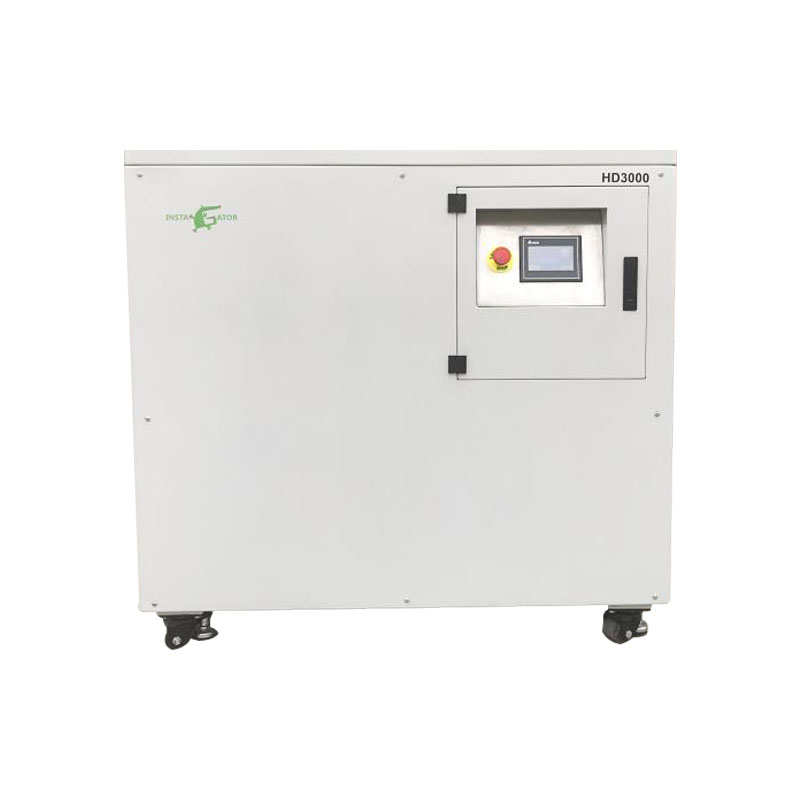

The HD3000 is a specialized industrial shredder engineered for the secure, physical destruction of both hard disk drives (HDD) and solid-state drives (SSD). Utilizing a dual-shaft cutting system with dedicated blades for different media types, it effectively reduces e-waste to small fragments, ensuring compliance with DIN 66399 H-4 security standards. Equipped with smart PLC controls and safety sensors, this machine provides a reliable and efficient method for organizations to guarantee data privacy and prevent unauthorized recovery.
Performance & Security
Security Level (DIN 66399)
H-4
Throughput
300 pcs
Hard Drives per Hour
20 s
Shredding Time
Output Shred Size
| Media Type | Width | Length |
|---|---|---|
| HDD | 18mm | 18-100mm |
| SSD | 10mm | 10-35mm |
Technical Specifications
Cutting System
- 2 Cutting Shafts
- 15 Total Blades
- 6 Blades for HDD (18mm thickness)
- 9 Blades for SSD (10mm thickness)
Insertion Width
| Media | Dimensions |
|---|---|
| HDD (with conveyor) | 155 x 110 mm |
| SSD | 15 x 85 mm |
- Power Requirements
- 2.2KW, Single Phase, 230V, 50HZ
Physical Dimensions
- Dimensions
- 1180(L) x 750(W) x 1150(H) mm
- Weight
- 690 KG
Features
- Control & Safety
- Touch ScreenPLC ControlSafety SensorsEmergency Stop
