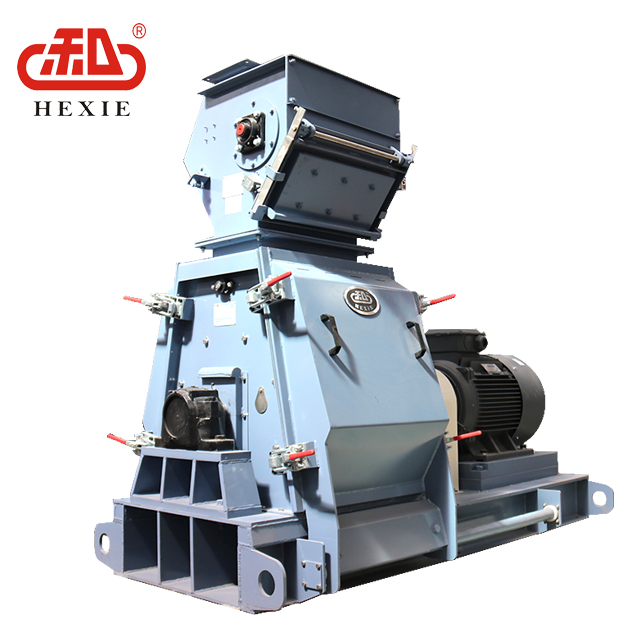

Grain Hammer Mill Pulverizer
This hammer mill is designed for grinding feed and grain. Its teardrop-shaped crushing chamber and adjustable hammer screen optimize crushing, increasing output by 20% compared to other models.
Technical Specifications
Product Overview
High-Efficiency Grain Pulverizing
This industrial hammer mill is widely utilized in feed, solvent, and brewing industries for effective material crushing. It features specialized wear-resistant tooth plates that disrupt material circulation to enhance shearing and collision effects, significantly improving crushing efficiency. The design incorporates a 'star triple' sieve hole arrangement to maximize screening area, while the linkage-type pressure screen mechanism ensures convenient operation and maintenance.
Safety & Operation
- Safety Features

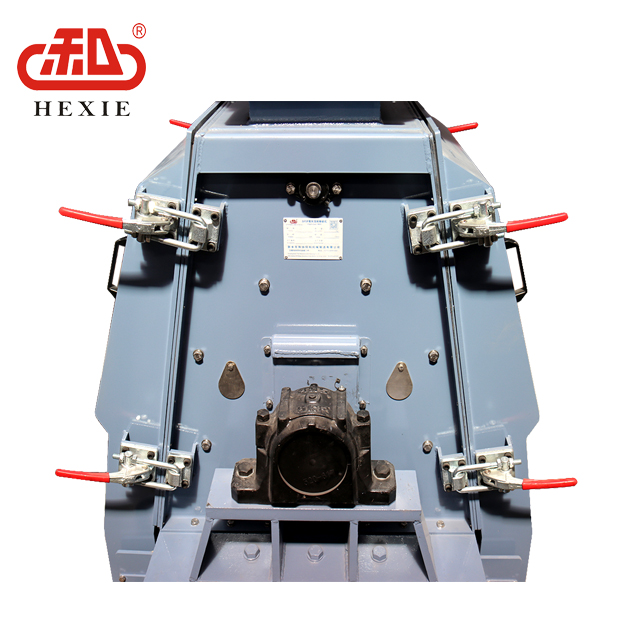

- Safety Interlock DeviceWear-resistant Tooth PlatesLinkage-type Pressure Screen
Technical Specifications
Performance Testing Conditions
- Raw material: Corn
- Moisture content: < 13%
- Bulk density: ≥ 0.71 t/m³
- Air intake: ≥ 55 m³/min
Model Specifications
| Model | Power (kW) | Screen Hole (mm) | Capacity (t/h) |
|---|---|---|---|
| SFSP66×60 | 55 | 1 | 3.0-5.0 |
| SFSP66×60 | 55 | 2 | 6.0-9.0 |
| SFSP66×60 | 75 | 1 | 4.0-6.0 |
| SFSP66×60 | 75 | 2 | 7.5-12 |
| SFSP66×80 | 90 | 1 | 5.0-7.0 |
| SFSP66×80 | 90 | 2 | 9.0-14 |
| SFSP66×80 | 110 | 1 | 6.0-8.0 |
| SFSP66×80 | 110 | 2 | 11-16 |
| SFSP66×100 | 132 | 1 | 8.0-12 |
| SFSP66×100 | 132 | 2 | 14-20 |
| SFSP66×100 | 160 | 1 | 11-15 |
| SFSP66×100 | 160 | 2 | 17-24 |
