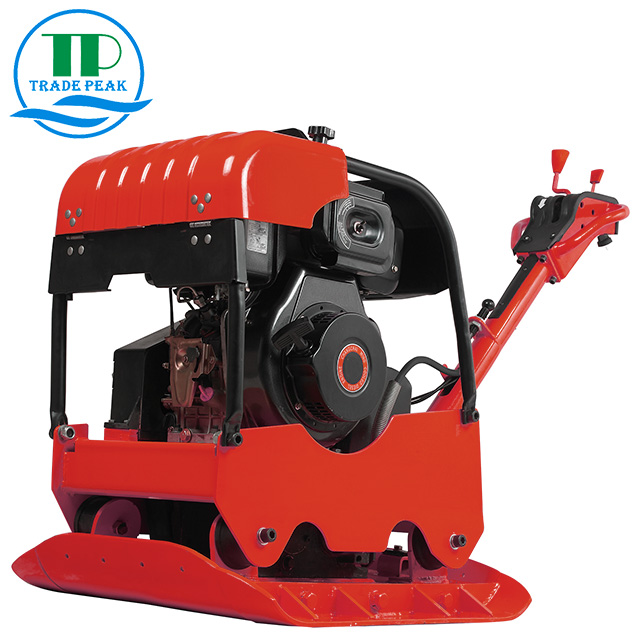

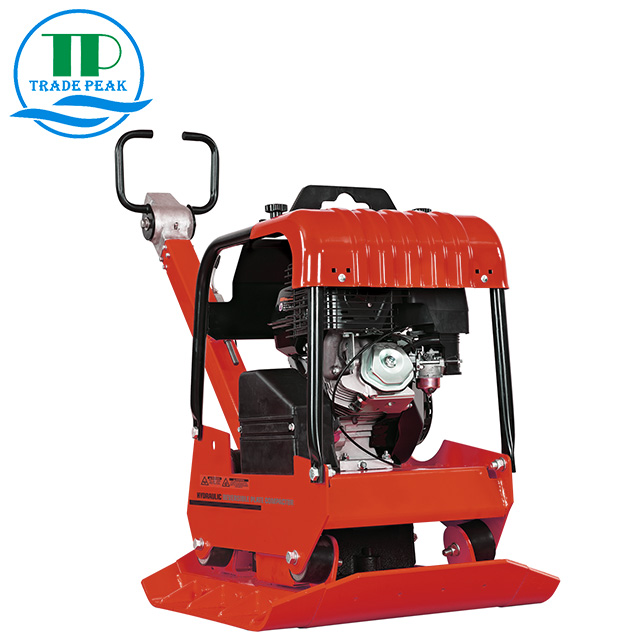

Gasoline Plate Compactor with Folding Handle
This plate compactor features a gasoline power system for a more powerful force and better compaction effect. Its folding handle allows for easy transportation and storage.
Technical Specifications
Overview
High-Performance Compaction
This gasoline plate compactor is engineered for demanding construction and landscaping tasks, offering a powerful force for superior compaction results. The open plate design ensures self-cleaning during operation, while the sealed belt cover prevents sand and soil ingress for increased longevity. Designed with operator comfort in mind, the unit features low vibration levels and a folding handle for convenient transportation and storage.
Performance Metrics
Key Performance Indicators
39,000 N
Centrifugal Force
3,750 vpm
Exciter Speed
90 cm
Compaction Depth
21 m/min
Travel Speed
Technical Specifications
Technical Data
| Specification | Gasoline Model | Diesel Model |
|---|---|---|
| Engine Displacement | 389 cc | N/A |
| Power Output | 13 HP | 9.0 HP |
| Operation Weight | 255 kg | 251 kg |
- Plate Size
- 870 x 670 mm
Features & Accessories

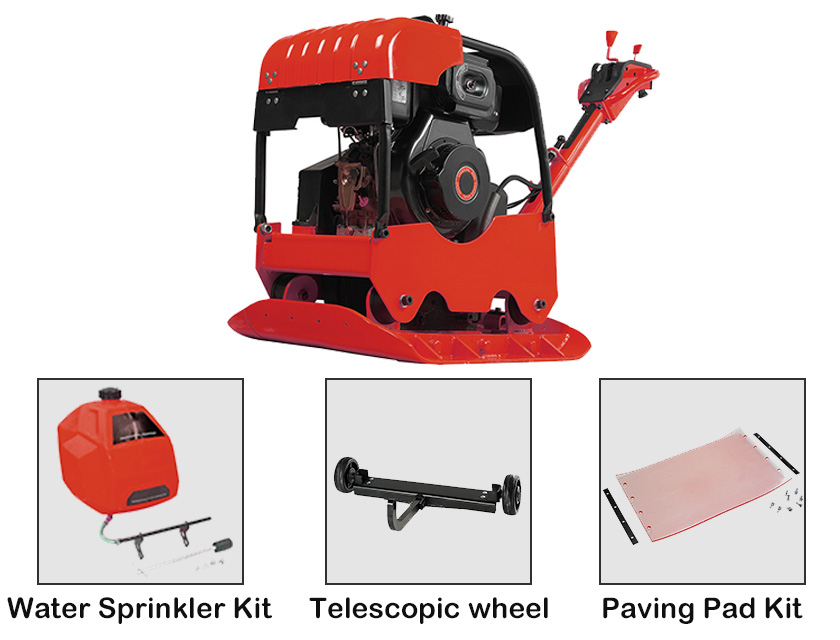

Available Accessories
- Water Sprinkler Kit
- Telescopic Wheel Kit
- Paving Pad Kit
- Key Features
- Folding HandleSelf-Cleaning Open PlateSealed Belt CoverLow Vibration DesignE-Start
