Gasoline Plate Compactor with Folding Handle
This plate compactor features a folding handle for easy storage and transportation. Its open plate design facilitates self-cleaning during operation.
Technical Specifications
Overview
High-Performance Gasoline Plate Compactor
This gasoline-powered plate compactor is designed for superior compaction performance with a low-vibration system to enhance operator comfort. It features a folding handle for convenient storage and transport, alongside an open plate design that ensures self-cleaning during operation. Built for durability, it includes a sealed belt cover to protect internal components from sand and soil ingress.
Performance Metrics
Key Performance Metrics
11,000 N
Centrifugal Force
25 cm
Compaction Depth
25 m/min
Travel Speed
Engine Specifications
- Engine Displacement
- 163 cc
- Engine Power
- 5.5 HP
- Fuel Type
- Gasoline
Technical Details
- Plate Size
- 535 x 371 mm
- Exciter Speed
- 5500 vpm
- Operation Weight
- 64 kg
Key Features
Design Features
- Folding handle for easy transportation and storage
- Open plate provides self-cleaning functionality
- Sealed belt cover to prevent sand and soil entry
- Low vibration combined with high compaction performance
- Gasoline power system for better compaction effect

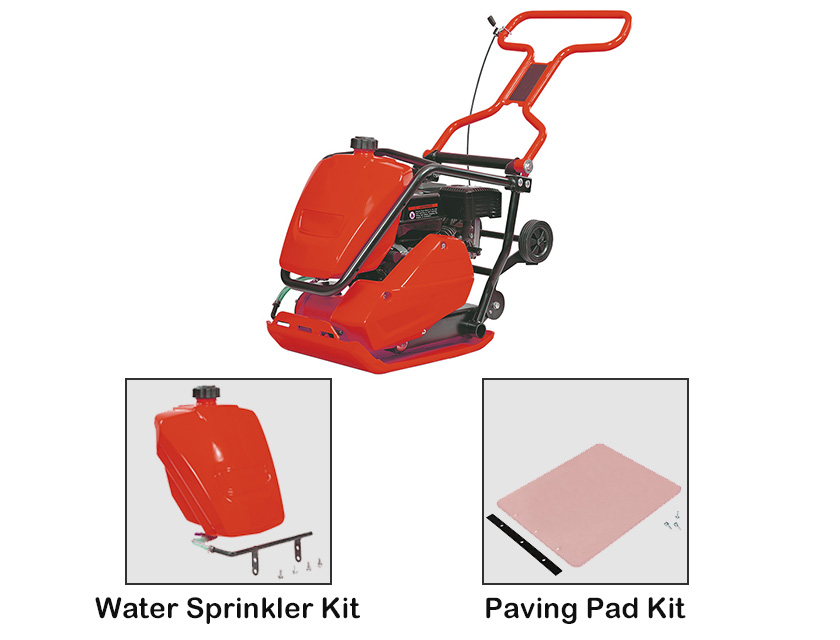

Optional Accessories
- Optional Kits
- Water Sprinkler KitPaving Pad Kit
