Gasoline Plate Compactor with Folding Handle
This gasoline plate compactor features a folding handle, facilitating convenient transportation and storage. Its open plate design promotes self-cleaning, while the sealed belt cover prevents sand and soil ingress.
Technical Specifications
Product Overview
High-Performance Gasoline Plate Compactor
This gasoline-powered plate compactor is engineered for superior compaction performance in construction and landscaping projects. Featuring a robust engine and durable steel plate, it delivers high impact force with low vibration, ensuring efficient consolidation of granular soils and asphalt. The design includes a folding handle for convenient transportation and storage, making it an ideal choice for professional site preparation.
Technical Specifications
Engine Performance
196 cc
Displacement
6.5 HP
Power
Compaction Capabilities
| Metric | Value |
|---|---|
| Centrifugal Force | 25000 N |
| Exciter Speed | 5500 vpm |
| Compaction Depth | 35 cm |
| Travel Speed | 32 m/min |
Design & Build
Physical Dimensions
560 mm
Plate Length
520 mm
Plate Width
108 kg
Operation Weight
Key Features
- Folding handle for easy transportation and storage
- Open plate design for self-cleaning
- Sealed belt cover to prevent sand and soil ingress
- Low vibration system for improved operator comfort

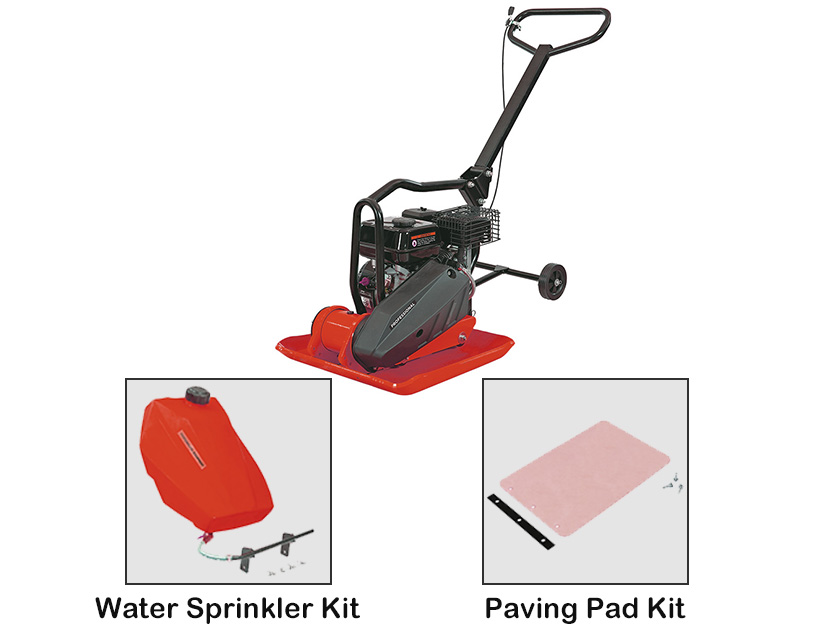

- Available Accessories
- Water Sprinkler KitPaving Pad Kit
