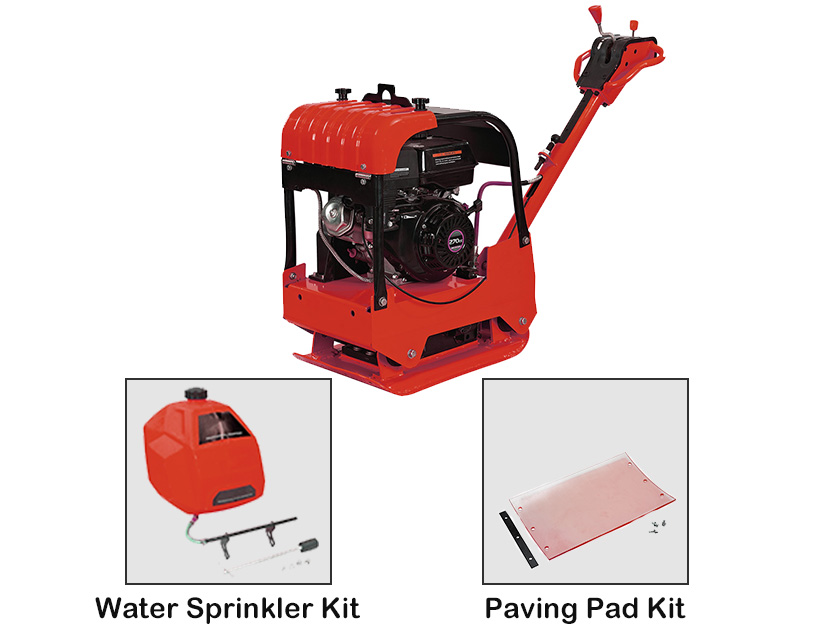

Gasoline Plate Compactor
This plate compactor features a gasoline power system for a better compaction effect. It has low vibration combined with high compaction performance.
Technical Specifications
Product Overview
High-Performance Compaction
This gasoline-powered plate compactor is engineered for superior soil compaction in construction and landscaping projects. It features an open plate design for self-cleaning and a sealed belt cover to protect internal components from sand and soil. Designed with the operator in mind, it combines high compaction force with low vibration, ensuring efficient and comfortable operation.
Key Features
- Key Features
- Folding handleSelf-cleaning open plateSealed belt coverLow vibrationHigh compaction force
Technical Specifications
- Plate Size
- 650x420 mm
- Compaction Depth
- 50 cm
- Travel Speed
- 15 m/min
- Centrifugal Force
- 30500 N
- Exciter Speed
- 4000 vpm
Power System
Power Output
- 9.0 HP (Gasoline)
- 6.0 HP (Diesel)
- E-Start
- Engine Displacement
- 270 cc
Weight and Handling
Transportation
Folding handle
- Operation Weight
- 154 kg / 158 kg
