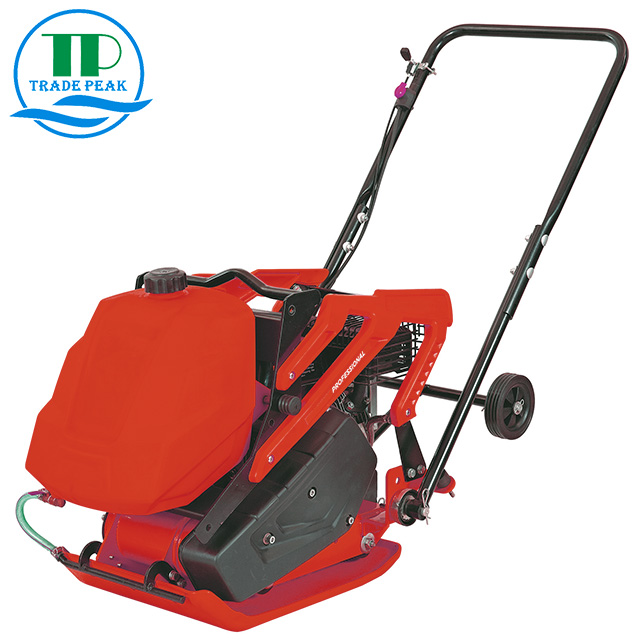

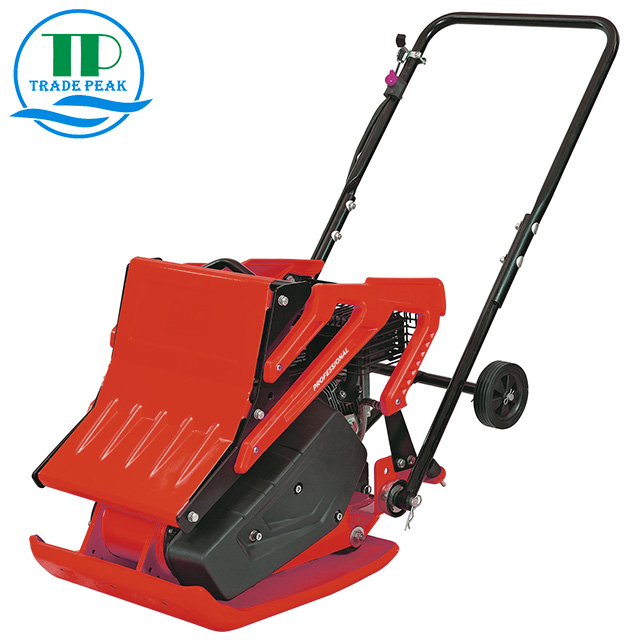

Gasoline Plate Compactor 535x370 mm
This gasoline plate compactor features a folding handle for easy storage and transportation. Its open plate design provides self-cleaning.
Technical Specifications
Overview
Professional Compaction Performance
This gasoline-powered plate compactor is designed for high-efficiency soil compaction in construction and landscaping projects. Featuring an open plate design for self-cleaning and a sealed belt cover to protect internal components, it ensures durability and consistent performance. The unit combines low vibration with high compaction force, making it an ideal choice for preparing foundations, pathways, and driveways.
Technical Specifications
- Plate Size
- 535x370 mm
- Centrifugal Force
- 11000 N
- Exciter Speed
- 5500 vpm
- Compaction Depth
- 25 cm
- Travel Speed
- 25 m/min
- Operation Weight
- 70 kg
Engine & Power
Engine Details
163 cc
Displacement
5.5 HP
Power Output
Features
Key Features
- Folding handle for easy transportation and storage
- Open plate design for self-cleaning
- Sealed belt cover to prevent sand and soil ingress
- Low vibration system for operator comfort
- Powerful gasoline system

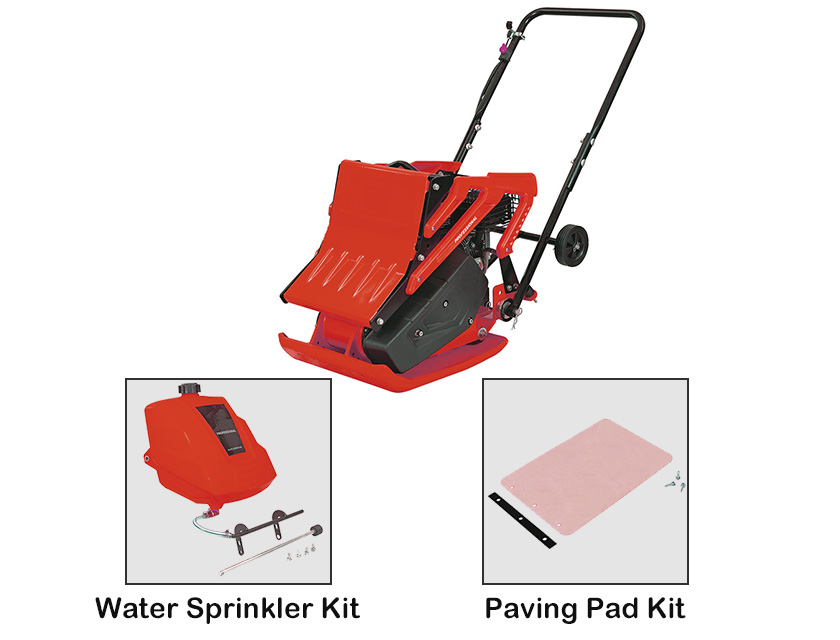

- Available Accessories
- Water Sprinkler KitPaving Pad Kit
