Gasoline Plate Compactor
This plate compactor features a folding handle for easy transportation and storage. Its gasoline power system delivers powerful force for a better compaction effect.
Technical Specifications
Overview
High-Performance Gasoline Plate Compactor
This gasoline-powered plate compactor is designed for professional-grade soil compaction, offering excellent force and efficiency for construction and landscaping tasks. It features a self-cleaning open plate design and a sealed belt cover to protect internal components from debris. With its folding handle and low-vibration operation, this machine balances high compaction performance with ease of transport and operator comfort.
Key Features
Key Features
- Folding handle for easy transportation and storage
- Open plate design for self-cleaning
- Sealed belt cover prevents sand and soil ingress
- Low vibration design for increased operator comfort
- High compaction force gasoline power system
Technical Specifications
Engine Power
163 cc
Engine Displacement
5.5 HP
Horsepower
Compaction Performance
| Metric | Value |
|---|---|
| Centrifugal Force | 11000 N |
| Exciter Speed | 5500 vpm |
| Compaction Depth | 25 cm |
| Travel Speed | 25 m/min |
Physical Dimensions
61 kg
Operation Weight
- Plate Size
- 530 x 370 mm

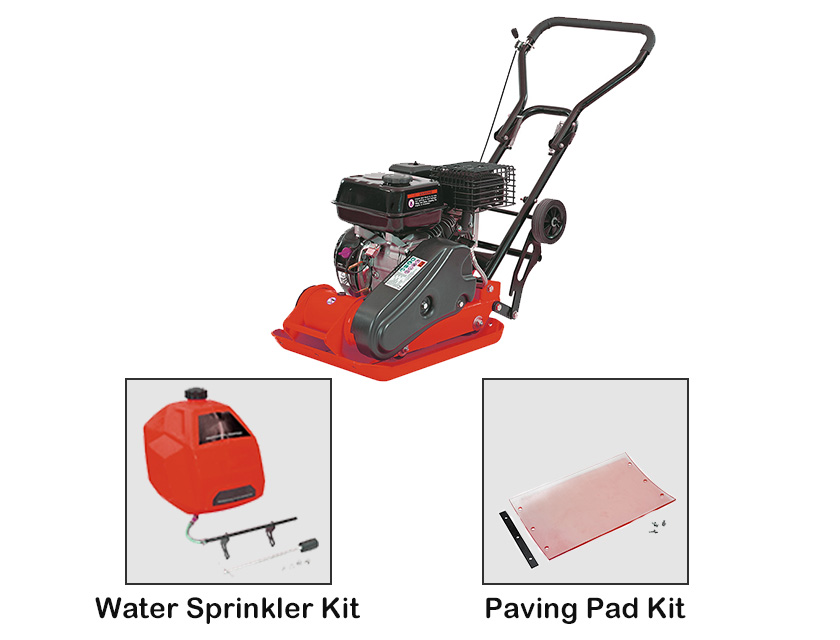

Accessories
Optional Accessories
Water Sprinkler KitPaving Pad Kit
