Gasoline Plate Compactor
This plate compactor features a gasoline power system for a better compaction effect. It has a folding handle for easy transportation and storage.
Technical Specifications
Product Overview
High-Performance Compaction
This gasoline-powered plate compactor is engineered for demanding construction, landscaping, and road maintenance projects. It combines a powerful engine with a durable steel base plate to deliver high compaction force and effective results on various surfaces. Designed with operator comfort in mind, the unit features a low-vibration system and a foldable handle for convenient transport and storage.
Technical Specifications
Key Performance Metrics
25,000 N
Centrifugal Force
5,500 vpm
Exciter Speed
35 cm
Compaction Depth
32 m/min
Travel Speed
Technical Data
| Specification | Value |
|---|---|
| Plate Size | 580 x 500 mm |
| Operation Weight | 106 kg |
| Engine Displacement | 196 cc |
| Engine Power | 6.5 HP |
Design & Features
Key Features
- Folding handle for easy transportation and storage
- Open plate design for self-cleaning
- Sealed belt cover to prevent sand and soil ingress
- Low vibration system for improved operator comfort

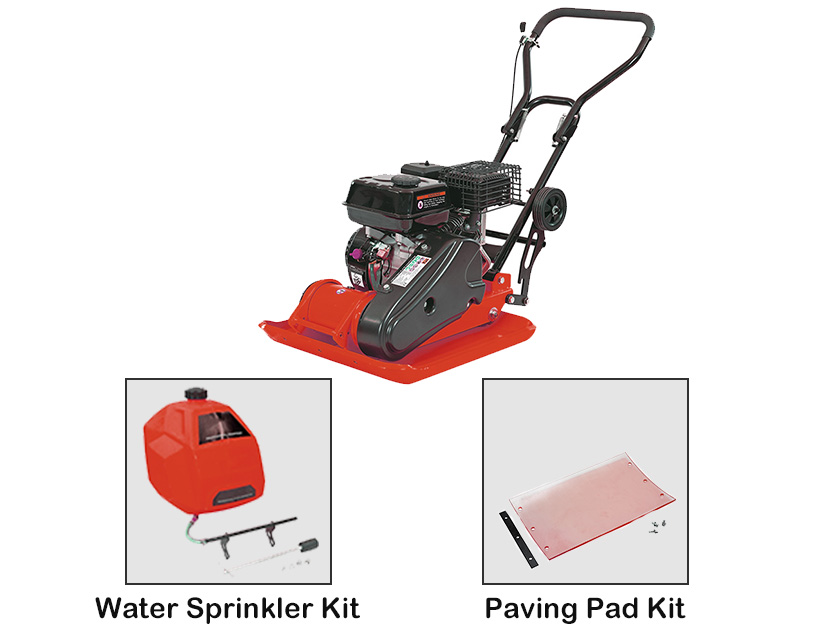

- Available Accessories
- Water Sprinkler KitPaving Pad Kit
