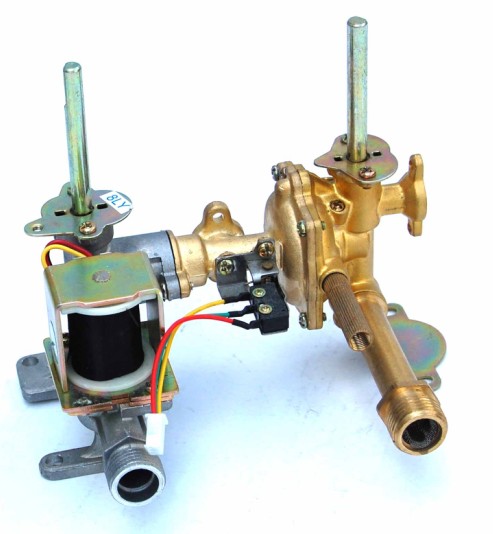

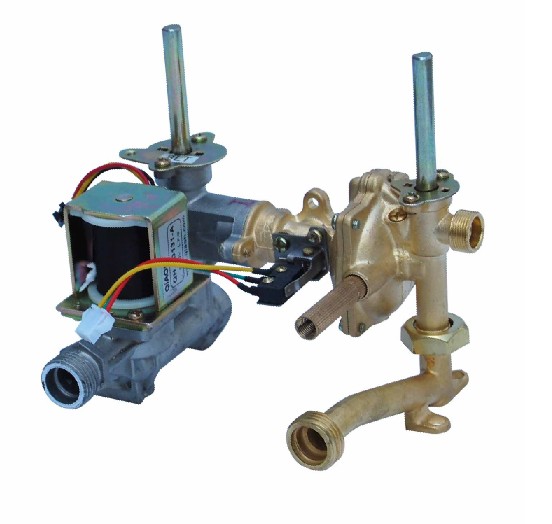

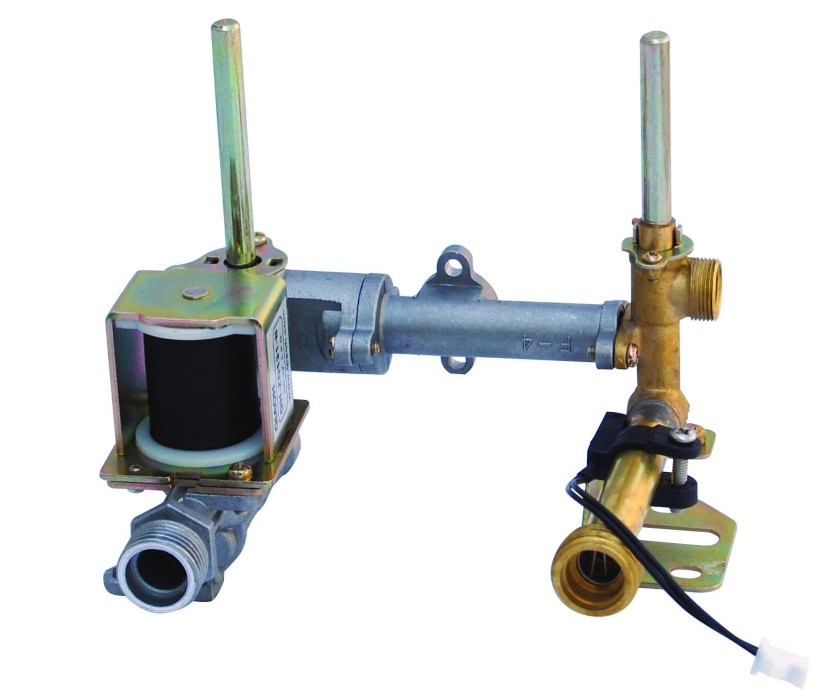

Gas Water Heater Control Valve
This valve controls the flow of gas to the water heater burner for safe and efficient operation. It includes a pressure regulator to maintain consistent gas pressure and a solenoid valve to shut off the gas supply in case of a malfunction.
Technical Specifications
Product Overview
Gas Water Heater Control Valve
This high-performance control valve is designed for reliable gas regulation in water heater systems. It features advanced solenoid technology for precise flow control and is available in configurations suitable for both zero water pressure and standard pressure environments. Built with durable materials, it ensures safe and efficient operation across varying gas types and thermal conditions.
Technical Specifications
- Compatible Gas Types
- Natural GasLPGManufactured Gas
- Gas Valve Diameter
- 18 mm
- Solenoid Voltage
- < DC3V
- Air Tightness Leakage
- < 0.03 L/H
- Operating Temperature Range
- -20 to 60 °C
Performance Comparison
Performance Comparison
| Feature | Zero Pressure Valve | Standard Valve |
|---|---|---|
| Start Pressure | ≥ 0.02 MPa | 0.01 - 0.05 MPa |
| Relief Valve Device | Not Included | 0.9 ± 0.05 MPa |
