Gantry Type CNC Machining Center
The gantry type CNC machining center is designed for machining large and complex parts. It features a robust gantry structure for enhanced stability and accuracy during machining operations.
Technical Specifications
Overview
High-Performance Gantry Machining Center

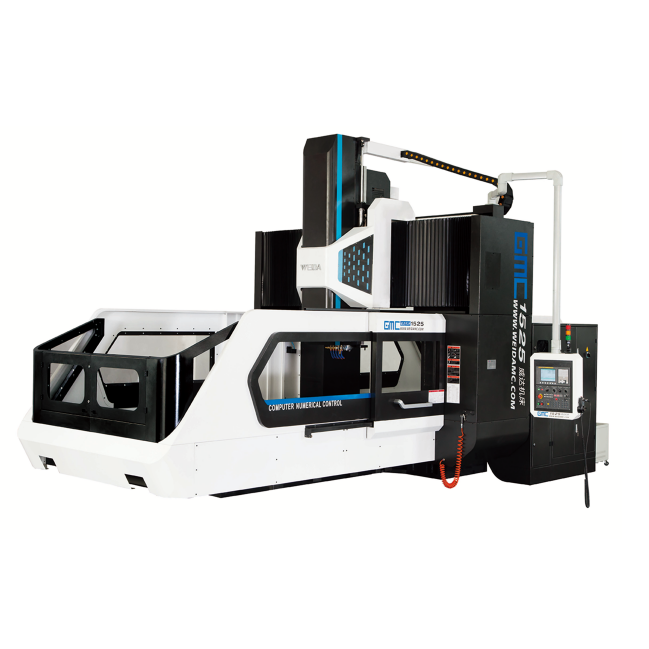

The GMC1530 Gantry Machining Center is a robust, high-precision solution designed for heavy-duty industrial applications. Featuring a fixed beam and column gantry structure, it provides exceptional rigidity and shock absorption for consistent accuracy across large-scale workpieces. This versatile machine supports a wide range of functions, including milling, boring, drilling, and tapping, making it an ideal choice for demanding sectors like automotive, marine, and mold making.
Technical Capabilities
Processing Functions
- Milling
- Boring
- Drilling
- Expanding
- Reaming
- Tapping
- Countersinking
- Suitable Industries
- AutomotiveMarinePrintingPackagingTextileMilitaryMold Making
Structural Design
Stress Relief Process
- Aging treatment
- Tempering
- Secondary aging treatment
- Machine Structure
- Fixed beam and fixed column gantry frame
- Material Composition
- High-grade Mi Hanna cast iron (3D finite element optimized)
Axis Configuration
Axis Drive Technology
| Axis | Guideway Type |
|---|---|
| X-Axis | Heavy-duty roller-type linear guides |
| Y-Axis | Heavy-duty roller linear guideways |
| Z-Axis | Six-sided hard rail (trapezoidal ram) |
Operational Features
Spindle Configuration
Belt Spindle (Standard)Optional ZF 2K250 Gearbox
Safety & Protection
- Full machine enclosure
- Stainless steel telescopic bed cover
- Organ-type beam cover
- Labyrinth dustproofing
- Tricoloured status light
Maintenance Systems
- Centralized automatic lubrication
- Auto cooling device
- Coolant recovery and recycle
- Pneumatic tool cleaning
