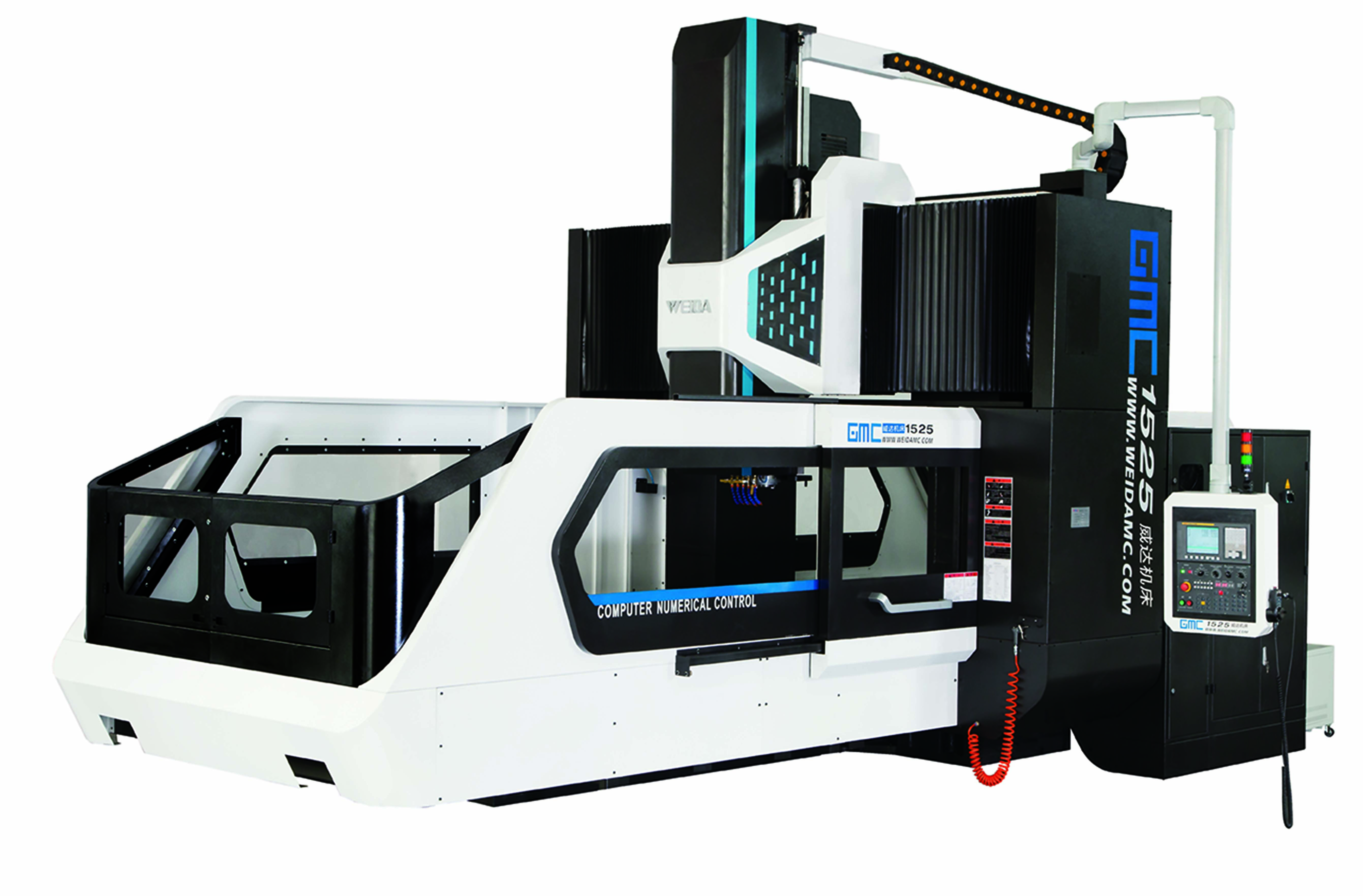

Gantry Type CNC Machining Center
This gantry type CNC machining center is designed for high-precision milling and machining. It features a rigid structure that enhances stability and accuracy, making it ideal for machining large workpieces with complex geometries.
Technical Specifications
Overview
Gantry Type CNC Machining Center
This high-rigidity gantry machining center is engineered for demanding milling, boring, drilling, and tapping operations. Featuring a robust box-structure design and high-grade castings, it ensures exceptional stability and shock absorption for large-scale workpieces. The machine's versatile configuration allows for manual head changes, enabling complex multi-process machining in a single clamping setup.
Performance Metrics
Axis Configuration
| Axis | Drive/Guide Type |
|---|---|
| X-Axis | AC Servo Motor / Heavy Duty Linear Roller Guide |
| Y-Axis | AC Servo Motor / Linear-Box Combination |
| Z-Axis | AC Servo Motor / Rectangular Hard Rail |
- Processing Functions
- MillingBoringDrillingTapping
Technical Specifications
Construction Materials
- High-grade castings
- Aging-treated bed and column
- Box structure design
- X-Axis Stability
- Double-layer reinforcing rib and hollow anti-vibration structure
- Z-Axis Precision
- Six-sided ground rectangular hard rail, hand-scraped for accuracy
- Lead Screws
- High precision ball screws with optimized pretension force
Features
Spindle Capabilities
Automatic PositioningRotation Detecting SystemTapping Function
- Included Systems
- Pneumatic SystemLubrication SystemCooling SystemCNC ControlTool Magazine
