Galvanized Hexagonal Steel Wire Mesh for Fencing
This hexagonal wire mesh is constructed from galvanized steel for enhanced corrosion resistance and durability. Its uniform hexagonal weave provides strength and flexibility for diverse applications including fencing, enclosures, and garden protection.
Technical Specifications
Product Overview
Versatile Hexagonal Wire Mesh
This galvanized hexagonal wire mesh, commonly known as chicken wire, offers a durable and cost-effective solution for various fencing and containment needs. Constructed from interwoven carbon steel wire, it provides excellent flexibility and strength for applications ranging from poultry enclosures and garden protection to industrial reinforcement. With options for electro-galvanized, hot-dipped, or PVC-coated finishes, this mesh is designed to withstand outdoor environments while maintaining its structural integrity.
Key Features
- Available Finishes
- Electro GalvanizedHot-Dipped GalvanizedPVC CoatedPlain Carbon Steel
- Twist Patterns
- Straight TwistReverse TwistDouble-Direction Twist
Technical Specifications
Standard Mesh Specifications
| Mesh Size | BWG Range | Wire Dia (mm) | Width Limit |
|---|---|---|---|
| 3/8" | 27-23 | 0.41-0.64 | 2M |
| 1/2" | 27-22 | 0.41-0.71 | 2M |
| 5/8" | 27-22 | 0.41-0.71 | 1.22M |
| 3/4" | 26-20 | 0.46-0.89 | 2M |
| 1" | 25-19 | 0.51-1.07 | 2M |
| 1-1/4" | 24-18 | 0.56-1.24 | 2M |
| 1-1/2" | 23-16 | 0.64-1.65 | 2M |
Applications
Primary Applications
- Poultry and pet enclosures
- Garden and tree guards

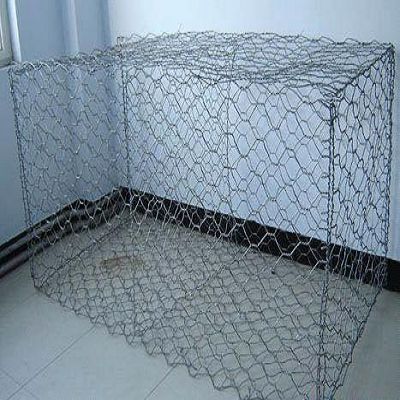

- Flood control (Gabion boxes)
- Construction reinforcement
- Plastering and road laying
- Splinter-proof glass reinforcement
