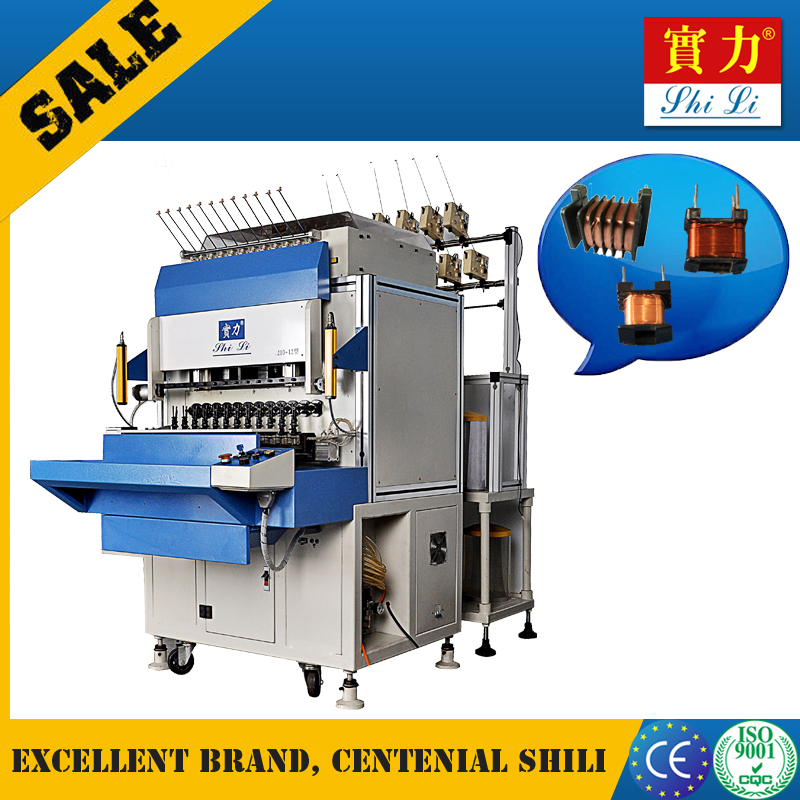

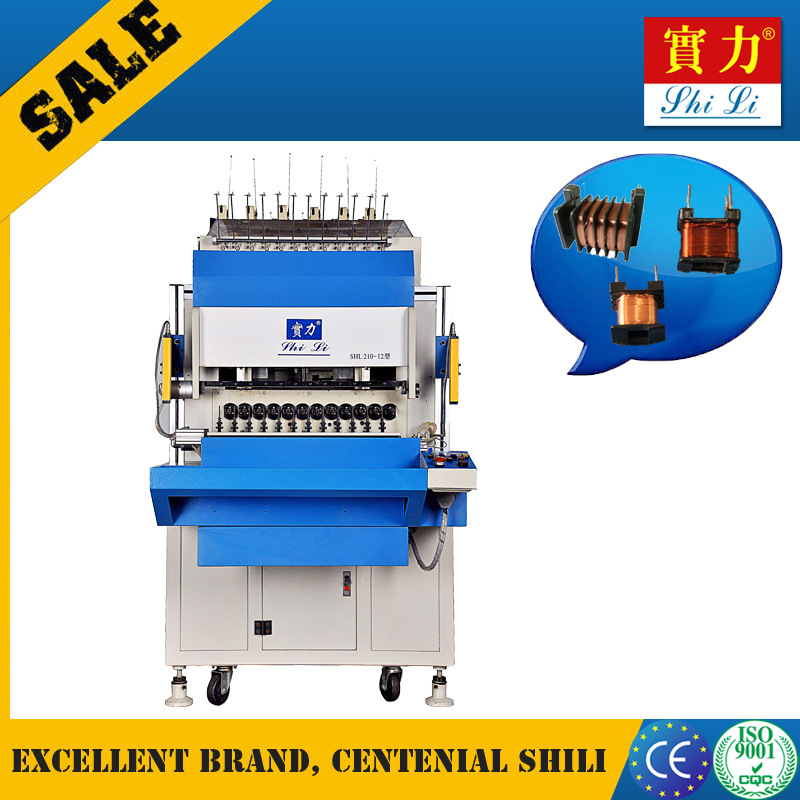

Full Automatic Coil Winding Machine
This machine is equipped with a multi-axis motion control system for stable and reliable operation. It achieves high speed, accuracy and production volume.
Technical Specifications
Overview
High-Efficiency Automatic Coil Winding Solution
This full automatic coil winding machine is engineered for high-speed, high-precision production in the electronics manufacturing industry. It integrates a powerful industrial PC control system with premium international components, including Japanese servo motors and bearings, to ensure long-term stability and consistent quality. With advanced features like automatic loading and unloading and precision tension control, it significantly increases manufacturing throughput while minimizing manual intervention.
Technical Specifications
Precision Components
- GALIL USA multi-axis motion control system
- Japanese high-power servo motors
- Japanese Bando belts
- NTN bearings
- SMC cylinders
- TBI Taiwan ball screw and guide rails
- Certifications
- CECQCISO
Functional Features
Winding Capabilities
- 0° and 90° angle wire wrapping
- Precision tension control
- Movable wire clamping with zero residual line
- Thread breakage detection
Operational Features
- Windows-based high-level interface
- Password-protected program storage
- Automatic loading and unloading
- Optional twisting function
- External display for parameter security
