Fuel Dispenser with Electronic Display
This fuel dispenser is designed for accuracy and safety in high-volume dispensing environments. It features a precise metering system, electronic display, and secure payment integration.
Technical Specifications
Overview
High-Performance Fuel Dispenser
This advanced fuel dispenser is engineered for high-security, reliable performance in demanding commercial environments. It features the latest 6200 main board technology, ensuring stability and safety, alongside a high-precision flow meter designed for a long lifecycle of up to 10,000,000 liters. With intelligent features like voice broadcast, printer integration, and adjustable display brightness, it provides a seamless experience for both operators and customers.
Performance Metrics
Measurement Accuracy
0.25 %
Accuracy
80 dB(A)
Max Noise Level
- Flow Rate Range
- 5-50 L/Min or 8-80 L/Min
Technical Specifications
- Power Supply
- AC380V or AC220V (-15% to +10%)
- Motor Output Power
- 750W1000W
- Operating Temperature Range
- -40°C to +55°C
- Intake Vacuum
- 54 KPA
Configuration Options

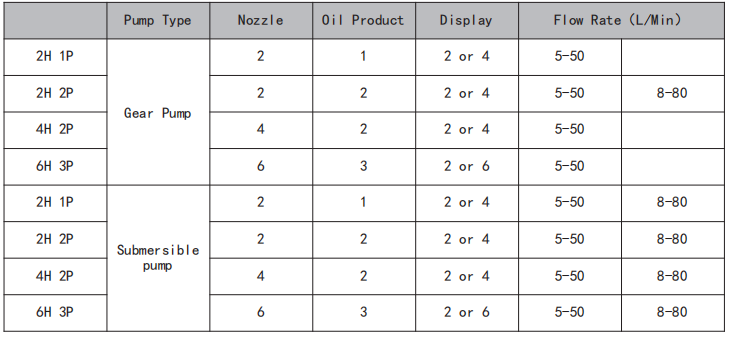

Pioneer Series Configuration Table
| Pump Type | Model | Nozzles | Oil Products | Flow Rate (L/Min) |
|---|---|---|---|---|
| Gear Pump | 2H 1P | 2 | 1 | 5-50 |
| Gear Pump | 2H 2P | 2 | 2 | 5-50, 8-80 |
| Gear Pump | 4H 2P | 4 | 2 | 5-50 |
| Gear Pump | 6H 3P | 6 | 3 | 5-50 |
| Submersible Pump | 2H 1P | 2 | 1 | 5-50, 8-80 |
| Submersible Pump | 2H 2P | 2 | 2 | 5-50, 8-80 |
| Submersible Pump | 4H 2P | 4 | 2 | 5-50, 8-80 |
| Submersible Pump | 6H 3P | 6 | 3 | 5-50, 8-80 |
Features
Intelligent System Features
- Intelligent Voice Broadcast System
- Integrated Printer Bill System
- Adjustable Display Brightness
- POS Smart Upgrade Compatibility
- Moistureproof and Rustproof Shell
