Technical Specifications
Overview
High-Efficiency Automatic Bending

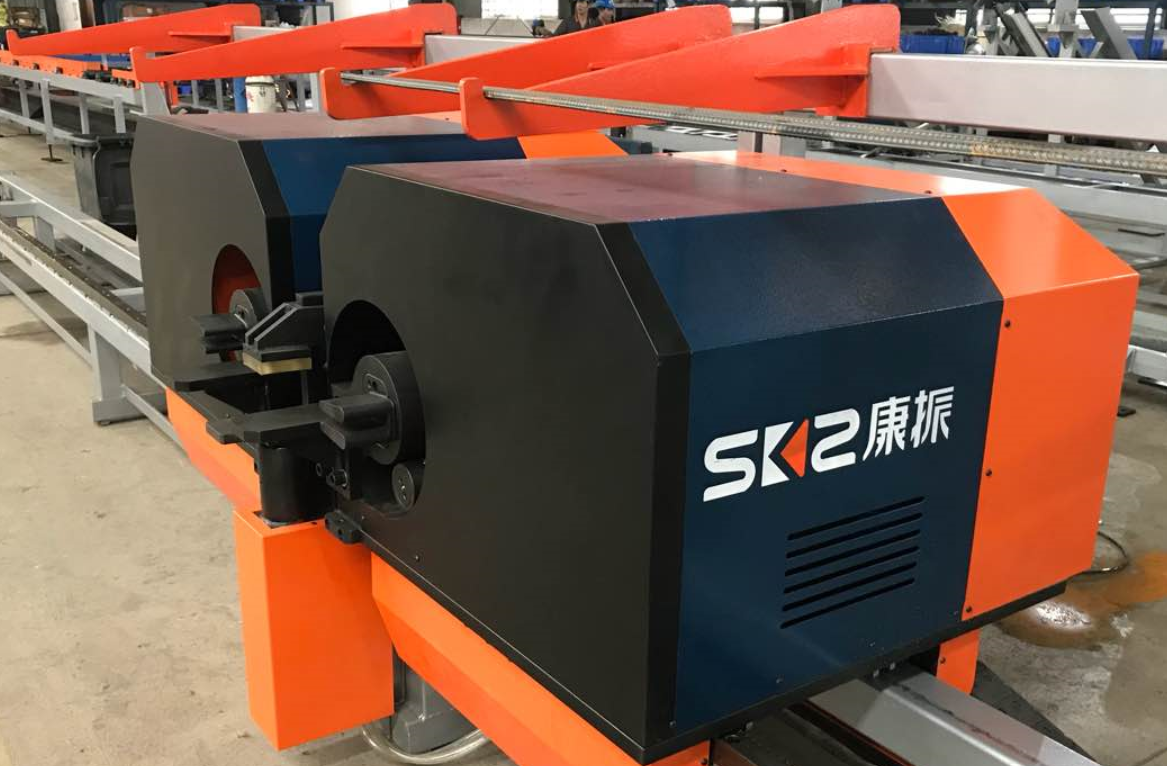

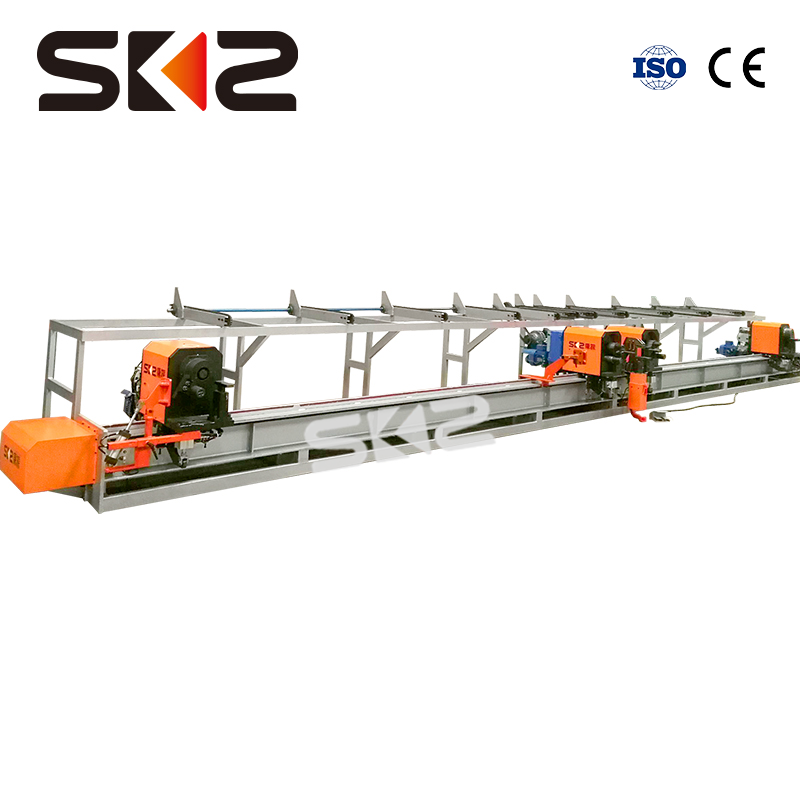

This numerically controlled, fully automatic steel bar bending machine is engineered for high-precision operations in demanding construction environments like high-rise buildings and large-scale infrastructure projects. Featuring a modular, four-head design, it enables simultaneous multi-unit processing and complex shape formation, such as U-shaped bars. Its advanced CNC servo control system ensures high efficiency and repeatable accuracy, significantly reducing operational costs.
Technical Specifications
- Model
- KZ4L32X
- Dimensions (L x W x H)
- 12600 x 2200 x 1480 mm
- Machine Weight
- 5300 kg
- Power Supply
- 380V 50Hz
- Rated Power
- 14 KW
Performance Metrics
Bending Performance
32 mm
Max Rebar Diameter
66 °/s
Bending Speed
0.6 Mpa
Min Cylinder Pressure
Operating Tolerances
- Length tolerance: ±1 mm
- Bending tolerance: ±1°
- Bending Angle Range
- +180° to -120°
Capacity Table
Rebar Processing Capacity
| Diameter (mm) | Max Qty (Pcs) |
|---|---|
| 10 | 6 |
| 12 | 5 |
| 14 | 4 |
| 16 | 3 |
| 20 | 3 |
| 22 | 2 |
| 25 | 2 |
| 28 | 1 |
| 32 | 1 |
Certifications
Standards & Compliance
CEISO
