Four-Cylinder Diesel Engine 56-61kW
This four-cylinder diesel engine provides between 56kW and 61kW of power. It is designed for various industrial applications requiring a reliable power source.
Technical Specifications
Overview

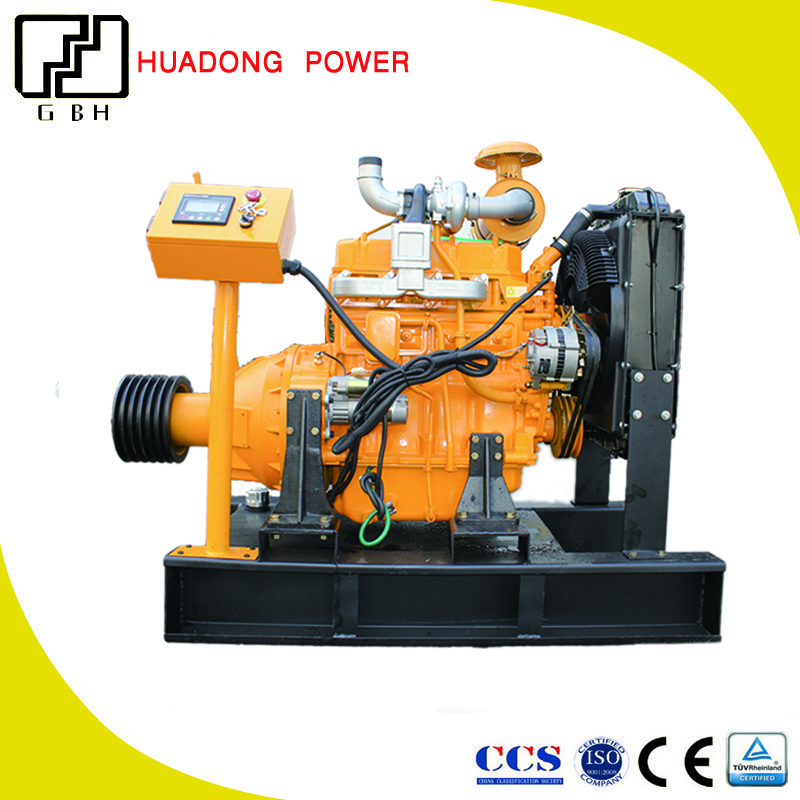

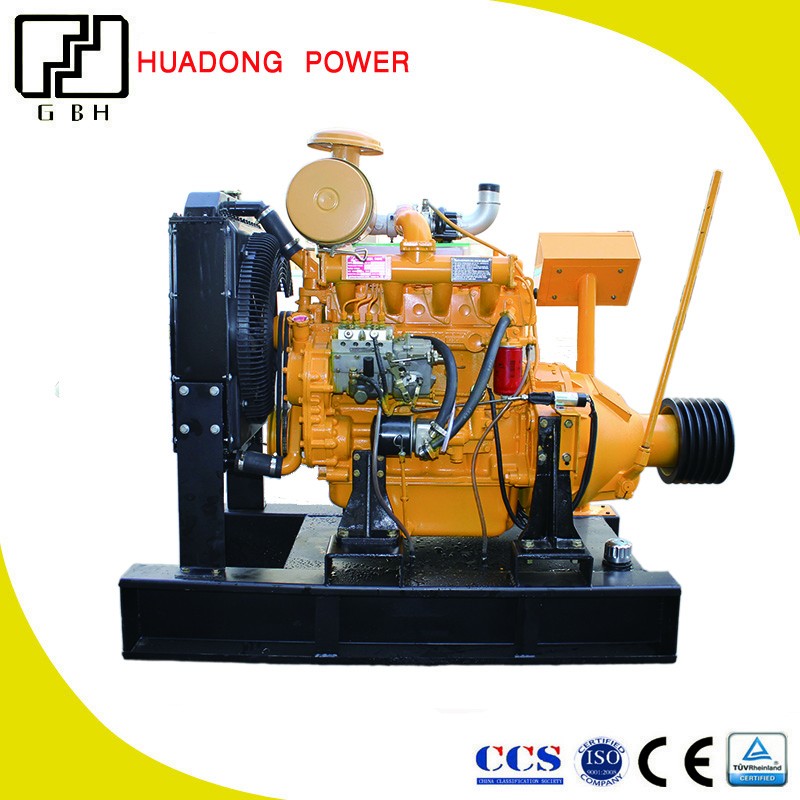

High-Performance Ricardo Series Diesel Engine
This four-stroke, water-cooled diesel engine utilizes direct injection and high-speed combustion technology. Designed for reliability and economy, it offers high power output and easy starting capabilities in temperatures down to -10°C. With a first overhaul period of 8,000 hours, it provides a dependable and durable solution for industrial and commercial applications.
Technical Specifications
Key Performance Indicators
56 kW
Prime Power @ 1500rpm
61 kW
Prime Power @ 2000rpm
8,000 hours
Time to First Overhaul
Model Specifications
| Model | Bore (mm) | Stroke (mm) | Disp (L/cyl) |
|---|---|---|---|
| ZH495G | 95 | 115 | 3.26 |
| ZH495ZG | 95 | 115 | 3.26 |
| ZH4100G | 100 | 115 | 3.61 |
| ZH4100ZG | 100 | 115 | 3.61 |
| R4105P | 105 | 125 | 4.33 |
| R4105ZP | 105 | 125 | 4.33 |
- Engine Configuration
- In-Line4-CylinderFour-StrokeWater-CooledDirect Injection
Applications
Recommended Applications
- Power Generation
- Marine Power Systems
- Agricultural Machinery
- Construction Equipment
- Stationary Power
- Emergency Backup Systems
Certifications
Standards and Certifications
ISO 9001:2015CE CertifiedCCS Type ApprovalISO 12100:2010
