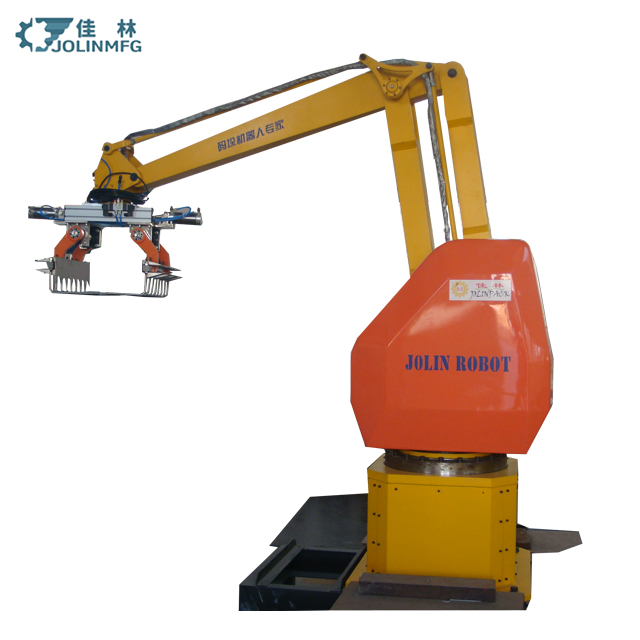

Four-Axis 160 kg Palletizing Robot
This four-axis palletizing robot automates the stacking of goods. It has a loading capacity of 160 kg and is engineered for efficient and reliable performance in packaging and material handling processes.
Technical Specifications
Product Overview
High-Performance Palletizing Solution
This fully-automatic four-axis palletizing robot is designed to optimize end-of-line packaging operations. It features a robust 160 kg loading capacity, making it suitable for handling bags, cartons, bottles, and cans with precision. The system integrates seamlessly with group organizing, pallet storing, and conveying equipment to provide a complete, automated material handling solution.
Technical Specifications
- Loading Capacity
- 160 kg
- Throughput Capacity
- 22.5 cartons/min
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
- Noise Level
- 75 dB
Utility Requirements
- Power Supply
- 380V AC 50Hz
- Power Consumption
- 10 kW
- Pneumatic Pressure
- 0.5 - 0.6 MPa
- Air Consumption
- 45 NM3/Hour
System Features
System Components
- Group organizing machine
- Bag/carton pushing machine
- Palletizing robot
- Pallet storing machine
- Empty pallet conveyor
- Ready pallet conveyor
- Control System
- PLCTouch Screen InterfacePneumatic System
