Foil Winding Machine for Transformer Coils
This foil winding machine is used for winding low-voltage coils in dry-type transformers and amorphous alloy coils. It ensures high accuracy and efficiency in foil material winding.
Technical Specifications
Overview
High-Precision Foil Winding

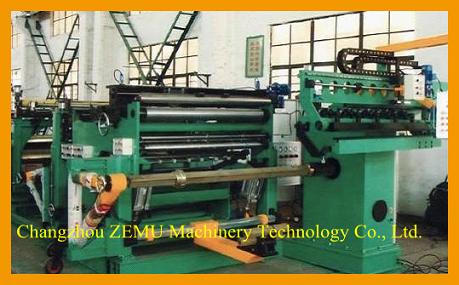

The ZBJ-1400 is a specialized machine designed for winding low-voltage coils in dry-type transformers and amorphous alloy coils. Featuring a robust winding system and precise tension control, it ensures consistent material alignment and structural integrity. This equipment integrates comprehensive modules, including decoiling, foil cutting, and PLC-controlled winding, to provide a complete solution for modern electrical component manufacturing.
Performance Metrics
Key Operational Metrics
22 KW
Motor Power
13,000 NM
Max Torque
20 RPM
Max Winding Speed
30 m/min
Max Foil Speed
Foil Specifications
Foil Material Handling
| Parameter | Range |
|---|---|
| Foil Width | 150mm - 1400mm |
| Foil Thickness | 0.5mm - 2mm |
| Inside Diameter | φ470mm - φ520mm |
| Max Outside Diameter | φ1000mm |
| Max Foil Weight | 2.5 T |
System Components
Integrated System Units
- Decoiling equipment
- Foil cutting device
- Layer insulation system
- Foil position detect and control system
- Edge insulation equipment
- Winding system
- Welding system
- PLC control system
Physical Dimensions
- Machine Dimensions
- 5400 x 3300 x 2000 mm
