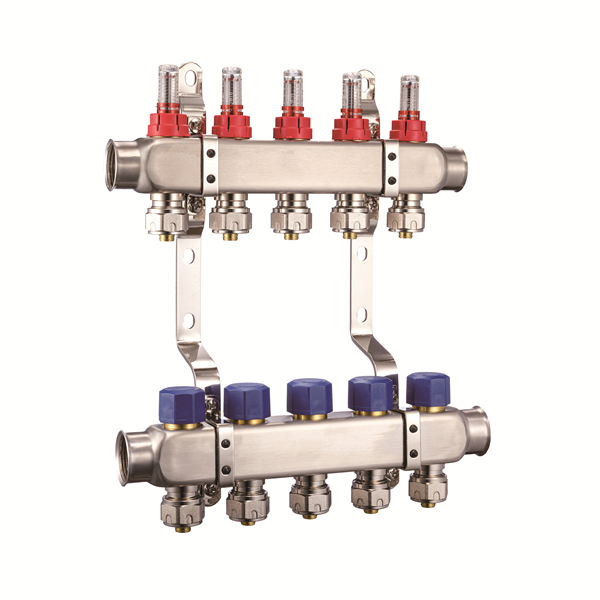

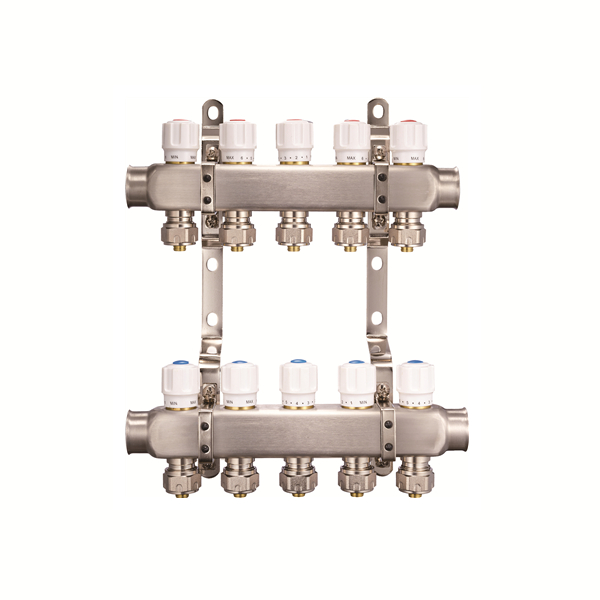

Floor Heating System Manifold
This floor heating system manifold is constructed from durable brass. It allows for precise temperature control in different zones by connecting individual heating loops.
Technical Specifications
Overview
Advanced Floor Heating Manifold

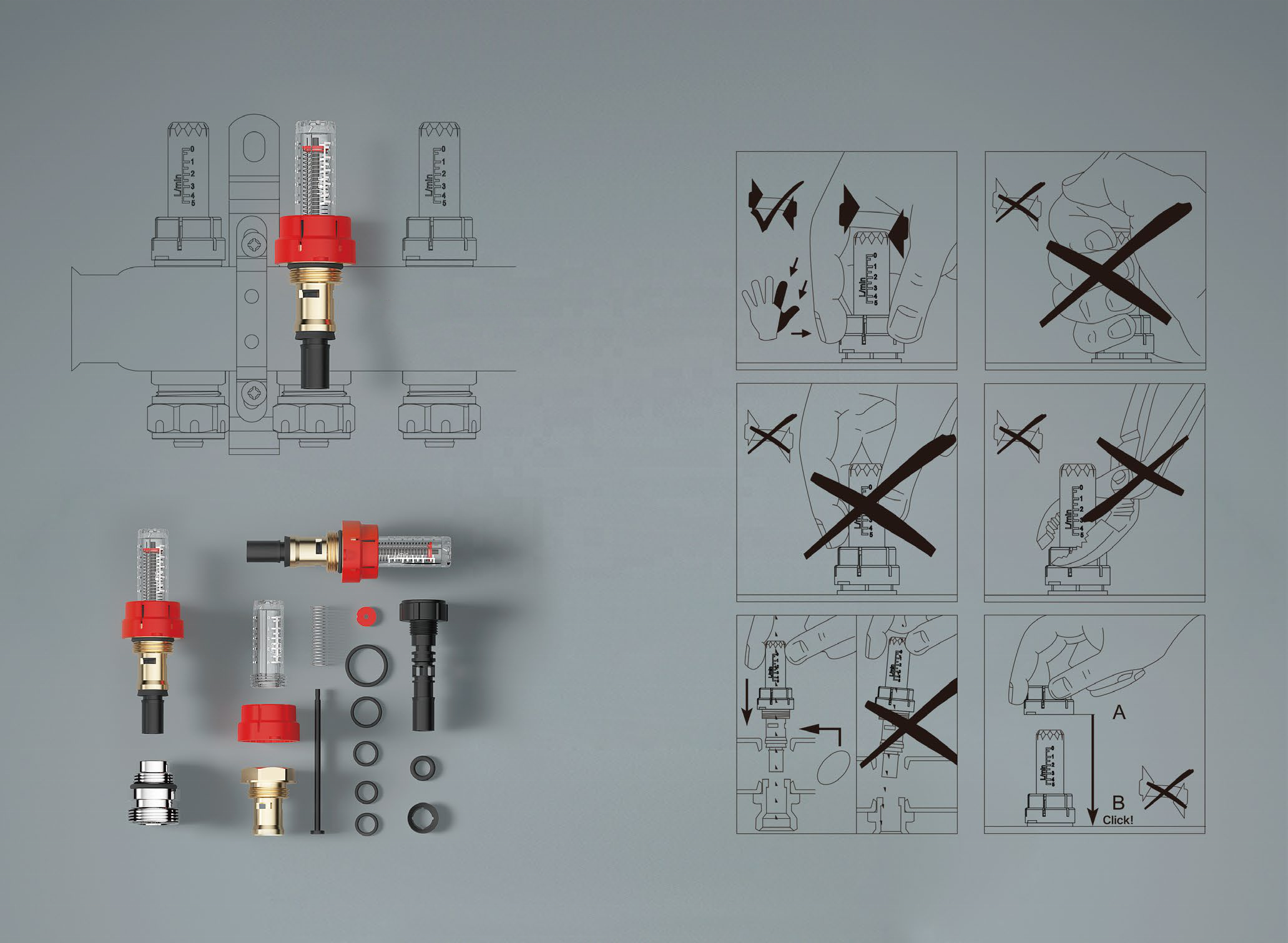

This high-performance manifold is engineered for efficient water distribution in underfloor heating systems. It features a specialized valve core design with high-temperature resistant silica gel anti-fouling sleeves, which effectively prevent dirt and sand from entering the mechanism to prolong service life. The system utilizes 304 stainless steel springs treated for anti-fatigue to ensure smooth, reliable opening and closing functions. Additionally, the integration of visually adjustable flow meters allows for precise hydraulic balancing across heating zones.
Technical Specifications

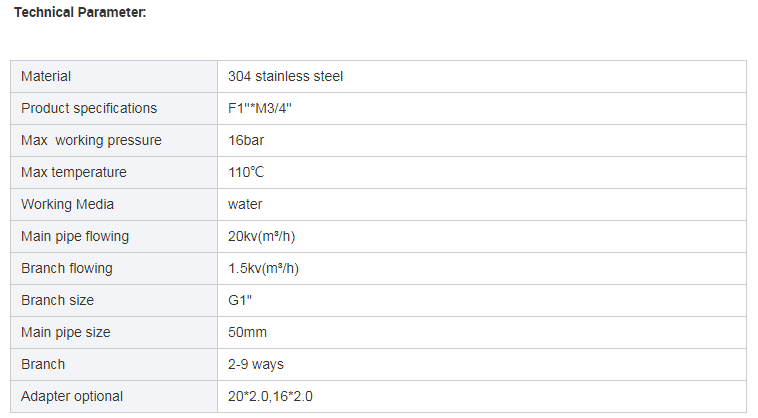

Technical Parameters
| Parameter | Value |
|---|---|
| Max Working Pressure | 16 bar |
| Max Temperature | 110 °C |
| Working Media | Water |
| Main Pipe Flowing | 20 kv(m³/h) |
| Branch Flowing | 1.5 kv(m³/h) |
| Branch Size | G1" |
| Main Pipe Size | 50 mm |
Optional Adapters
- 20*2.0
- 16*2.0

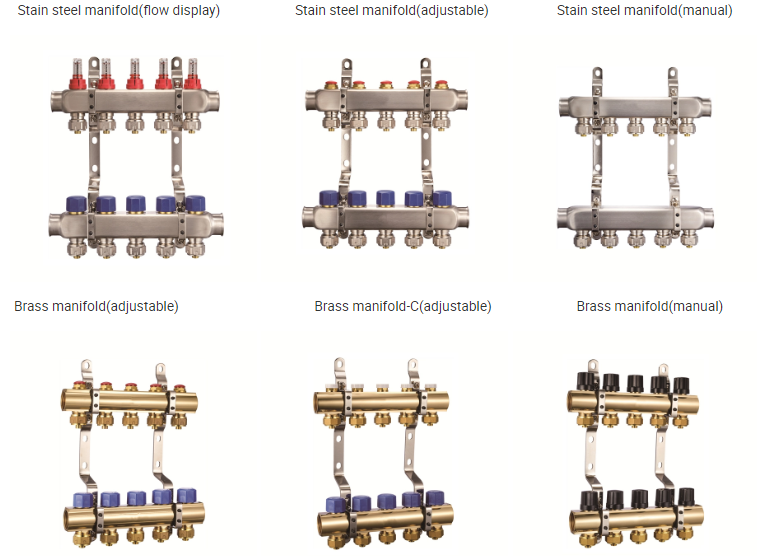

- Configuration Options
- 2-9 WaysAdjustable FlowManual ControlFlow Display
Features
Performance Highlights
16 bar
Max Pressure
110 °C
Max Temperature
General Information
Warranty & Support
2 Years WarrantyOnline Technical Support
- Application & Design
- Modern design suitable for villa and residential floor heating applications.
