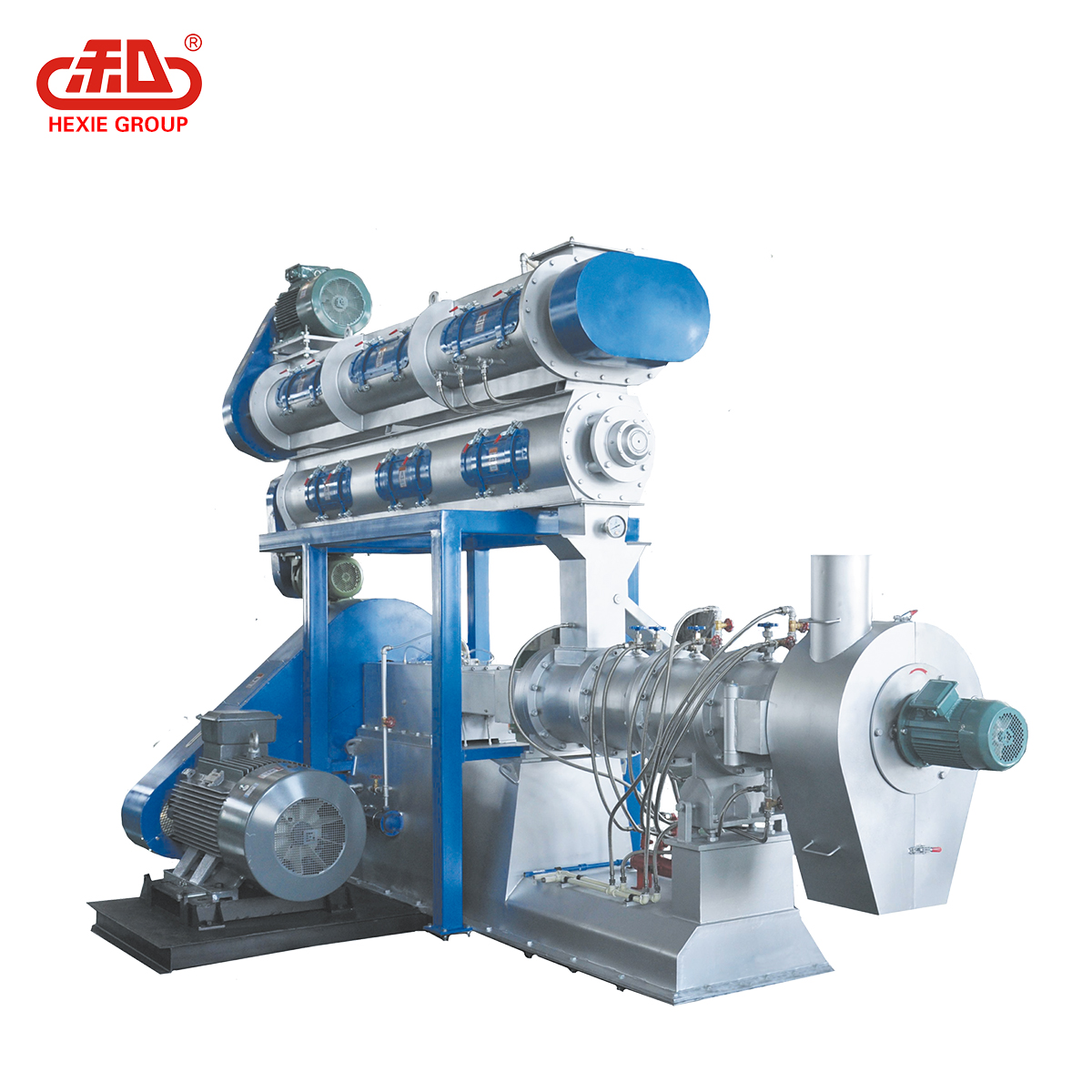

Floating Fish Feed Extruder
This single-screw extruder is used for food and livestock feed puffing. It can also be used to pre-condition raw materials for vegetable fat and wine production.
Technical Specifications
Overview
Versatile Single Screw Extrusion Technology
The 9PK Series Single Screw Extruder is a versatile solution designed for food puffing and the production of high-quality livestock, poultry, and aquatic feed. Utilizing a dry puffing process with a self-heating method, it eliminates the need for complex steam systems, making it highly efficient for various operational needs. Its modular design and adjustable suspension system ensure ease of maintenance and consistent performance for professional feed production.
Key Features
Screw Design
- Modular structure with customizable single and double threads
- Split screw design for quick recovery after blockages
- Easy dismounting and maintenance
Puffing Process
Dry PuffingSelf-HeatingNo Steam Required
- Alignment & Maintenance
- Adjustable suspension system allows opening and reassembling without loss of alignment.
Applications
- Primary Applications
- Food PuffingLivestock FeedPoultry FeedAquatic FeedVegetable Fat Pre-conditioningDrinking Wine Raw Materials

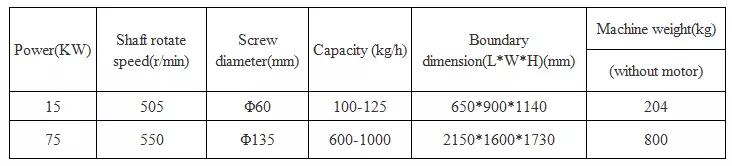

Technical Specifications
Model Performance Data
| Power (KW) | Shaft Speed (r/min) | Screw Diameter (mm) | Capacity (kg/h) | Dimensions L*W*H (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 15 | 505 | Φ60 | 100-125 | 650*900*1140 | 204 |
| 75 | 550 | Φ135 | 600-1000 | 2150*1600*1730 | 800 |
Maximum Capacity
1,000 kg/h
Max Throughput
Components
Integrated Components
- Conditioner and Conditioner Motor
- Main Motor
- Cutter Motor and Cutter Device
- Observation Door
- Feeding Mouth
- Expanded Cavity
- Sturdy Pedestal
