Technical Specifications
Product Overview

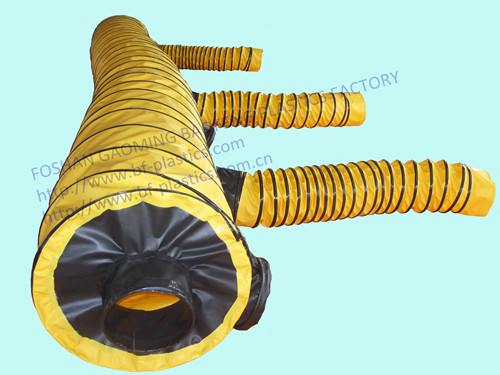

Flexible PVC Ventilation Ducting System
This professional-grade ventilation duct set is engineered for efficient air distribution in confined spaces such as industrial work sites, cabins, and warehouses. Constructed from fire-resistant, durable PVC laminated fabric and supported by helix steel wire, the system is designed to connect seamlessly with air heaters, coolers, or industrial fans. The modular design, featuring a main duct with multiple distribution branches, allows for flexible and customizable airflow configurations to meet specific site requirements.
Technical Specifications
- Main Duct Diameter
- 710 mm
- Distribution Duct Diameter
- 300 mm
- Max Temperature Resistance
- 150 °
- Material Characteristics
- Fire-resistantAcid-resistantAlkali-resistantWear-and-tear proof
Design & Features
Available Colors
YellowOrange
- Hanging Configuration
- 3 rings every 1 meter (positioned at 9, 12, and 3 o'clock)
- Outlet Configuration
- 7 to 8 outlets on main duct; includes 3-4 covers for unused outlets
Logistics & Ordering
Customization
- OEM Service available
- Custom sizes available upon request
- Small test orders accepted
- Minimum Order Quantity
- 50
- Payment Terms
- 50% deposit, 50% balance before shipment
