Technical Specifications
Product Overview
High-Performance Flexible Ventilation

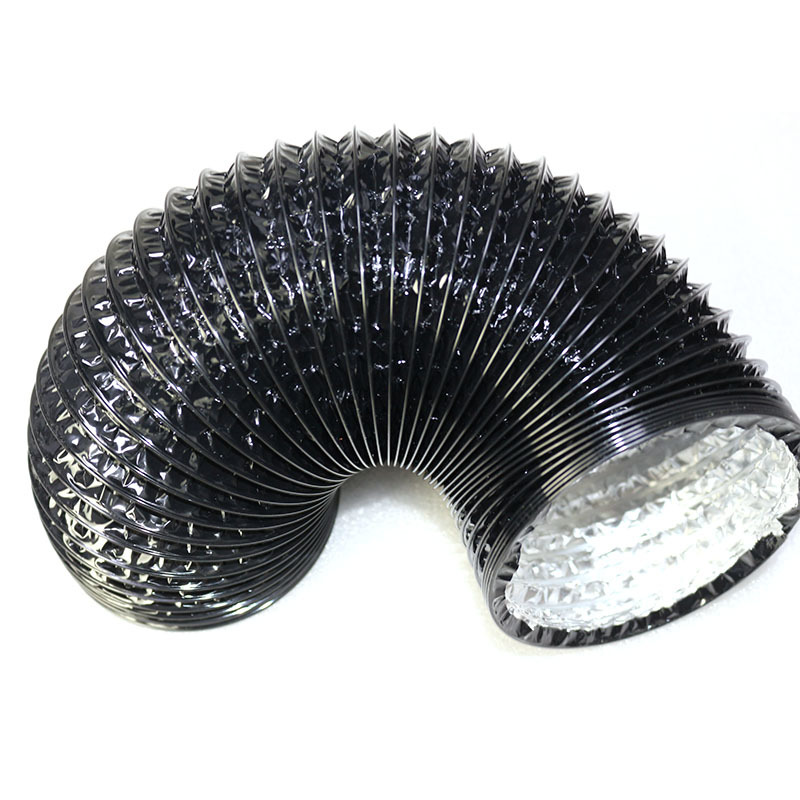

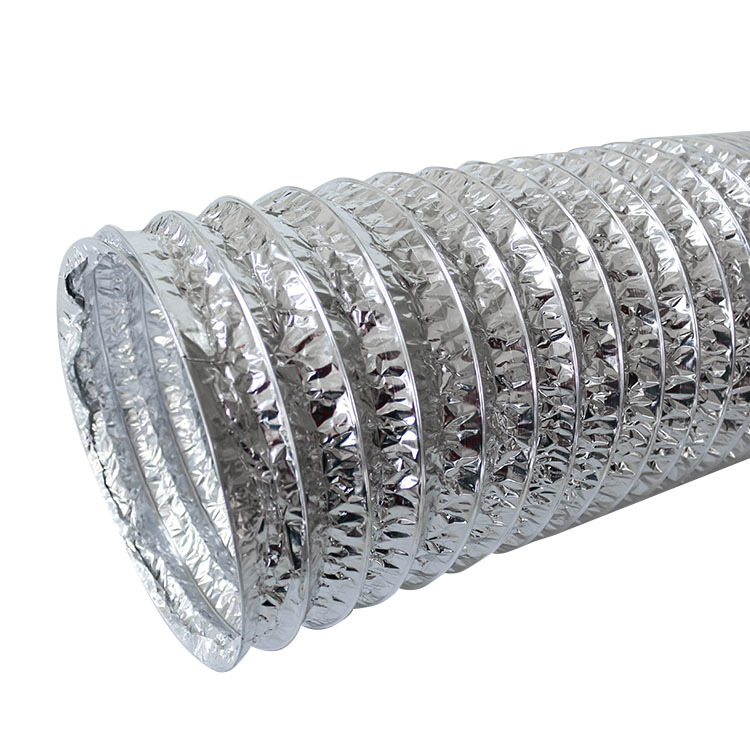

This flexible aluminum ventilation duct is engineered for reliability and versatility across a wide range of residential and commercial HVAC applications. Featuring a durable construction of aluminum and polyester layers, it offers excellent heat resistance and efficient airflow management. Designed to handle demanding environments, it is an ideal solution for range hoods, dryer vents, and comprehensive air conditioning systems.
Technical Specifications
Material Composition
- 1 layer aluminum
- 1 layer polyester
Fire Resistance
Limited combustibility
- Duct Thickness
- 25-27 micron
- Temperature Range
- -30°C to +150°C
Performance Metrics
Operating Pressure
3,000 Pa
Operating Pressure
- Maximum Air Velocity
- 30 m/s
Dimensions and Availability
- Available Diameters
- 50-750mm (2"-30")
- Standard Lengths
- 5m6m7.5m10m
- Available Colors
- SilverBlackGold
Applications
Recommended Applications
- Range hoods
- Laundries
- Dryer vents
- Toilets & Bathrooms
- Heating systems
- Ventilation & AC systems
- Water heaters
- Air exhausting
