Technical Specifications
Product Overview

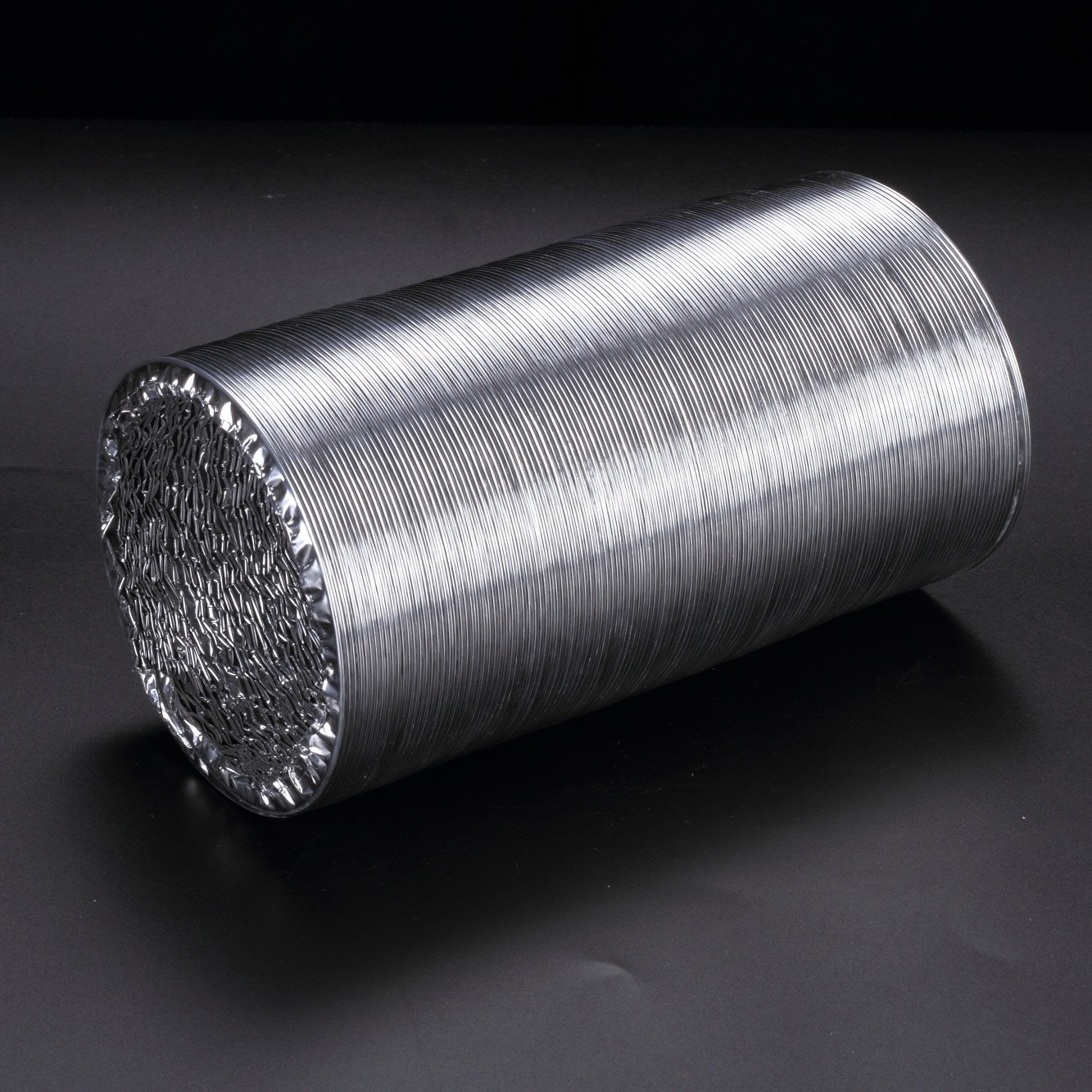

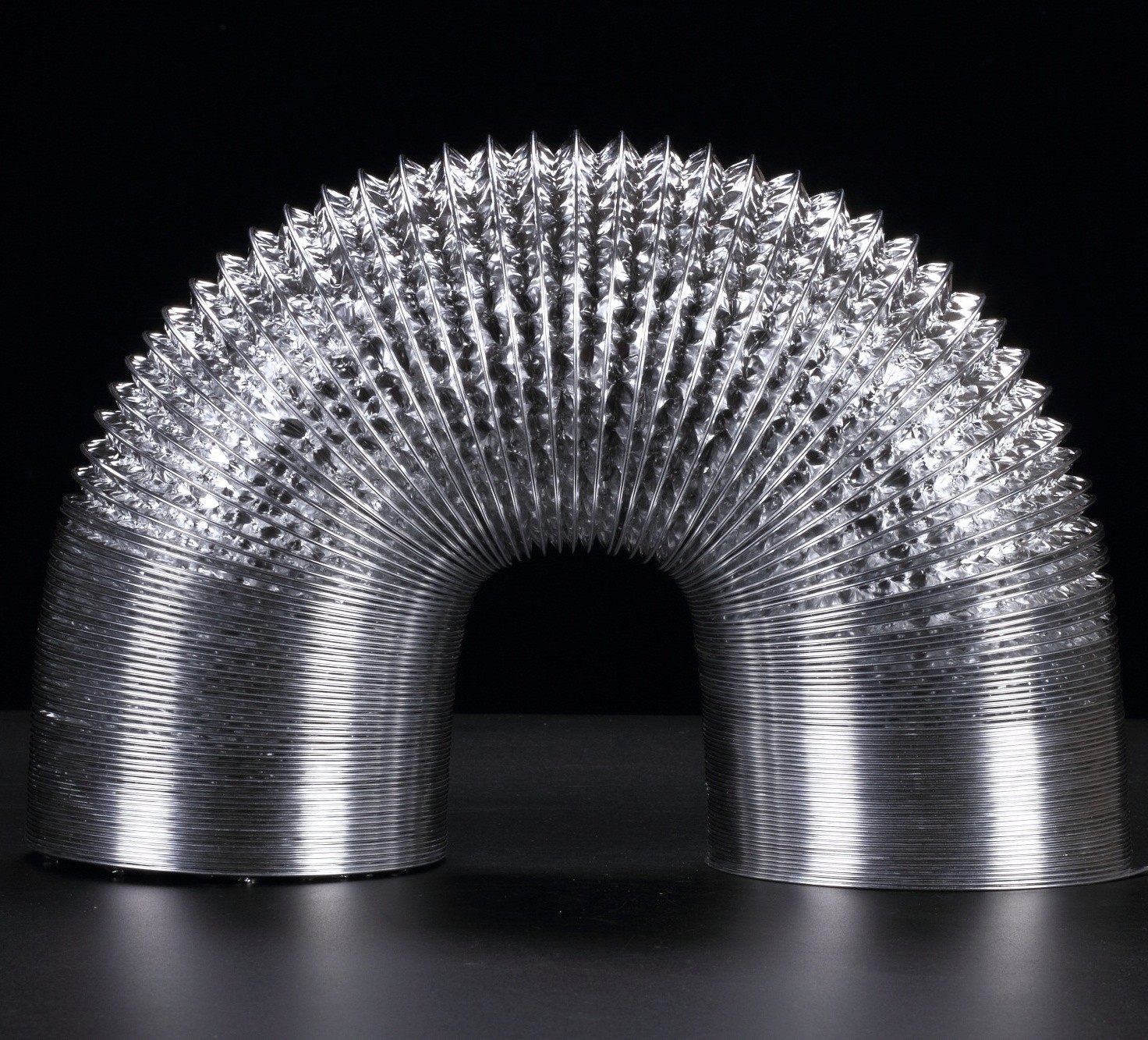

Flexible Aluminium Ducting
This flexible aluminium ducting is engineered for high-performance ventilation and air conditioning systems. Constructed from durable aluminium foil reinforced with a high-tensile steel wire helix, it offers excellent flexibility for installation in confined spaces while maintaining structural integrity. Designed to withstand corrosive environments and high temperatures, it is an ideal solution for HVAC, exhaust, and air distribution requirements across residential, commercial, and industrial applications.
Technical Specifications
- Materials
- Aluminium FoilPETSteel Wire Helix
- Wall Thickness
- 0.02mm - 0.025mm
- Inner Diameter Range
- 2" - 24" (52mm - 609mm)
- Standard Length
- 10 m
Performance Metrics
Performance Overview
150 ℃
Max Temperature
30 m/s
Max Air Velocity
2,500 pa
Operating Pressure
Fire Resistance
Fire Retardant
Applications
Typical Use Cases
- HVAC Systems
- Air Distribution
- Exhaust Systems
- Dust Extraction
- Fume Extraction
- Heat Ventilation
