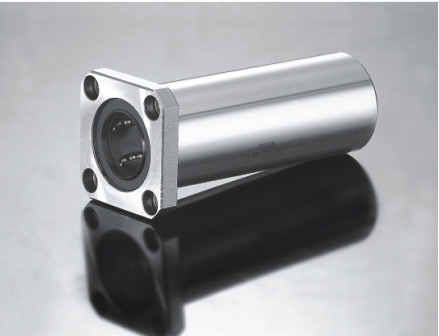

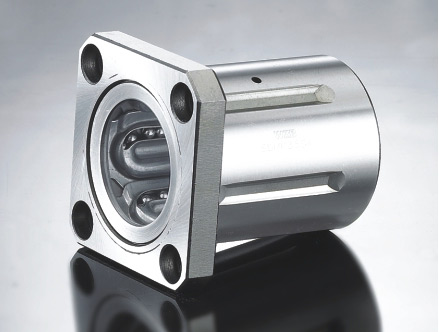

Flanged Linear Motion Bearing
This linear bearing is designed for smooth and accurate linear motion. It features a flanged housing for easy mounting and secure attachment.
Technical Specifications
Product Overview
Precision Linear Motion Solutions
These high-precision linear bearings are engineered for smooth, accurate linear motion in demanding industrial environments. Featuring robust housing designs with integrated recirculating ball bearings, they offer low friction and high load capacity, making them ideal for CNC machines, 3D printers, and automated assembly systems. The flanged configurations allow for secure, easy mounting, ensuring reliable performance and extended service life across a wide range of mechanical applications.
Series Availability
- Supported Series
- LM SeriesLM Open SeriesLB SeriesKH TypeSteel CageSDM SeriesFlange Type (LMF/LMK/LMT)Linear Slide UnitsShaft Supports (SK/SHF)LME SeriesLMB Series

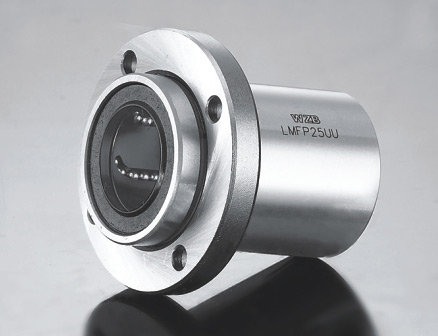

Flange Type Options
Flange Configuration Matrix
| Type | Size Range |
|---|---|
| LMF Series | 6mm - 100mm |
| LMK Series | 6mm - 100mm |
| LMT Series | 6mm - 30mm |
Linear Slide Units
Slide Unit Variations
- Close Type (Normal, Long, Short)
- Open Type (Normal, Long)
- TBR Series (Flanged Pillow Block)
Shaft Support Components
Support Types
SK SeriesSHF Series
