Technical Specifications
Product Overview

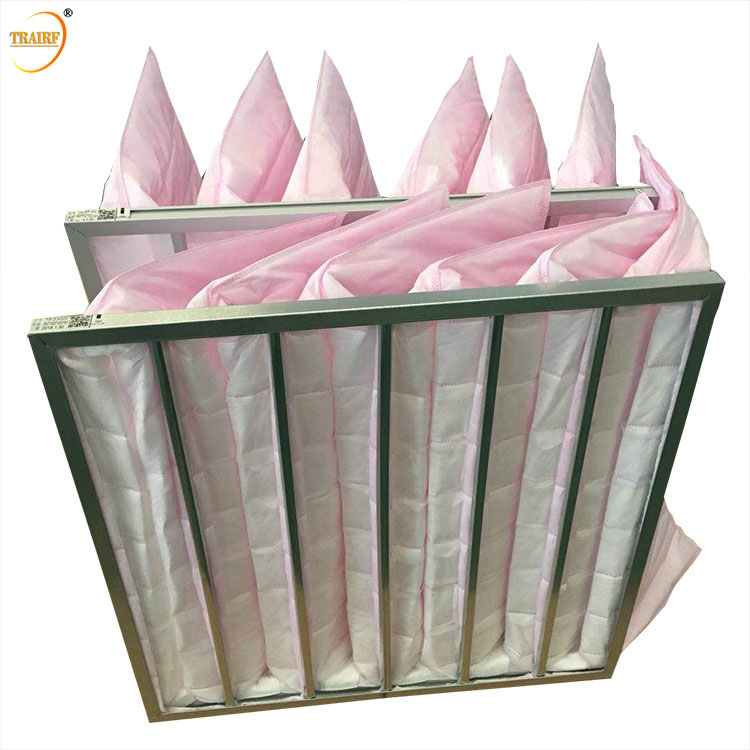

Industrial F7 Pocket Air Filter
This washable bag air filter is engineered for industrial clean environments and building air conditioning systems. Featuring a high-efficiency pocket design, it offers low resistance and large air flow while maintaining a high dust-holding capacity for an extended service life. The durable construction utilizes stainless steel, aluminum alloy, or galvanized plates, ensuring reliable performance in demanding conditions.
Key Advantages
Benefits
- Low resistance with large air flow
- High dust holding capacity
- Extended service life
- Washable filter media for cost-effectiveness
Technical Specifications
- Maximum Operating Temperature
- 80 °C
- Maximum Humidity
- 80 %
- Frame Materials
- Stainless SteelAluminum AlloyGalvanized Plate
- Filter Media
- Filter Cotton
Performance Data
Model Specifications
| Model | Dimensions (mm) | Airflow (m³/h) | Pockets |
|---|---|---|---|
| TR-ZXD-Z1 | 495*295*500 | 1,000 | 5 |
| TR-ZXD-Z2 | 495*495*500 | 1,800 | 5 |
| TR-ZXD-Z3 | 595*295*500 | 1,300 | 6 |
| TR-ZXD-Z4 | 595*595*500 | 2,200 | 6 |
| TR-ZXD-Z5 | 495*295*600 | 2,600 | 8 |
| TR-ZXD-Z6 | 495*495*600 | 1,200 | 5 |
| TR-ZXD-Z7 | 495*295*600 | 2,200 | 5 |
| TR-ZXD-Z8 | 595*295*600 | 1,600 | 6 |
| TR-ZXD-Z9 | 595*495*600 | 2,700 | 6 |
| TR-ZXD-Z10 | 595*595*600 | 3,200 | 8 |
