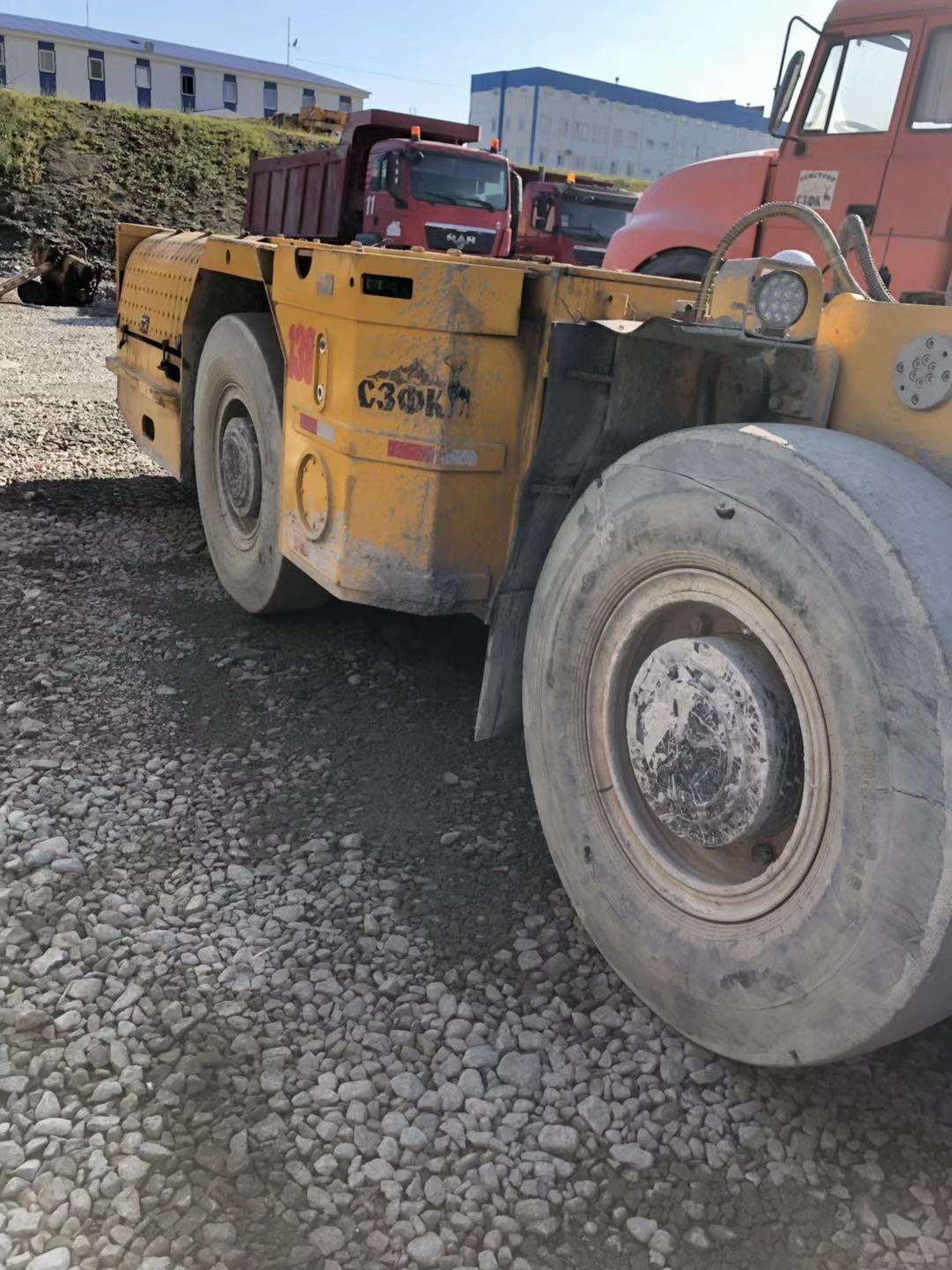

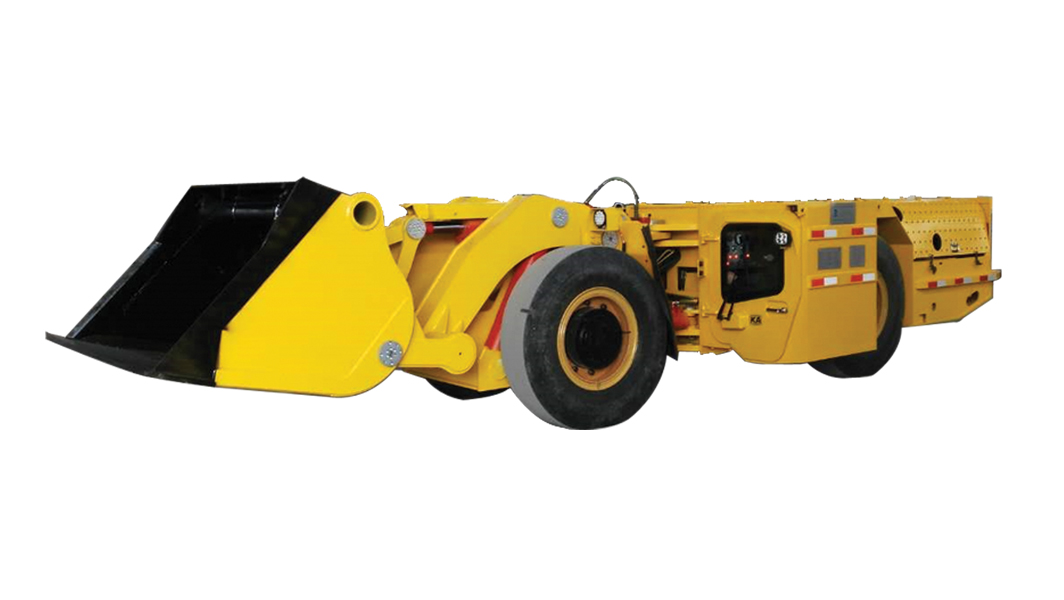

Extra Low Profile Underground Wheel Loader
This extra low profile wheel loader is suitable for tunnel sections below 2m*2m. It offers exceptional maneuverability and loading capacity for efficient material handling in confined mining environments.
Technical Specifications
Product Overview
Extra Low Profile Underground Loader
Designed for high-efficiency material handling in confined underground mining environments, this extra low profile wheel loader is engineered for tunnel sections as small as 2m x 2m. It features a robust 4-metric-ton loading capacity and high-torque diesel performance to ensure maximum productivity in narrow spaces. Built with premium imported components and a wear-resistant bucket, it offers reliable operation and long-term durability in harsh, space-constrained mining applications.
Performance Metrics
Operational Capabilities
4,000 kg
Loading Capacity
2 m3
Bucket Volume
110 kN
Max Shovel Force
1,646 mm
Dumping Height
Technical Specifications
Physical Dimensions
| Dimension | Value (mm) |
|---|---|
| Length | 8,300 |
| Width | 2,450 |
| Height | 1,500 |
| Inner Turning Radius | 2,495 |
| Outer Turning Radius | 5,700 |
Traveling Speeds
| Gear | Speed (km/h) |
|---|---|
| Gear I | 0~3.7 |
| Gear II | 0~7.7 |
| Gear III | 0~13.4 |
| Gear IV | 0~23.1 |
Compliance & Quality
- Standards & Certifications
- CEQS9001CA
