Energy Efficient Electric Water Heater
This electric water heater offers energy efficiency with reduced power consumption. Its durable construction includes a multi-layered tank and a high-impact resistant body.
![[copy]2022 new design water heater CU - Image 1](https://cdn.merheinflare.com/public-site/products/copy2022-new-design-water-heater-cu/0.jpg)
Technical Specifications
Product Overview
Energy-Efficient Electric Water Heating Solution
This advanced electric water heater is designed for superior energy savings, consuming 20% less power than standard 5-star BEE requirements. It features a high-impact ABS body and a specialized quadro-layer enameled SPCC tank for extended service life. With flexible installation options for above or under-sink placement and optional smart WIFI connectivity, it provides a versatile solution for modern water heating needs.
Core Performance
Key Performance Metrics
0.8 MPa
Rated Pressure
75 ℃
Max Temperature
20 %
Energy Saving vs BEE
Electrical Specifications
Power Rating Options
- 500W
- 1000W
- 1500W
- 2000W
- 2500W
- Rated Voltage
- 220-240V~110-120V~
- Rated Frequency
- 50/60Hz

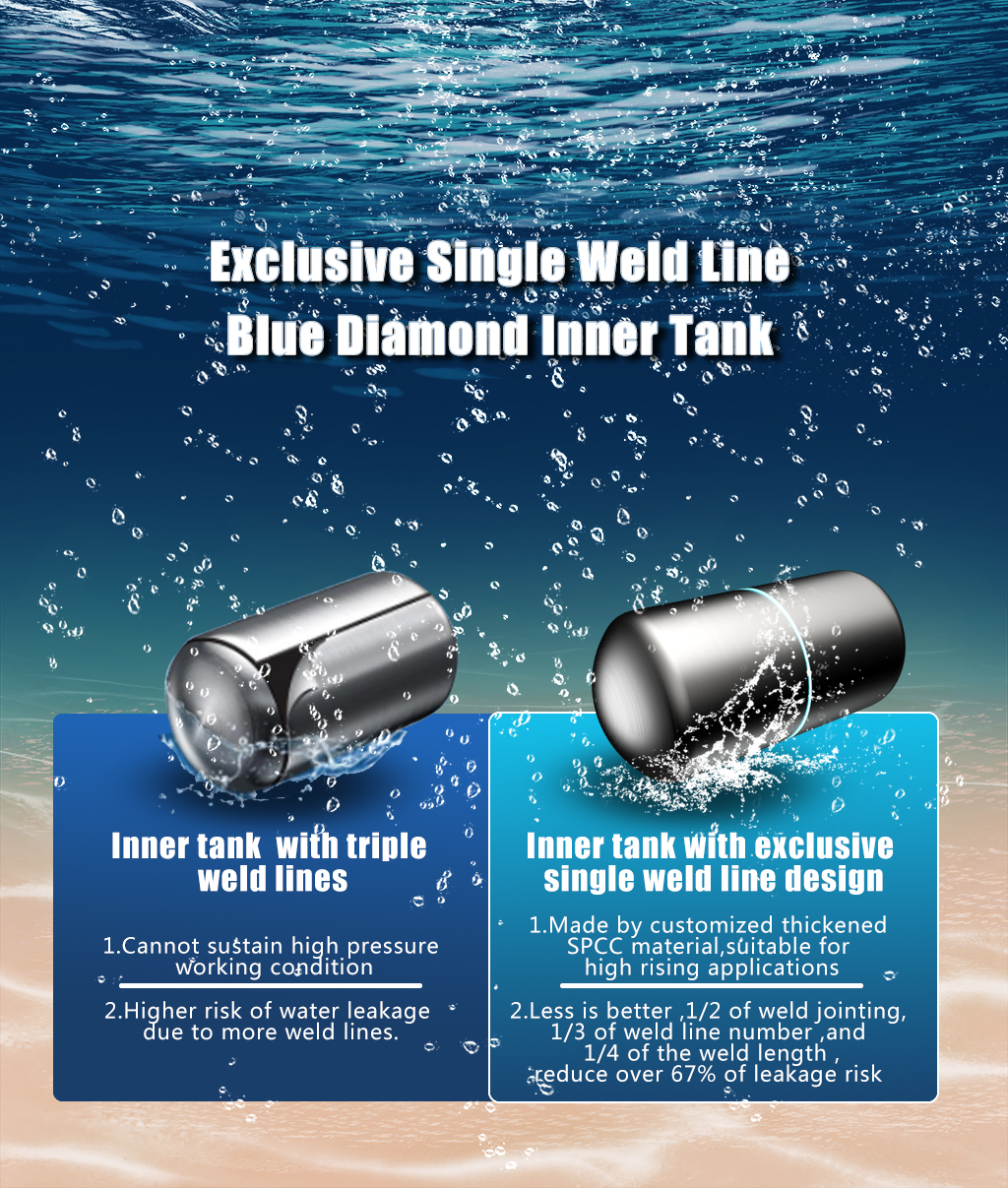

Tank Construction
Tank Design Features
| Feature | Specification |
|---|---|
| Material | Quadro-layer enameled SPCC |
| Weld Design | Exclusive Single Weld Line |
| Leakage Risk Reduction | Over 67% compared to triple weld lines |
| Durability | Suitable for high-rising applications |

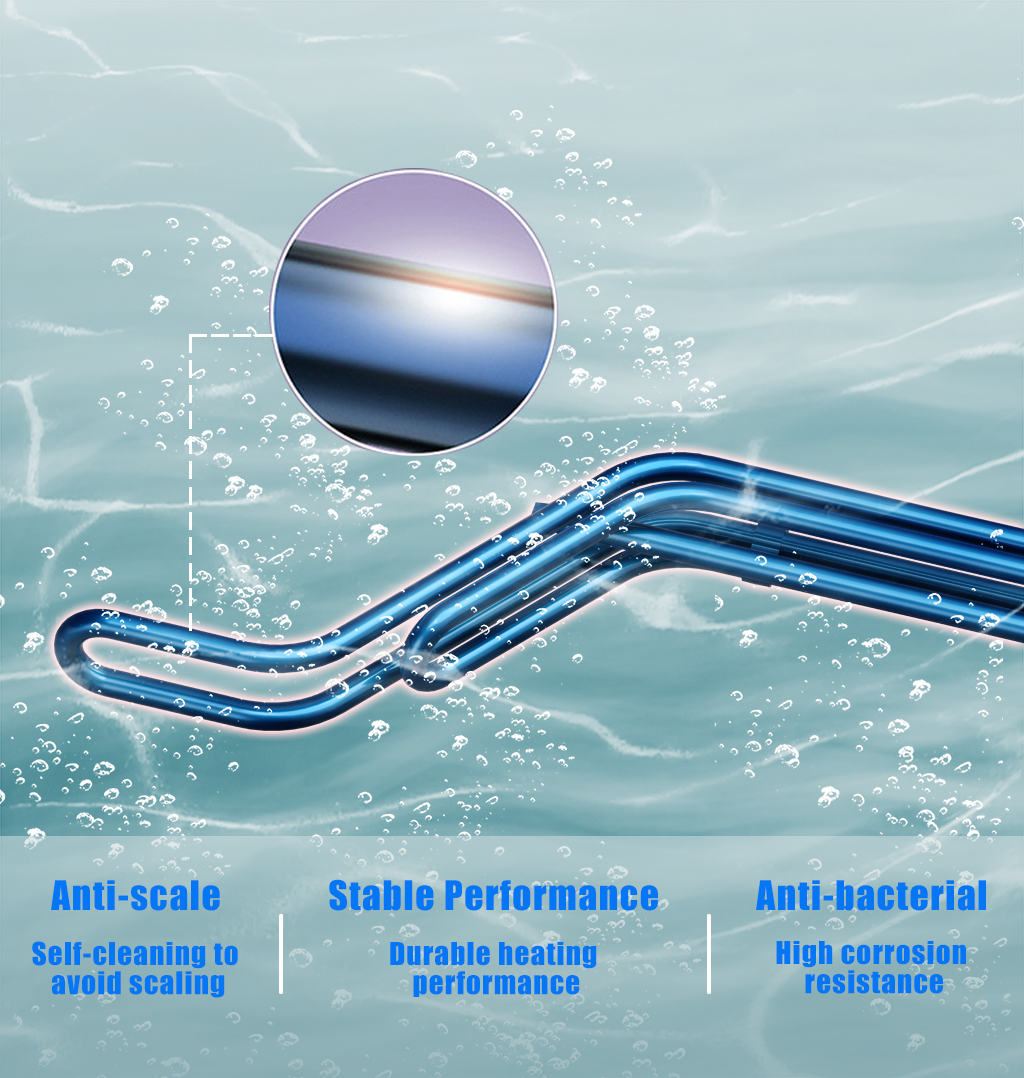

Heating Element
Heating Element Benefits
Anti-scaleSelf-cleaningAnti-bacterialHigh Corrosion Resistance
Design & Features
Functional Features
- High impact resistant ABS body
- Under or above sink installation available
- Optional WIFI function
- H/R Light available
- Multiple colour options for outer shell and service panel
Protection & Standards
- Waterproof Rating
- IPX4
- Environmental Protection
- New generation material for better environmental performance
